NoteAction
xx2100002702

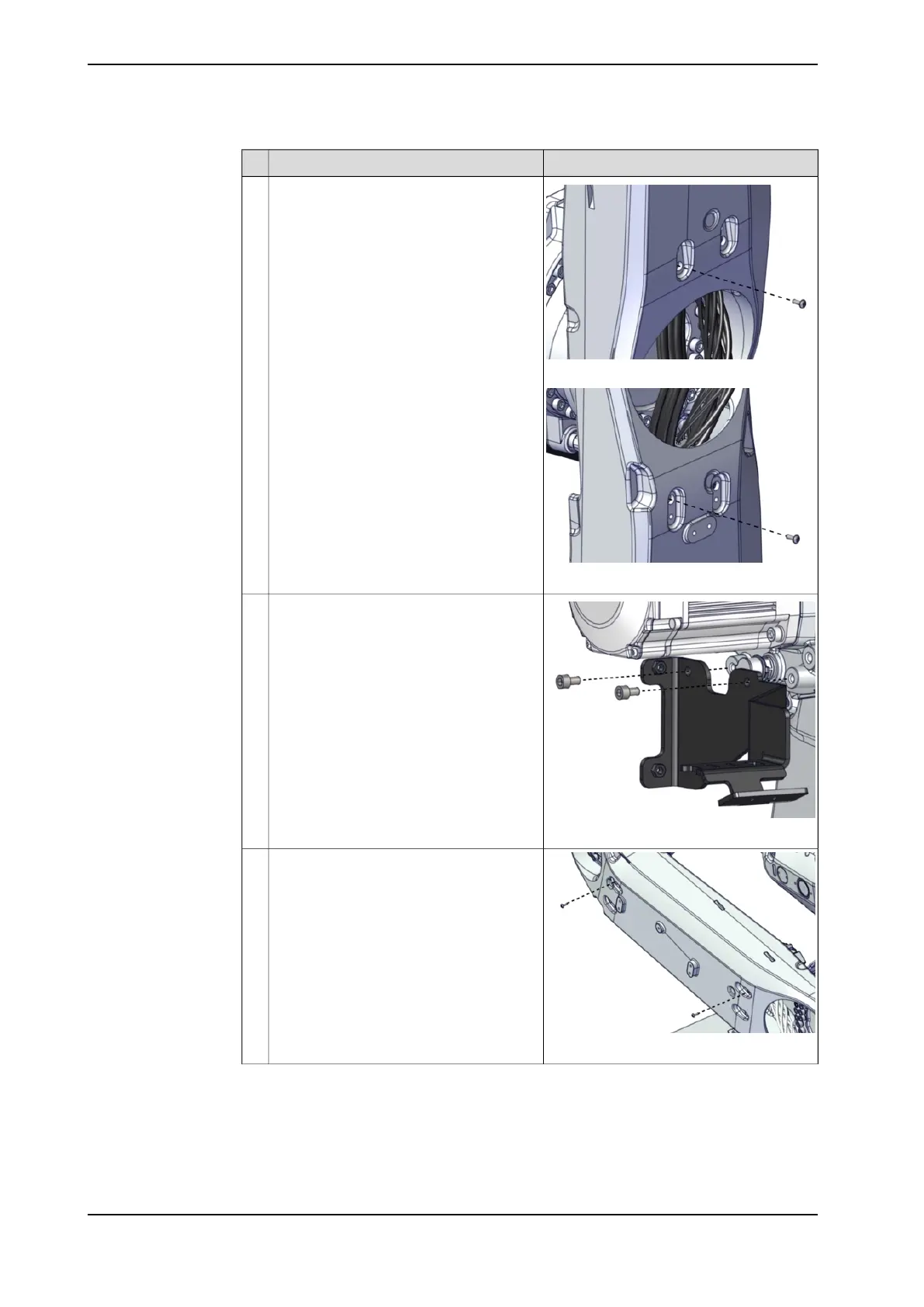

If robot is equipped with DressPack:
Remove the cable brackets inside the lower
arm, by removing the attachment screws.
1
xx2100002701
xx2300001036
If robot is equipped with DressPack:
Remove the mounting plate from the arm
house.
2
xx2100001104
Unscrew the attachment screws that secure
the axis-2 lower arm metal clamp and the
axis-3 lower arm metal clamp located on
the inside of the lower arm by removing the
attachment screws.
3
Continues on next page
488 Product manual - IRB 6710
3HAC085695-001 Revision: A
© Copyright 2023 ABB. All rights reserved.
5 Repair
5.8.2 Replacing the axis-2 gearbox
