2 Installation and commissioning
2.5.1. Lifting robot with fork lift
753HAC022033-001 Revision: K
© Copyright 2004-2011 ABB. All rights reserved.

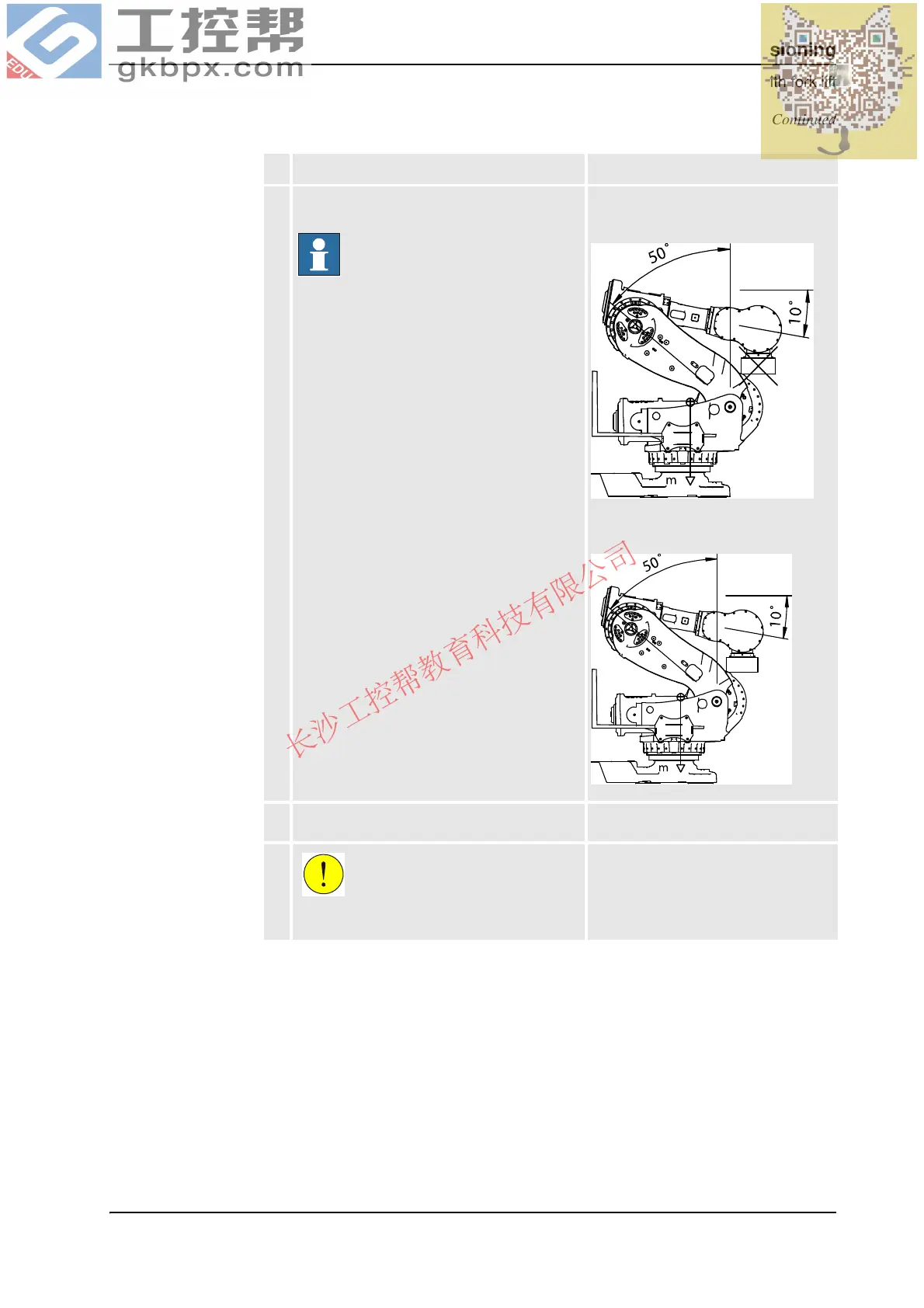

2. Position the robot as shown in the figure to the
right!
NOTE!
No load is permitted on the robot if the fork lift
set 3HAC0604-2 is used!
Release the brakes if required as
detailed in section Manually releasing
the brakes on page 83.
xx0200000079
When using fork lift set 3HAC0604-2,
no load is permitted on the robot!
xx0200000387
3. Fit the two spacers to the robot and secure. Attachment points are shown in figure
Attachment points on robot on page 72.
4.
CAUTION!
The fork lift pocket weighs 60 kg!
Action Note
Continued
