ABB NGC8206 - Figure 3-49 Thermostat Assembly Installed; Figure 3-50 Regulator and Filter;Drain Assembly Installed

Page 3–48
2101510 Rev. AG

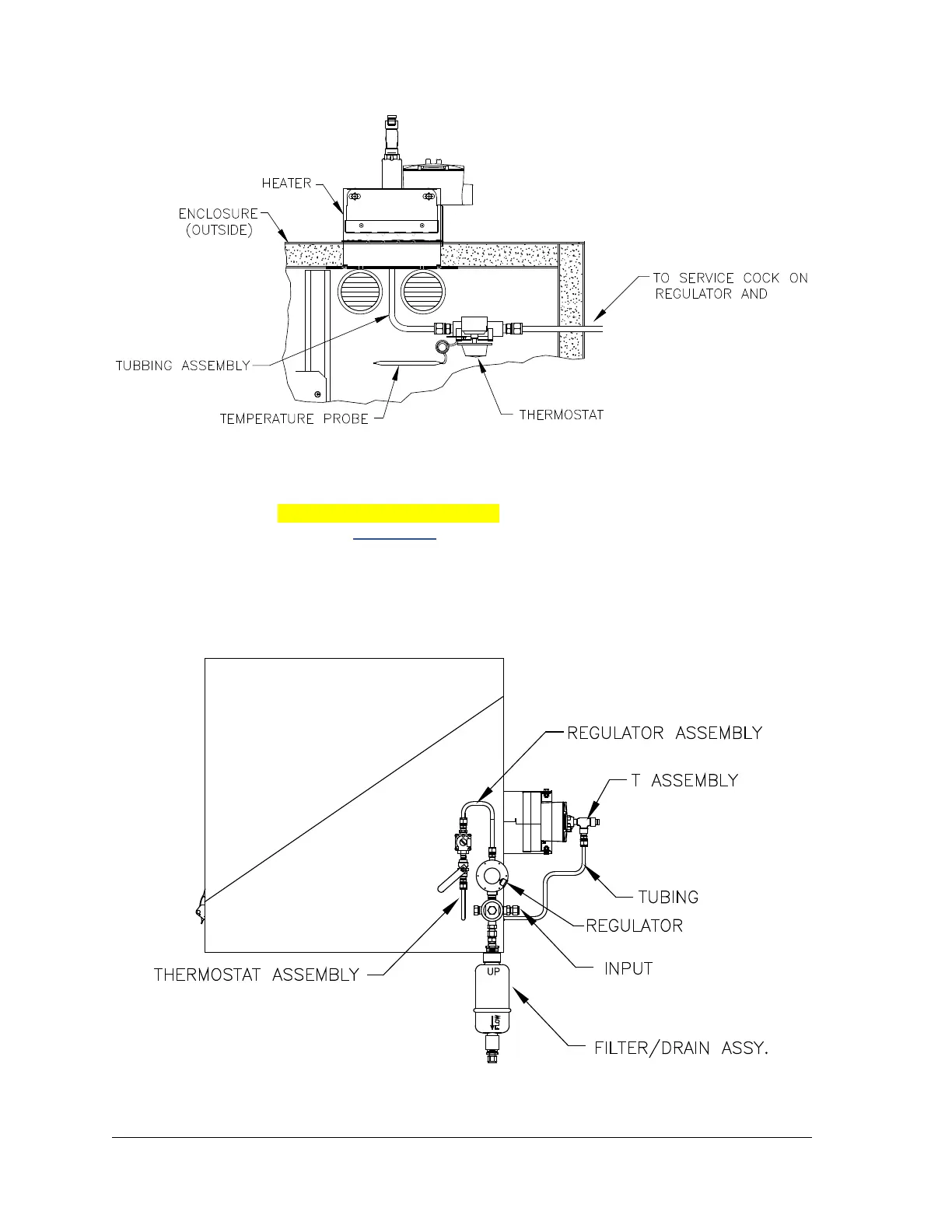

Figure 3-49 Thermostat Assembly Installed
5) Screw the threaded end of the T assembly into the ¼” female fitting located on
the factory-installed Catalytic heater, by turning the entire assembly clockwise
until tight (see
Figure 3-50).
6) Remove ferrules and nut from the bottom of the T assembly. Apply Teflon
®
tape
to threads.
7) Insert the short bent end of the 3/8” tubing closest to the longest straight portion
of the tubing through the hole located below the catalytic heater.
Figure 3-50 Regulator and Filter/Drain Assembly Installed
FILTER/DRAIN ASSEMBLIES
