ABB NGC8206 - Figure 3-79 24 VDC Battery Pack;Solar Panel Wiring Instructions

Page 3–76
2101510 Rev. AG

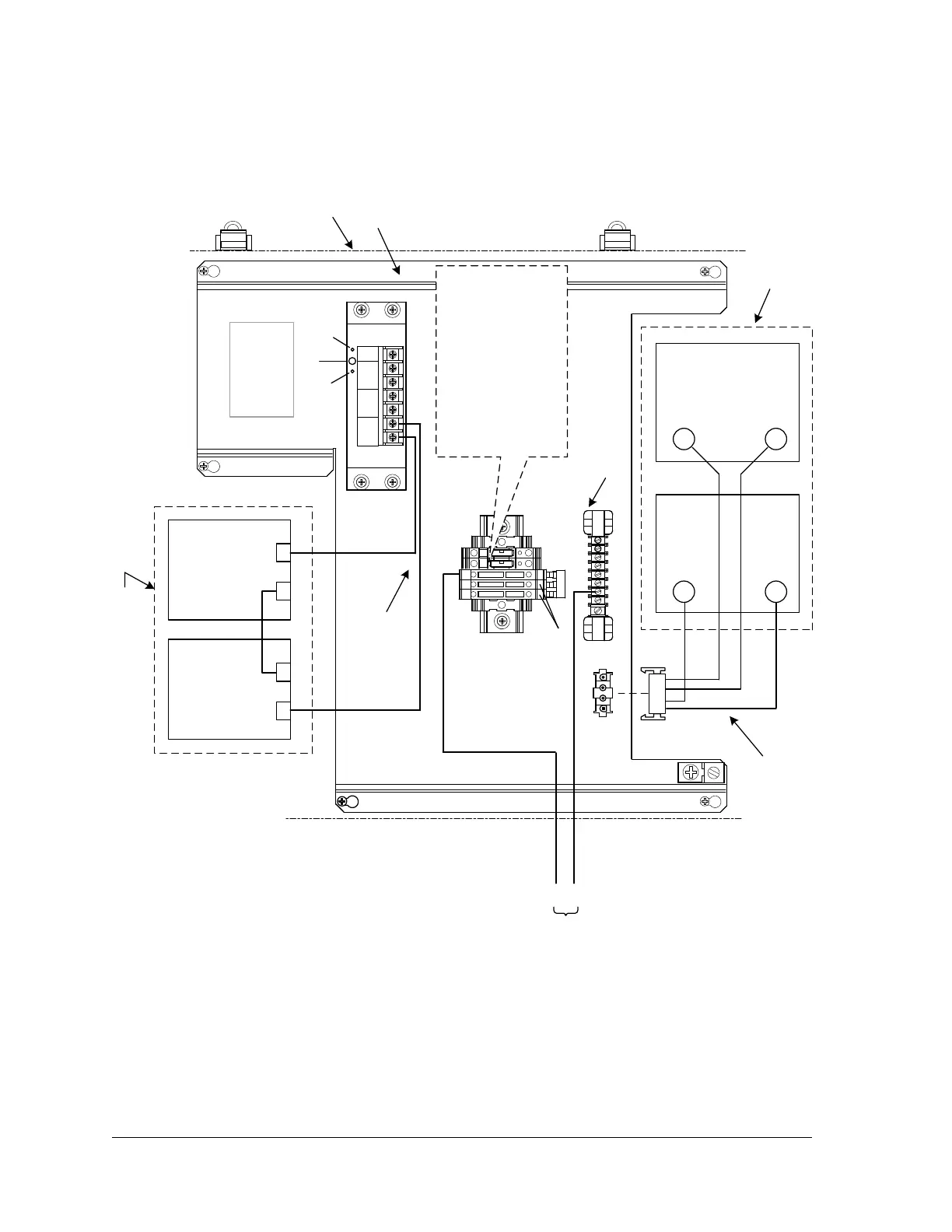

Figure 3-79 24 VDC Battery Pack/Solar Panel Wiring Instructions
Bus Bar
(-)
(+)
Spares
Solar Panel Solar Panel
1234 6 5
-
+
-
+ +
-
Solar Battery
Load
Charging
Load
Disconnect
Temp
Sensor
+
-
+
-
Solar Panel Assy; 24V
J1
1 4
1
2
1
2
2
1
2
2
1
(+)
24VOLT
SOLAR
ONLY
(-) SEE NOTE 2
Dual 110AH Battery Kit
P/N 2104054-002
24V Solar Power
Charger Assy
P/N 2104006-002
6870 Enclosure
P1
(+)
(-)
(+)
(-)
(+) RED (+) RED
(-) BLK (-) BLK
1 2 3 4
Cable
P/N 2018359-008
To NGC
(Supplied by
customer)
Solar Kit Cable
P/N 2018209
Fuse Block
TB5, Spare 1Amp max TB4, Spare 1Amp max TB3, NGC 5Amp max TB2, Load 10Amp max TB1, Batt 1 15Amp max
