2.3.1 NGC8206 Standard Hardware Features
The Totalflow
®
NGC (Natural Gas Chromatograph) features a rugged, field ready
design. Installation, startup and troubleshooting times have been greatly reduced
due to these user-friendly hardware features:
• Enclosure – compact design
 Cast aluminum housing with six exterior hubs
 Powder coating
 Weatherproof construction
• Modular design (See Figure 2-3
)
 Digital controller assembly
 Analytical module with compact design and single bolt replacement
 Feed-through assembly with flame path arrestors
 Termination panel
• State-of-the-art electronics
 32-bit digital controlling electronics (no analog control loops)
 Low power operation
 Dual digital carrier pressure regulation
 Digital temperature control
 Digital detector electronics
 Low EMI/RFI Design
 Operates on Windows CE
• Auto-start with diagnostics
• Factory calibrated

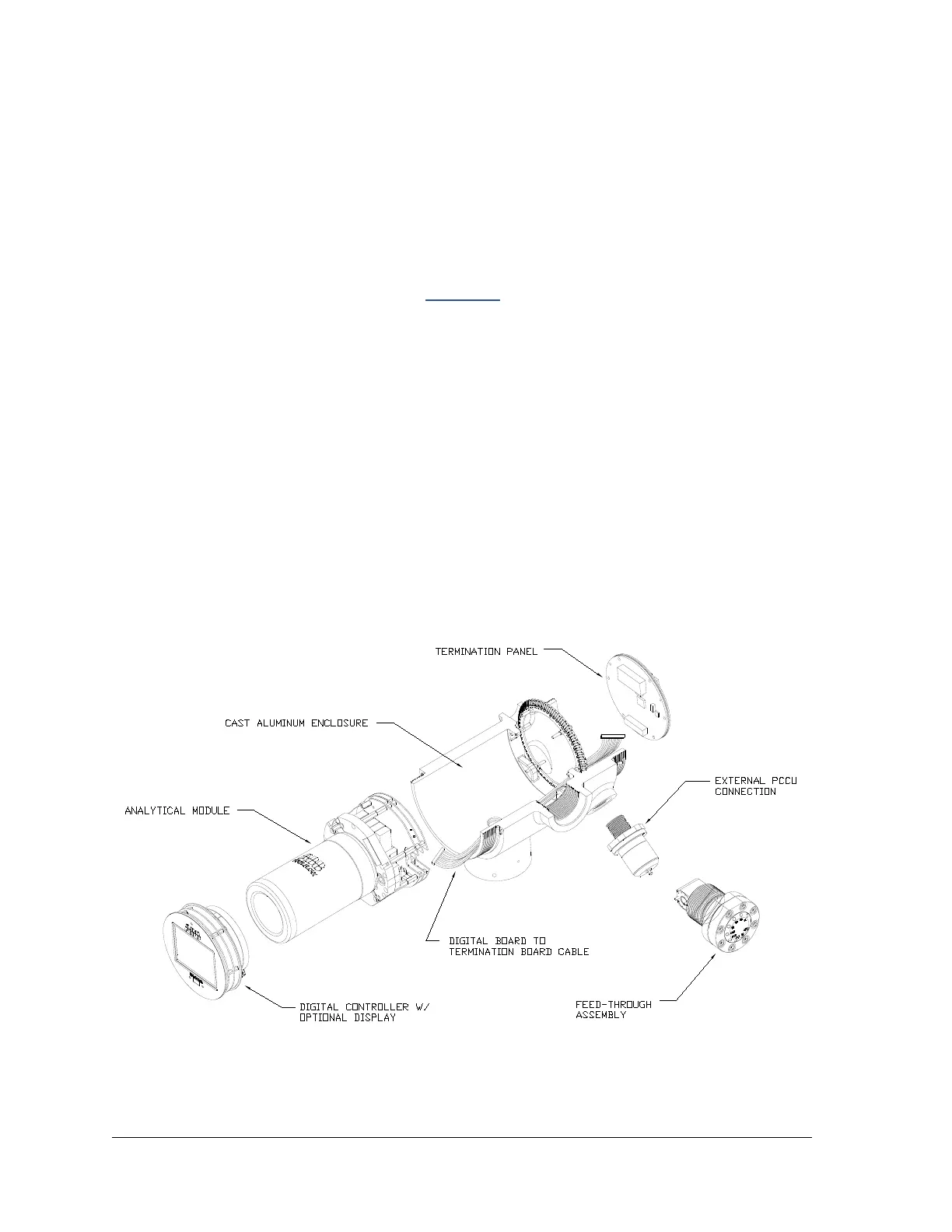

Figure 2-3 Modular Design NGC8206
