ABB PCS100 UPS-I - Control Connections; Digital Inputs and Outputs

124 PCS100 UPS-I User Manual
13.2 Control Connections
The PCS100 UPS-I includes control connections for the need of local control or monitoring of the system.
Control connection terminals are located on Auxiliary Master Module at the bottom of the Master Inverter
Enclosure.
13.2.1 Digital Inputs and Outputs
Digital input and output terminals are located on Auxiliary Master Module at the bottom of the Master Inverter
Enclosure and numbered as shown in Figure 13-1 and explained in Error! Reference source not found..
1 NC
2 C
3 NO
4
5
6
7
8
9
10
11
12
13
14
15
16
NC
C
NO
NC
C
NO
0 V
RUN
250 Vac / 30
Vdc
1 A
WARNING
250 Vac / 30
Vdc
1 A
FAULT
250 Vac / 30
Vdc
1 A
TX ALARM
24 Vac/Vdc, 1 A
START
0 V
STOP / RESET / INHIBIT
LOOP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
-
+
NC
NC
Inhibit switch;
Located inside
inverter cabinet
door
(fitted at factory)
PCS100 UPS-I
200º
C
Customer Monitoring
and Alarm Systems
Remote Control

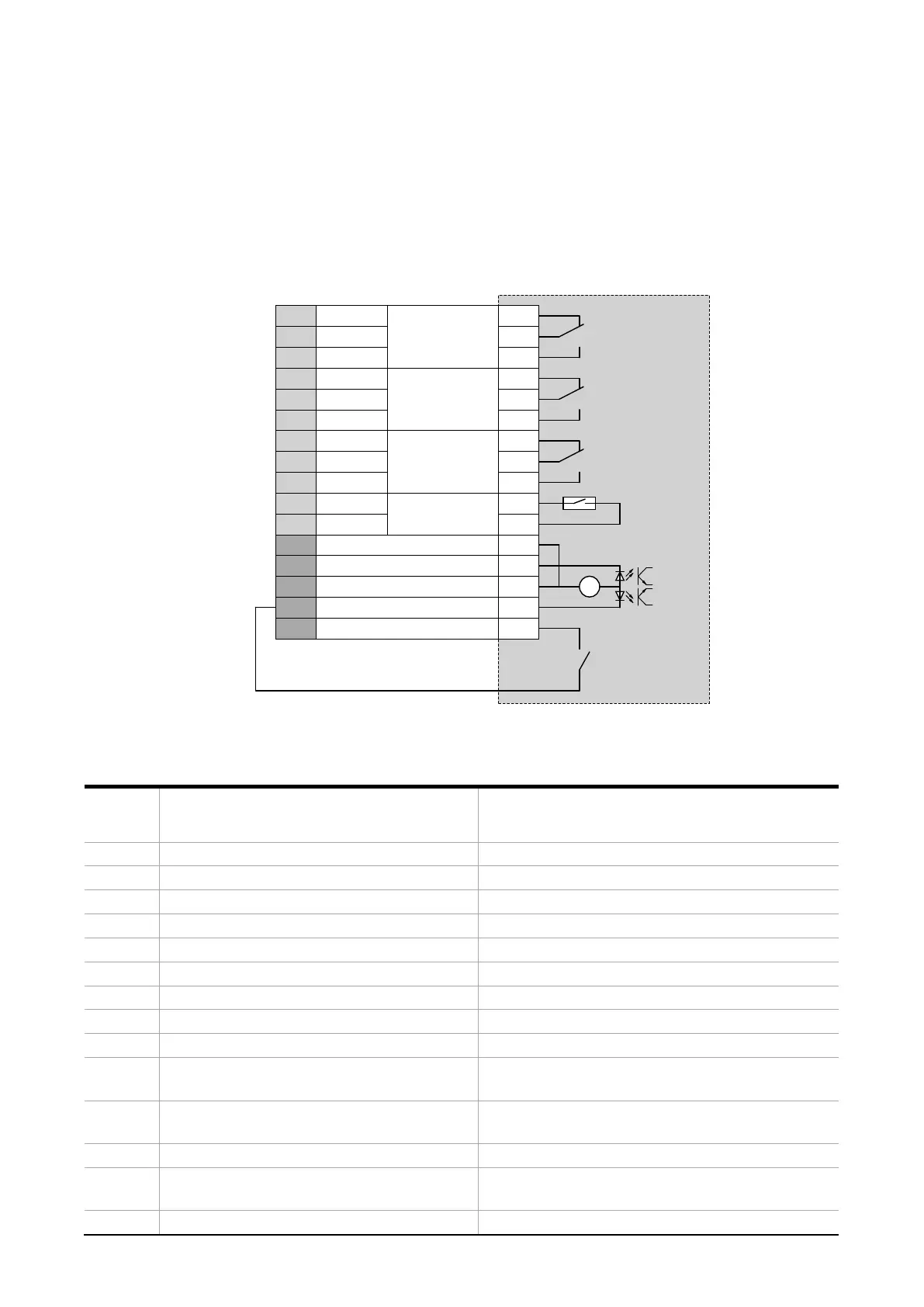

Figure 13-1: Remote Control and Monitoring Terminals
Terminal
Number
Description
Name
1
Relay output / 250 Vac/30 Vdc, 1 A / NC
RUN
2
Relay output / 250 Vac/30 Vdc, 1 A / C
RUN
3
Relay output / 250 Vac/30 Vdc, 1 A / NO
RUN
4
Relay output / 250 Vac/30 Vdc, 1 A / NC
WARNING
5
Relay output / 250 Vac/30 Vdc, 1 A / C
WARNING
6
Relay output / 250 Vac/30 Vdc, 1 A / NO
WARNING
7
Relay output / 250 Vac/30 Vdc, 1 A / NC
FAULT
8
Relay output / 250 Vac/30 Vdc, 1 A / C
FAULT
9
Relay output / 250 Vac/30 Vdc, 1 A / NO
FAULT
10
Isolated thermal switch / 24 Vac/24 Vdc, 1
A / NC
Not used on PCS100 UPS-I.
11
Isolated thermal switch / 24 Vac/24 Vdc, 1
A / NC
Not used on PCS100 UPS-I.
12
Dry contact only; return wire
Remote start input – return
13
Dry contact only; start on closing edge.
Remote start Input – only used if a remote Start
is required
14
Dry contact only; return wire
Remote Stop/Reset – return
