7.1.1 Navigation Panel
The navigation buttons are displayed at all times.
Press the navigation buttons on the Navigation & Control panel to provide access to the following 5 pages.
1. Status page
Navigation Buttons
2. Event log page
3. Product page
Press the navigation
buttons to access the
required page
4. Menu page
5. Summary page

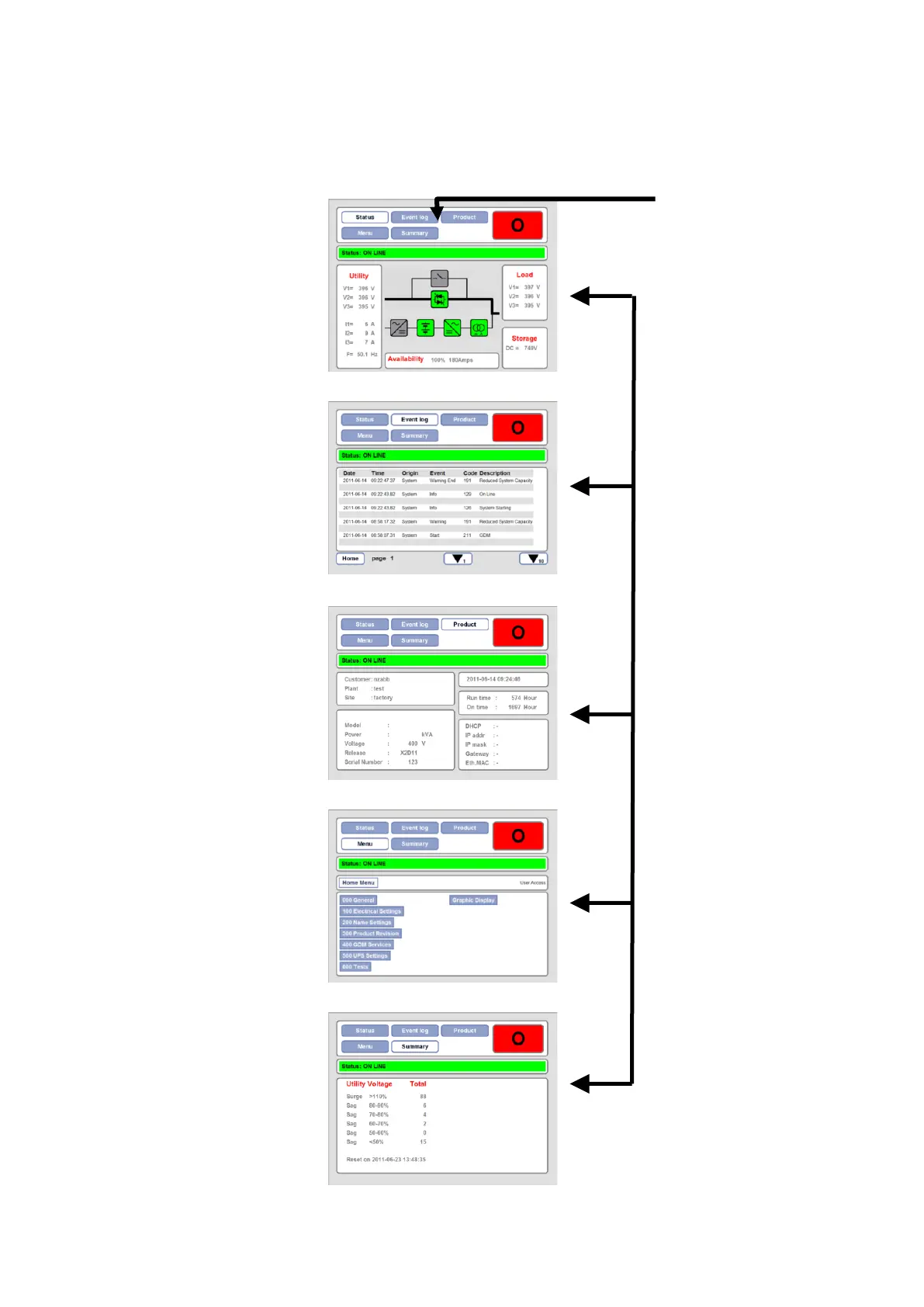

Figure 7-2: PCS100 UPS-I GDM pages
