PCS100 UPS-I User Manual 59
7.1.4.2 Additional Event Information
For events in the event or fault log pages that display an icon, clicking the respective line in the event log
displays additional information about the event.
The Modules section displays which of the PCS100 modules in the PCS100 UPS-I are reporting the event.
The Description field contains an extended description of the event.
The Recommended Action field is only visible when logged into the GDM at the ‘Tech’ level as it is primarily
provided to aid trained ABB service agents resolve the fault.
Both the Description and Recommended Action fields are also presented in the Table 11-2: PCS100 UPS-I Event
Descriptions.

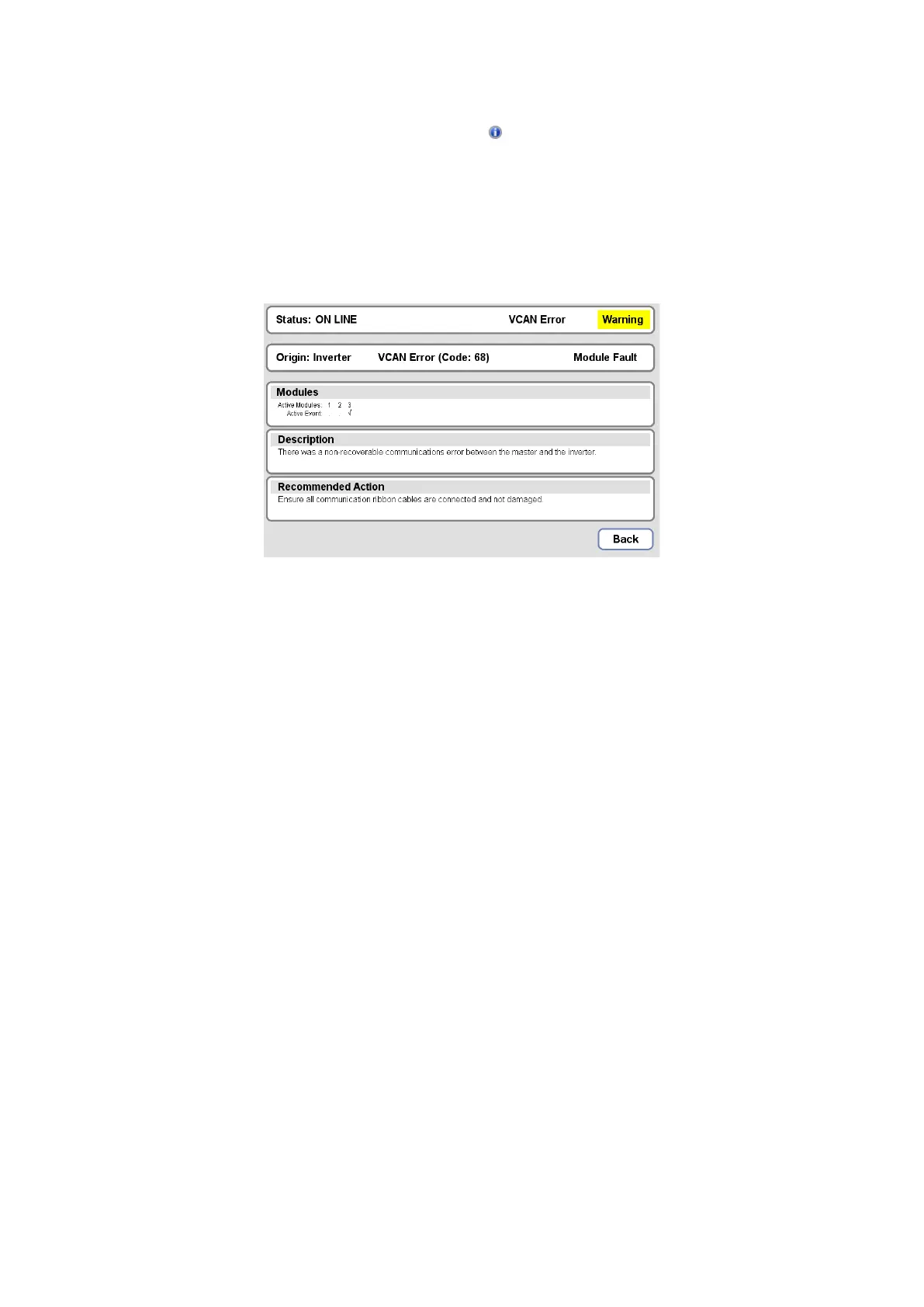

Figure 7-8: Additional Event Information
