P
age 124
© Cop
yright 2021 AB
B. All righ
ts reserv
ed.

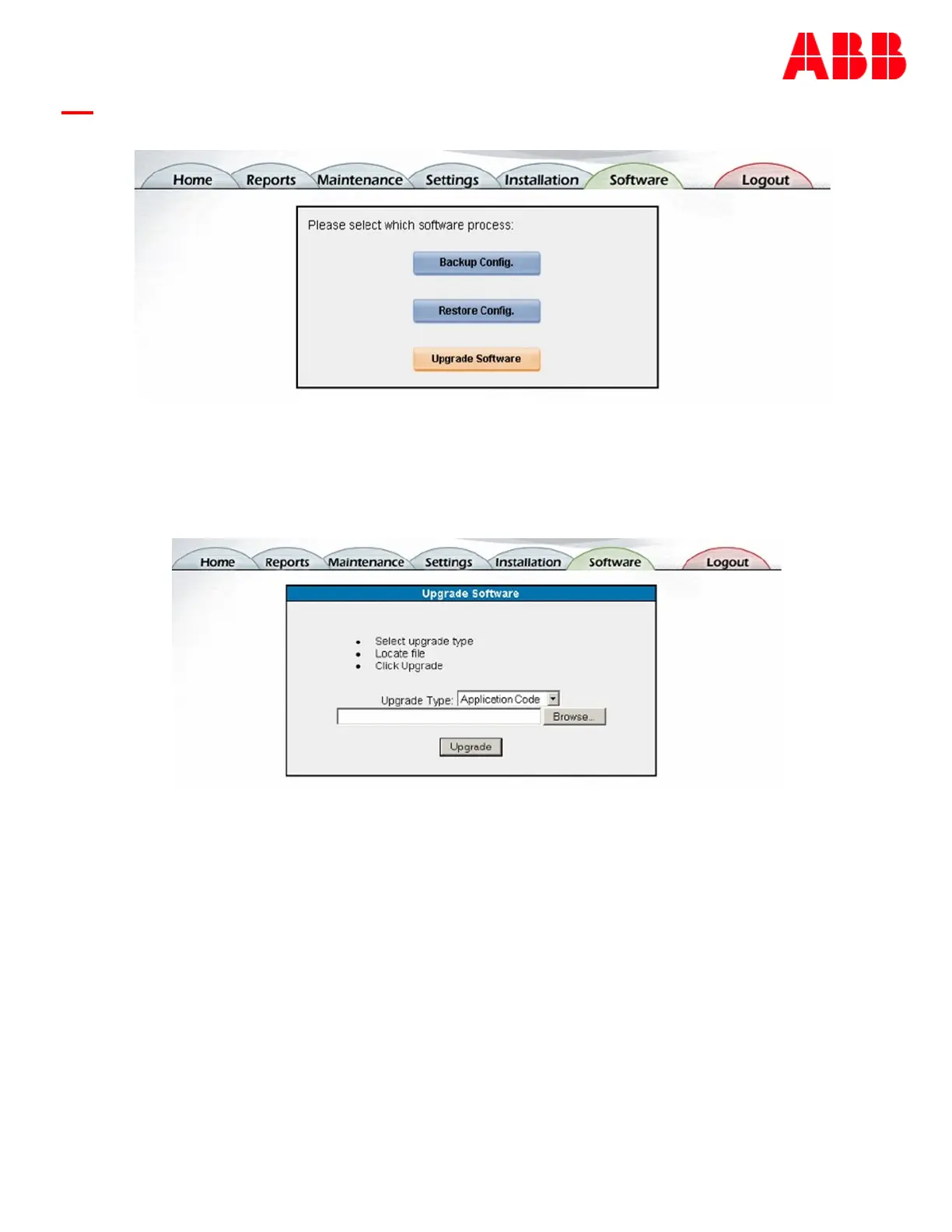

Clicking
the
“
Upgrade
Sof
tw
are
”
button
pr
ovides
an
interf
ac
e
to
select
which
fi
le
is
to
be
upgraded
as
well
as a tool t
o help s
elect the locat
ion of the file t
o upload. F
ollowing is a sampl
e scr
een
123
125
Table of Contents
Table of Contents
3
Table of Figures
7
Table of Tables
8
Introduction
9
Overview
9
Key Features
9
Applications
11
Figure 1 Compact Power (CP) Line Shelves- CP841A Family of Controllers
11
Figure 2 Small Power System (SPS) Line Shelves- SPS841A Family of Controllers
11
Figure 3 CPS6000 Series II Power System (QS) Line Shelves- QS841E Family of Controllers
12
Figure 4 Infinity NE Converter Power Shelves- QS841E and NE841A Family of Controllers
12
Figure 5 Edge Rectifier Shelf - GCP841E Family of Controllers
13
Product Description
15
Overview
15
Configurations
15
Figure 6 General Power System Block Diagram
15
Figure 7 Block Diagram of Pulsar Edge CP841A Controller with the J2007001
16
Table 2 Pulsar Edge Product Examples
18
Getting Started-Installation, Start-Up, and Basic Configuration
19
Preparation
19
Safety
19
Installation Tools
19
Packaging
19
Install the Pulsar Edge Controller
19
Connect to the Controller
23
Initial Startup of the Controller
24
Craft Port
25
Web Interface
29
LAN Port as the Craft Port
29
Basic Controller Configuration
32
Operation
35
Overview
35
Front Panel Display Option
35
System Status Display
36
Figure 8 Pulsar Edge Front Panel Display Assembly
36
Menu Navigation Buttons
38
Front Panel PIN
38
Front Panel Menus
40
Figure 9 Pulsar Edge Status Menu
41
Figure 10 Pulsar Edge Control / Operations and History Menus
42
Figure 11 Pulsar Edge Configuration Menu (Part 1)
43
Figure 12 Pulsar Edge Configuration Menu (Part 2)
44
Local and Remote Access Ports
45
Web Pages
48
Web Interface Structure
48
Figure 13 Reports Menu
49
Figure 14 Maintenance Menu
50
Figure 15 Settings Menu
51
Home Tab
52
Figure 16 Installation and Software Menu
52
Reports Tab
56
Maintenance Tab
61
Settings Tab - Configuration
65
Table 3 Current Calculations
69
Installation Tab
90
Software Tab
91
Controller Peripherals
93
One-Wire Peripheral Devices
93
QS873A Voltage/Thermal Probes
93
Figure 17 QS873A Voltage/Thermal Probe (VT-Probe)
93
Figure 18 VT-Probe Connections to Infinity NE
94
ES771A Remote MID-String Voltage Monitor Module
95
Figure 19 ES771A Remote Voltage Monitor Module
96
Figure 20 Four-String System Monitored for Imbalance
97
Figure 21 same System Monitored for Imbalance with VT Probe on Every Battery
98
NE872A Remote Distribution Monitor and Control Module
99
Figure 22 NE872A Remote Distribution Module
99
Figure 23 NE872A ID Jumper Settings
101
Figure 24 NE872A ID Jumper Settings
102
QS871A Remote Distribution Monitor and Control Module
103
Figure 25 QS871A Remote Distribution Module
103
Troubleshooting
109
Table 4 Power System Troubleshooting
109
Checking for Defective VT-Probes
112
Specifications
113
Safety
117
Safety Statements
117
Precautions
117
Appendix A: Software Backup / Restore through Network Connection
119
Application Software
121
Web Pages
122
Backup/Restore Configuration File
123
Backing Up/Retrieving
123
Restoring
123
Appendix B: T1.317 Command Language
125
Serial Access to the Pulsar Edge Controller
125
Introduction
126
Objects, Attributes, and Related Commands
127
Additional T1.317 Commands and Samples
145
Error Messages
153
Appendix C: Battery Functions
155
Float Mode
155
Slope Thermal Compensation
155
Temperature Alarms
156
Figure 26 Slope Thermal Compensation
156
High Temperature Compensation
157
Low Temperature Compensation
157
Plant Battery Test
158
Boost Mode
159
Auto-Boost Charge
159
Redundancy Loss Function
159
Battery Voltage Imbalance Detection
160
Battery Recharge Current Limit
161
Battery Parameter Defaults
161
Table 5 Supported Battery Types
161
Appendix D: Default Configurations
163
Table 6: Standard Configuration Items
164
Table 7 48V Battery Related Items
181
Table 8 24V Battery Related Items
183
Table 9 Converter Related Items
184
Appendix E: Alarms and Relays
185
Alarm Relays
185
Alarms
185
Table 10 Alarms, Alarm Relays and Leds Assignments
185
Appendix F: SNMP
189
SNMP Overview
189
SNMP Operations
190
SNMP Configuration
190
Community Strings
191
Appendix G: Secure Protocols
193
Overview
193
Configuration
193
Reboot Required
193
Security
193
Figure 27: Security Configuration
193
Internet Protocols (Ipv4 and Ipv6)
194
Figure 28: Network Settings for Ipv4 and Ipv6
194
Https (Ssl)
195
Figure 29: Security Problem Screen Using Explorer
195
Figure 30: Mismatched Address Certificate Error Screen
196
Figure 31: HTTPS Connectivity over Ipv6 Controller Login Screen
196
Snmp
197
Figure 32: SNMP Settings Screen
197
Sftp
198
Figure 33: Sample Winscp Configuration Screen for Disable
198
Figure 34: Winscp Login Screen
198
Figure 35: Winscp Security Key Warning Screen
199
Ssh
200
Figure 36: Putty Security Key Warning Screen
200
Figure 37: Putty SSH Login Example Screen
200
Revision
