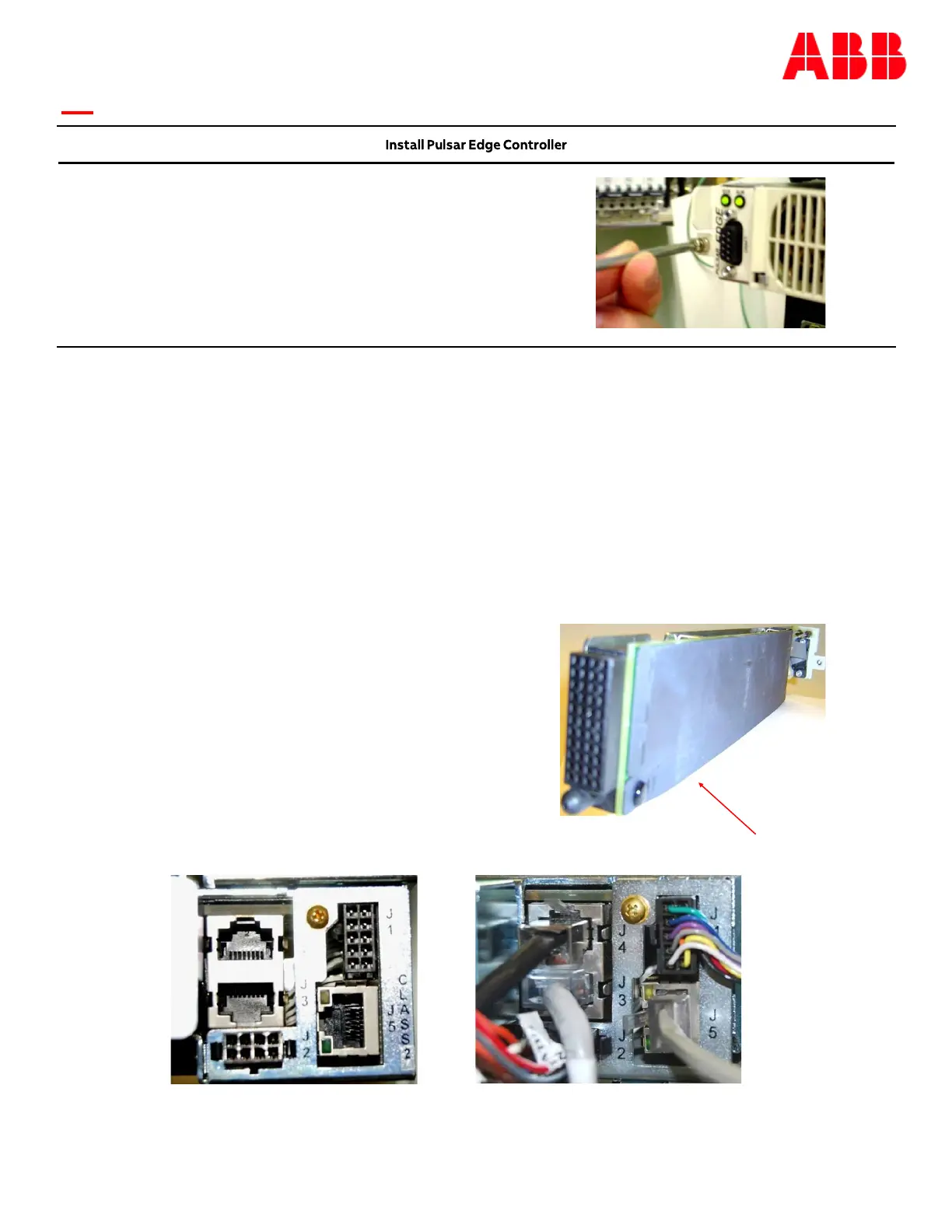

Connect to the Controller
Other than the front accessible serial or USB port, all connections to the Pulsar Edge Controller are
made through backplane connections or appropriate cable assemblies to the controllers J1 interface.
The Pulsar Edge has been designed to provide all its connections through a single 44-pin connector
located to the rear of the controller. Systems are then designed to accept this connection and separate
the outputs, inputs, communication, and plant specific items onto to individual connectors for external
use or to provide automatic connections to core signals. These connectors are typically located at the
rear of the shelf but are available in the front in front access configurations.
Systems designed to utilize the Pulsar Edge may provide
different interconnects to the controller’s inputs and
outputs. Although the designs strive for commonality,
the specific drawings for the shelves or installation
quick start guides must be utilized for identifying the
exact input and outputs available for a particular
system. The following figures show the input and output
connections for one of the available J2007001_L001 CP
power shelf.
9
Secure the controller in place by tightening the Philips captive
fastening screw. Those with displays attached do not have a
securing screw. The controller is now installed
J1 Backplane Interface Connector
Consult individual product Quick Start Guides for alarm input and output mapping and cable options.
