ABB Pulsar Edge User Manual

Page 185
© Copyright 2021 ABB. All rights reserved.
Appendix E: Alarms and Relays
Alarm Relays
The Pulsar Edge can be configured to provide up to six alarm relays depending on the controller
configuration. Four alarm relays provide the alarm condition and two provide the overall system
severity associated with the alarm.
Presently, the maximum number of relays available in the Infinity NE841A and QS841E is six. The
maximum number of relays in the CP841A and SPS841A controllers is five. The severity relays transmit
Power Major (PMJ) or Power Minor (PMN). Each alarm is factory assigned a severity based on industry
practices, however, they may be reassigned to MAJ, MIN, Warning, or RO (Record Only). An alarm
condition with the RO severity results in the system controller not transmitting the alarm but is stored
in the history log. PCR, PMJ nor PMN severities are transmitted along with the alarm.
The four selectable alarm relays are called User Alarm Relay 1 (R1) through User Alarm Relay 4 (R4).
Relays are user definable in that the user may assign any combination of alarms from a given set of
alarms. The following table shows which alarms may be assigned along with their factory default
settings.
Alarms
Table 10 shows a list of all alarms along with their descriptions, default settings, ranges and/or
severity, and affected alarm relays and LEDs. Controllers with less relays than six will lose user relays
starting with R4, then R3, etc.
USER RELAYS LED SNMP
Description CRIT PMJ PMN WRN RO R1 R2 R3 R4 ALM DST
ID
R3
ACF1
RO AAC1
RO ATB1
RO ATA1
MAJ AUX1
MAJ AUX2
MAJ
AUX3
MAJ AUX4
MAJ AUX5
MAJ AUX6
MAJ AUX7
MAJ AUX8
MAJ AUX9
MAJ AUX10
MAJ AUX11

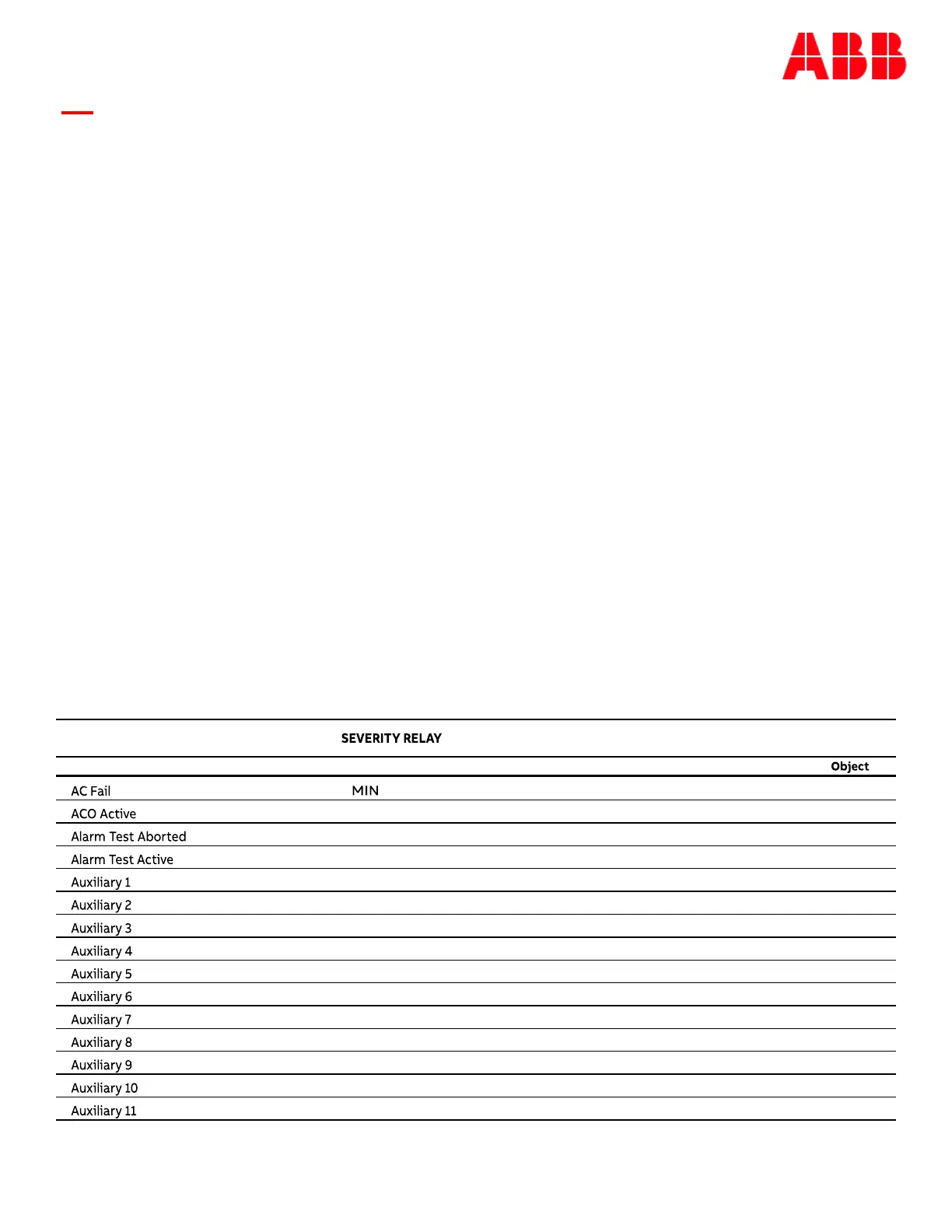

Table 10 Alarms, Alarm Relays and LEDs Assignments
