Page 52
© Copyright 2021 ABB. All rights reserved.
Home Tab
The Home page provides an overview of the status of system components. Below are sample home
screen shots from a Slim Line Power System (SPS) and an Infinity-C 663 converter shelf. The graphical
representation of the plant changes as well as a few other parameters specifically concerning rectifiers
and converters, respectively. This page is meant to provide an overall high level view of the system.
Configuration is not possible from the Home or main menu.

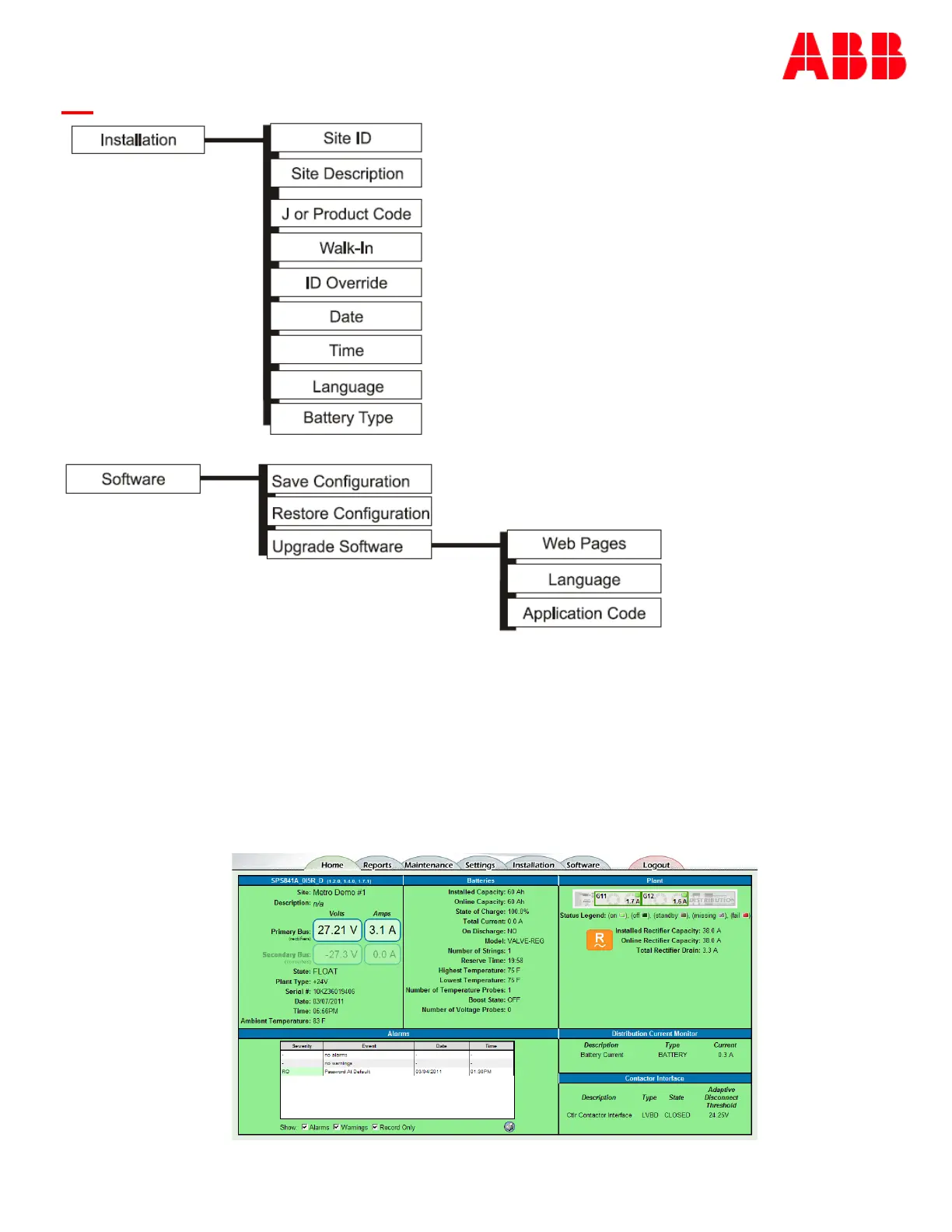

Figure 16 Installation and Software Menu
