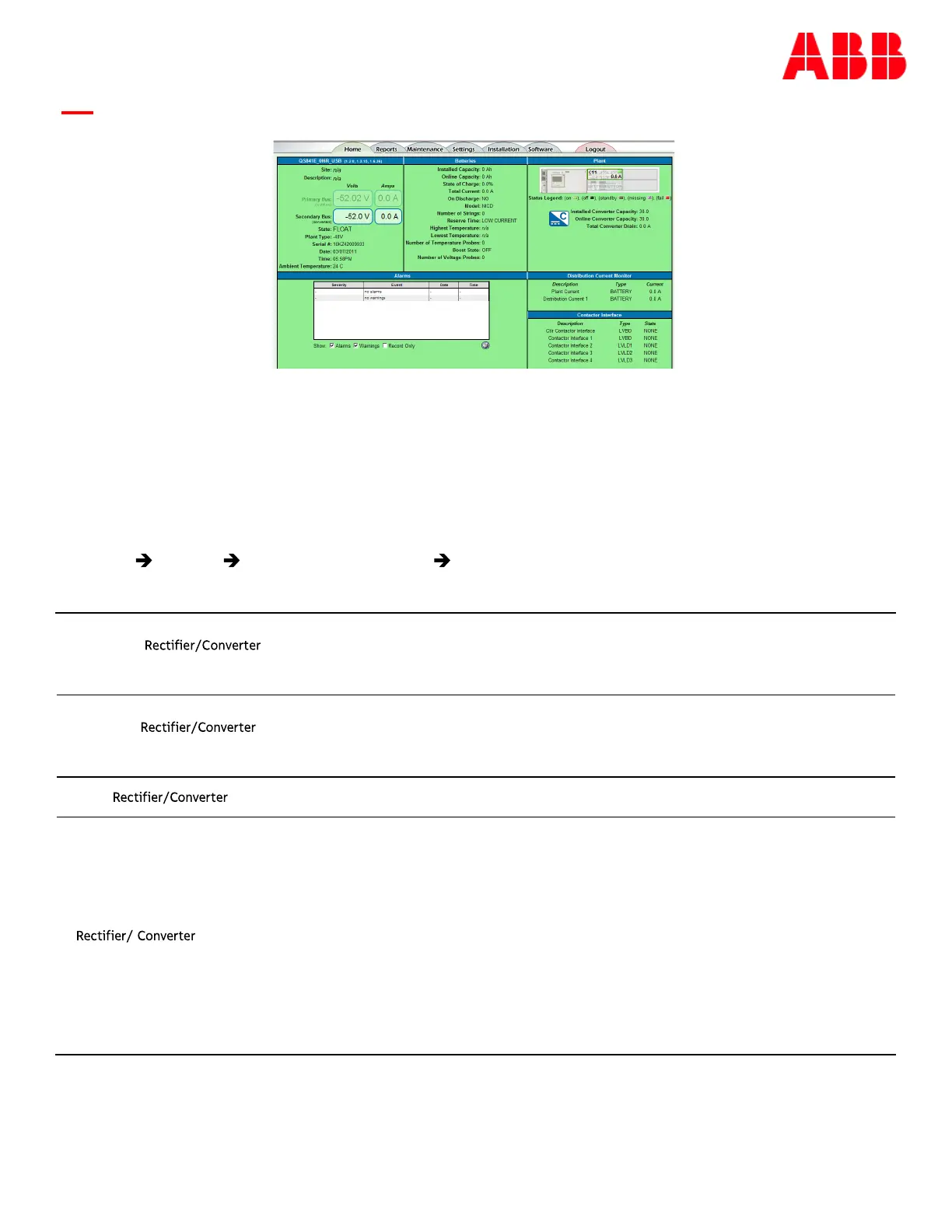

Plant
The “Plant” section of the Home page shows various characteristics of the power modules in the
system. A graphical representation of the rectifiers in the system or shelf is included as well as a visual
indication of each individual rectifier’s status including the output current from each of the rectifiers
or converters. Systems that ship with the controller installed generally have the plant configuration
pre-configured from the factory. This display configuration can be modified as needed under the
Settings System Plant and Installation J or Product Code. In addition the following items are
provided:
Note: Right clicking on the graphic of the rectifier or converter will pull up a pop-up window that
provides additional details on each of the rectifiers/converters, respectively. A sample screen shot for
each is shown on next page
Installed
Capacity
Provides the total installed rectifier/Converter capacity in the system. The rectifiers/
converters that are inserted into the shelf may or may not have AC or DC input power
applied, respectively, or be outputting power but are able to communicate to the controller
through back- bias power.
On-line
Capacity
The total capacity of the number of rectifiers/converters installed in the system and able to
produce power, respectively. Rectifiers or converters that are operating or in Standby are
considered to be On- line. Rectifiers that are in RFA, ACF, etc. or converters in CFA or DC input
failure are not counted in the On-line capacity
Total Drain
The total rectifier/converter drain is the summation of output currents from all rectifiers or
converters, respectively. This value is also displayed on the default front panel screen.
Monitoring
Each rectifier’s DC output current, AC input current (If supported ), and AC input voltage (If
supported) is available by rectifier number, Gmn. Converters provide their DC output current
using converter number Cmn. In both cases, “m” represents the shelf number and “n”
represents the slot number in the shelf. In addition to the ON state, other states identified
when current is not shown are:
• OFF: Rectifier/Converter shutdown due to hardware failure.
• STANDBY: The rectifier's/converter’s output voltage has been inhibited.
• MISSING: An unacknowledged rectifier/converter has been removed.
• VACANT: Rectifier/converter has not been installed in that position.
• FAIL: The rectifier/converter has failed.
