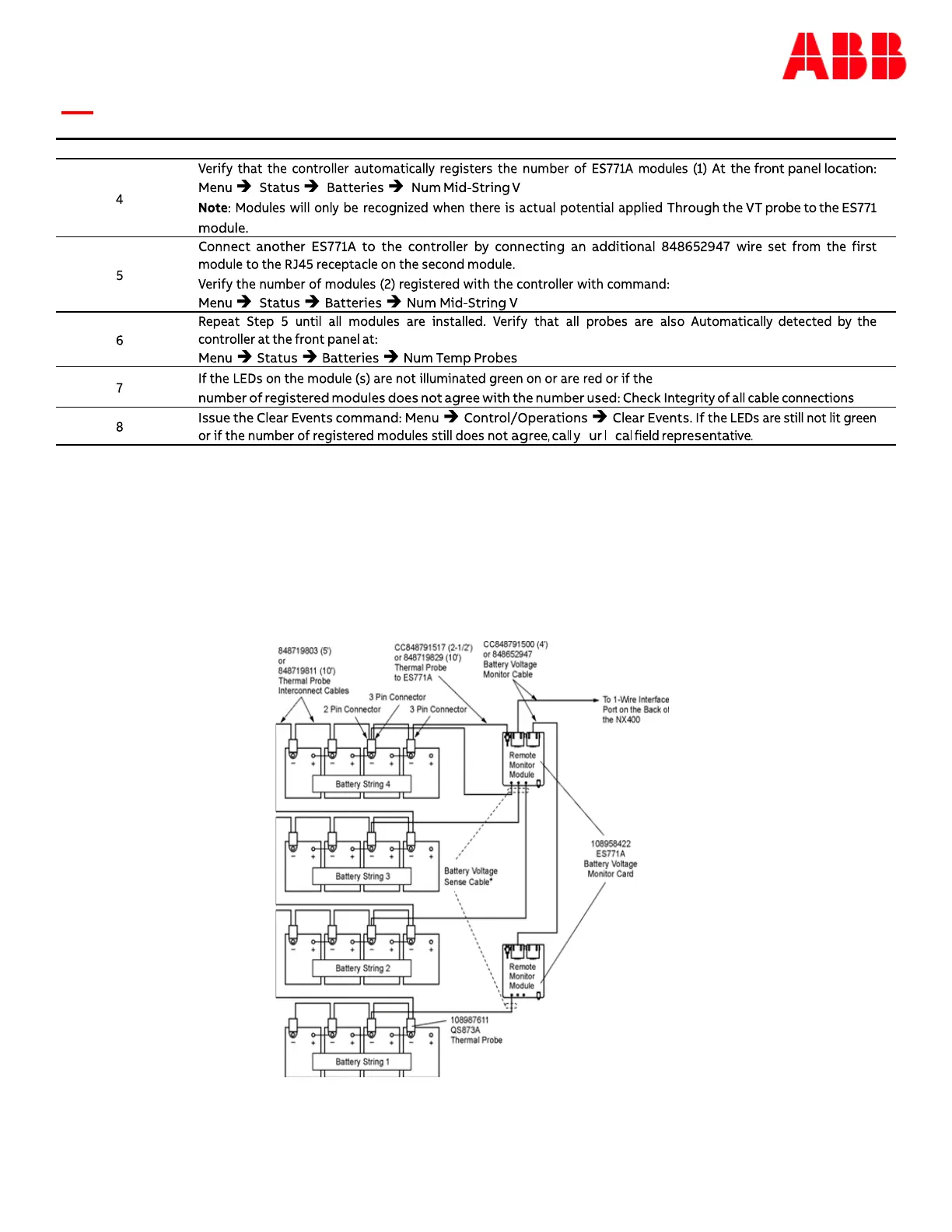

ABB Pulsar Edge - Figure 21 same System Monitored for Imbalance with VT Probe on Every Battery

Page 98
© Copyright 2021 ABB. All rights reserved.
The system is now set to monitor both voltage and temperatures to support the batter string voltage
imbalance and slope thermal compensation features. Figure 21 depicts a reserve system where every
battery in the string being monitored for temperature. Again, the highest temperature measured will
be used for battery thermal management. Only one temperature probe is required for thermal
compensation features.
Step Action
o o
Figure 21 Same System Monitored For Imbalance with VT Probe on Every Battery
