Page 36
© Copyright 2021 ABB. All rights reserved.

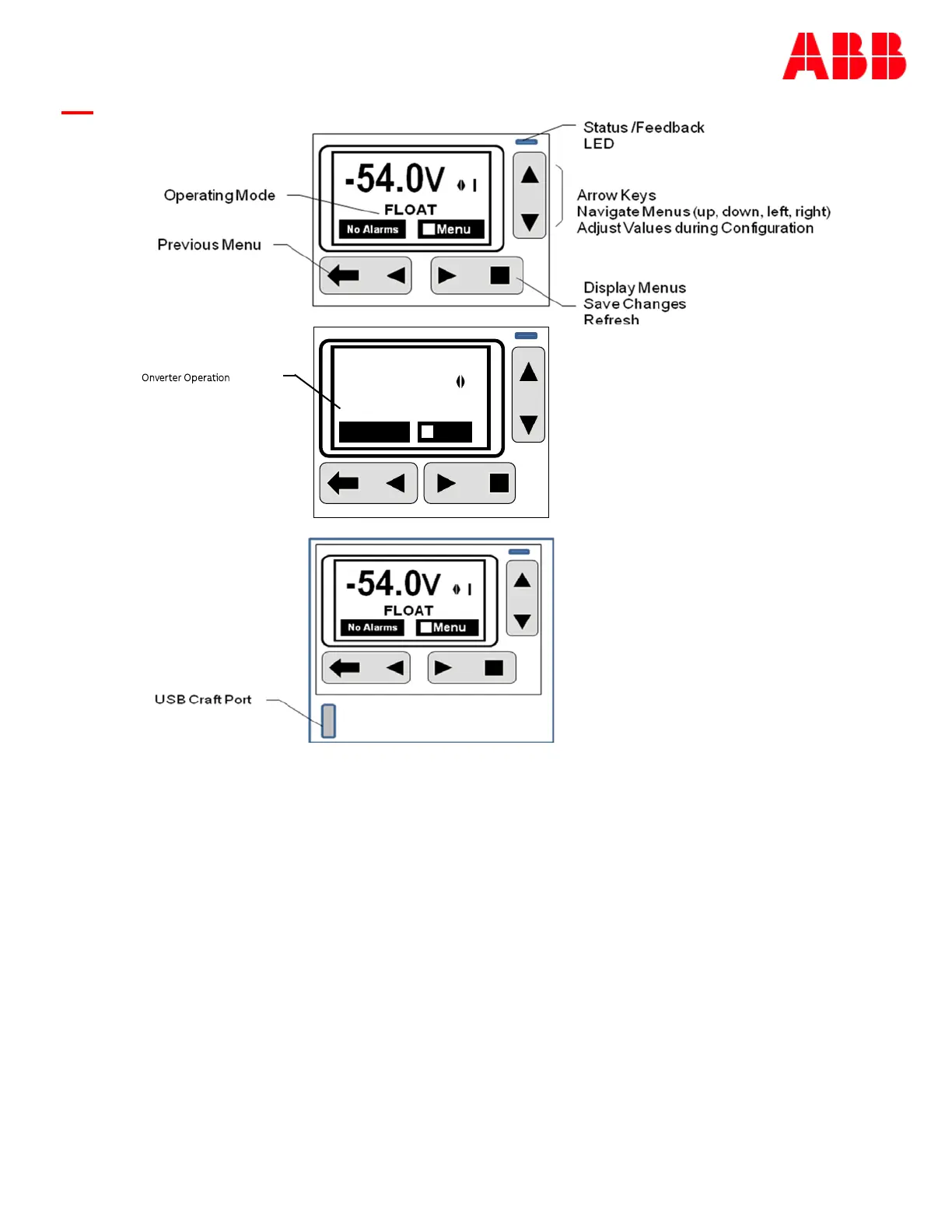

The previous s figure shows depictions of the front panel display in a 48V CPS6000 Series II rectifier
system, a 48V Infinity NE-S converter output system, and a 48V SPS rectifier system. The display
defaults with the system voltage (V) displayed on the main menu. Total system load (I) can be easily
obtained by toggleling the display using either ◄◄ keys. The text area underneath the voltage and
current numbers provide the overall operating mode of the system. In converter only systems, this text
will be fixed and say “converter plant”.
System Status Display
LCD Backlight
The Pulsar Edge controller family incorporates an alarm sensitive back-light indicator to help assist in
providing a clear indication of the system status. Severities of alarms can be configured through the
remote interfaces. Following is a basic description of the backlight functionality.
-54.0V
MeNo
Identified
Figure 8 Pulsar Edge Front Panel Display Assembly
