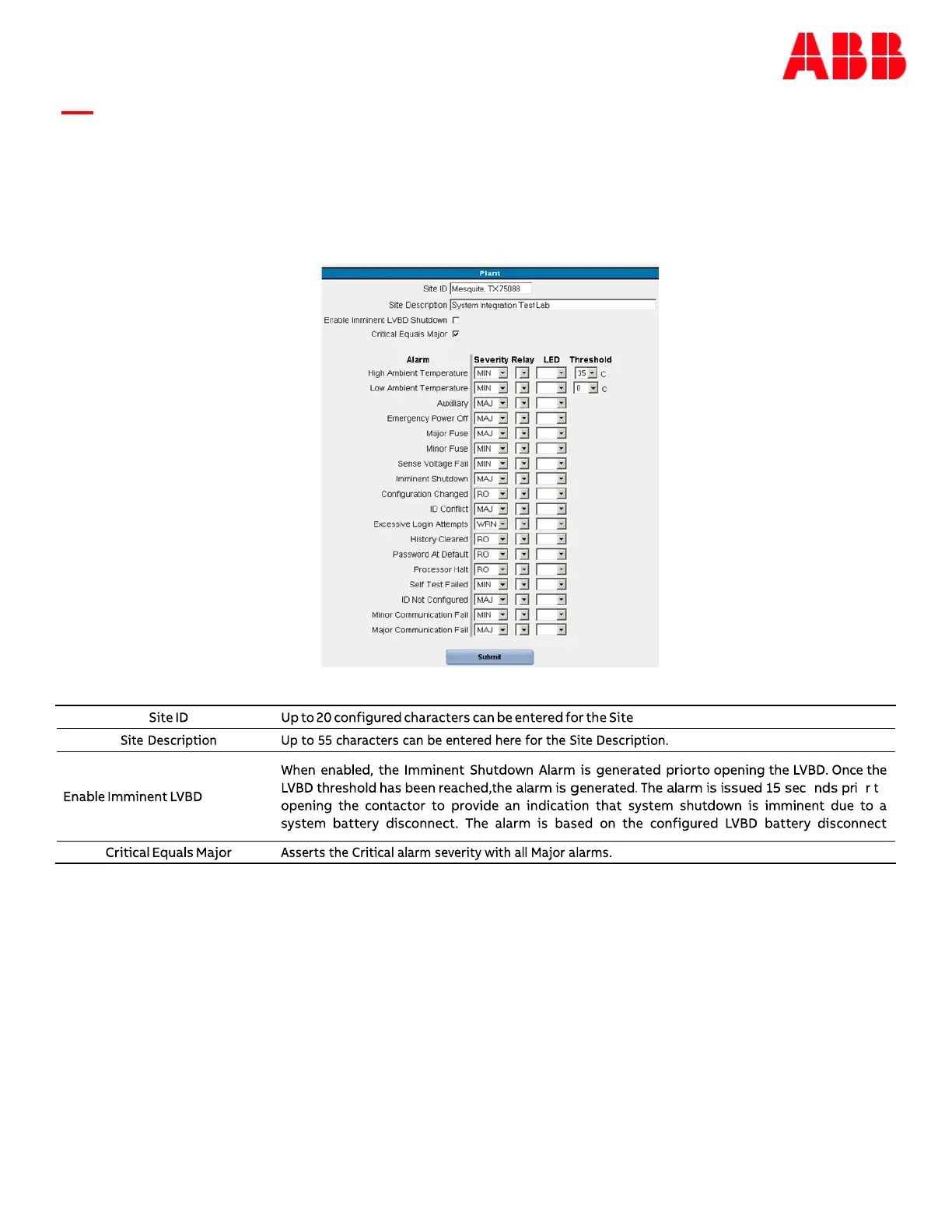

Plant
Items in the section shown below are thought of plant level configurations. The ability to assign the
different alarm events severities, relays (if present), and to the LED is provided. Alarm events can be
assigned Critical (CRIT), Major (MAJ), Minor (MIN), Warning (WRN), or Record Only (RO) severities.
Submit must be used to save the changes.
Shelves
Items in the section shown below are used to define the physical attributes of the system or plant. This
includes the number of bays/frames, number of shelves per bay/frame, whether the bay/frame has a
door and if the controller is located on the door, and the shelf width. It also provides the ability reserve
positions in the shelf for specific components like distribution so that the system can be depicted on
the Home page. Adding a frame/bay would split the plant section on the Home page to show the
number of frame/bays graphically, respectively. Note: The J or Product code selections found in the
Installation section provide pre-configured configurations for the items in the list.
Identification.
Shutdown
