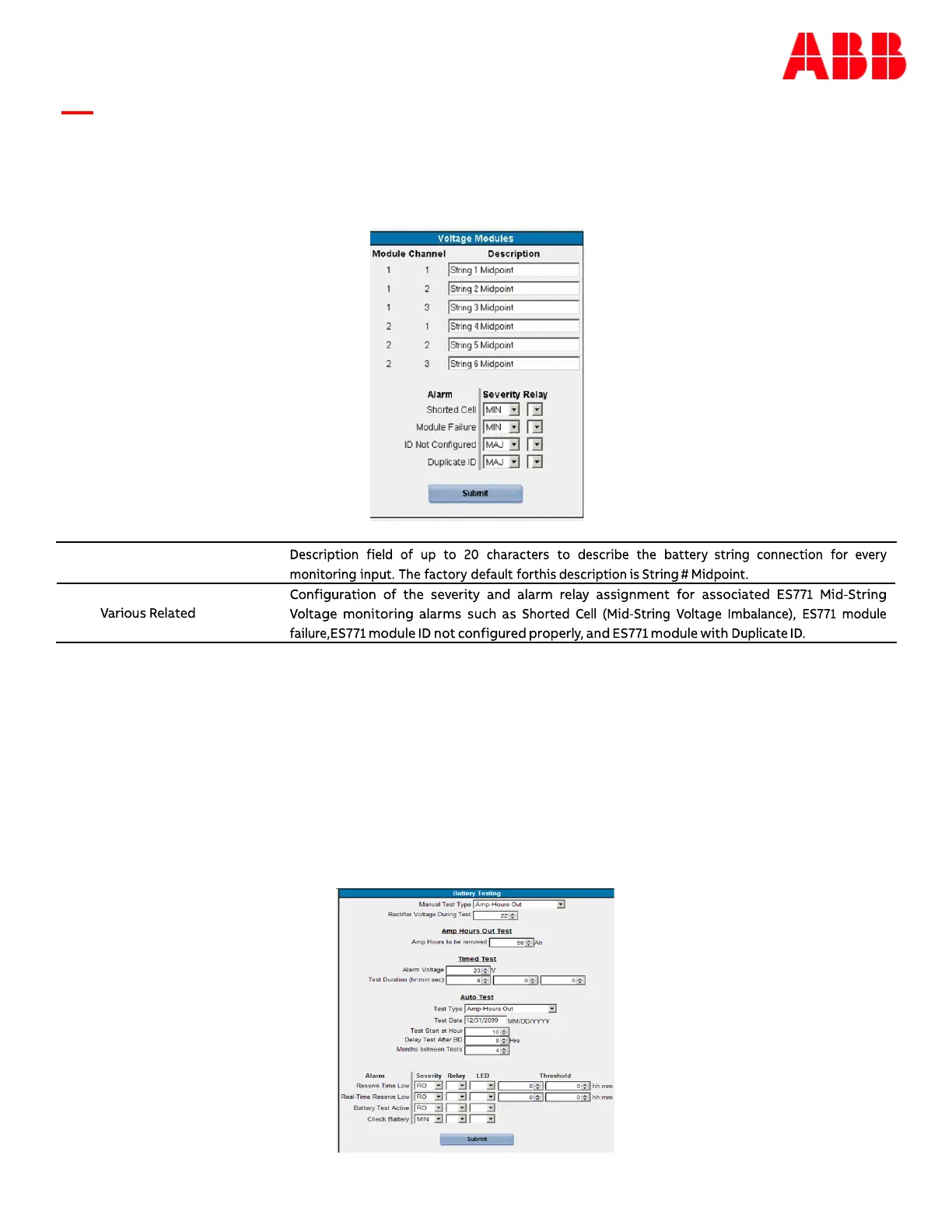

Voltage Modules
Items in this section of the Setting pages are used to configure the various alarms and description
attributes for the ES771 mid-string voltage modules. Following is a sample screen from a system with
two ES771 modules.
Battery Testing
This section includes all the parameters required for battery testing through manual or automatic
means. Configuration for manual test type and automatic test are configured here. Other items like the
system test end-voltage for manual battery test, test interval, start date, start time, time from last
battery on discharge BD, and enable/disable for periodic battery test are also configured through this
screen. The rectifier voltage during battery discharge testing and system reserve time low alarm
threshold are also available. Many of the items are self-explanatory. Descriptions are provided for those
that are not. Following is a sample Battery Test screen.
Description
Alarms
