IEC140000140-1-en.vsd
IEC140000140 V1 EN

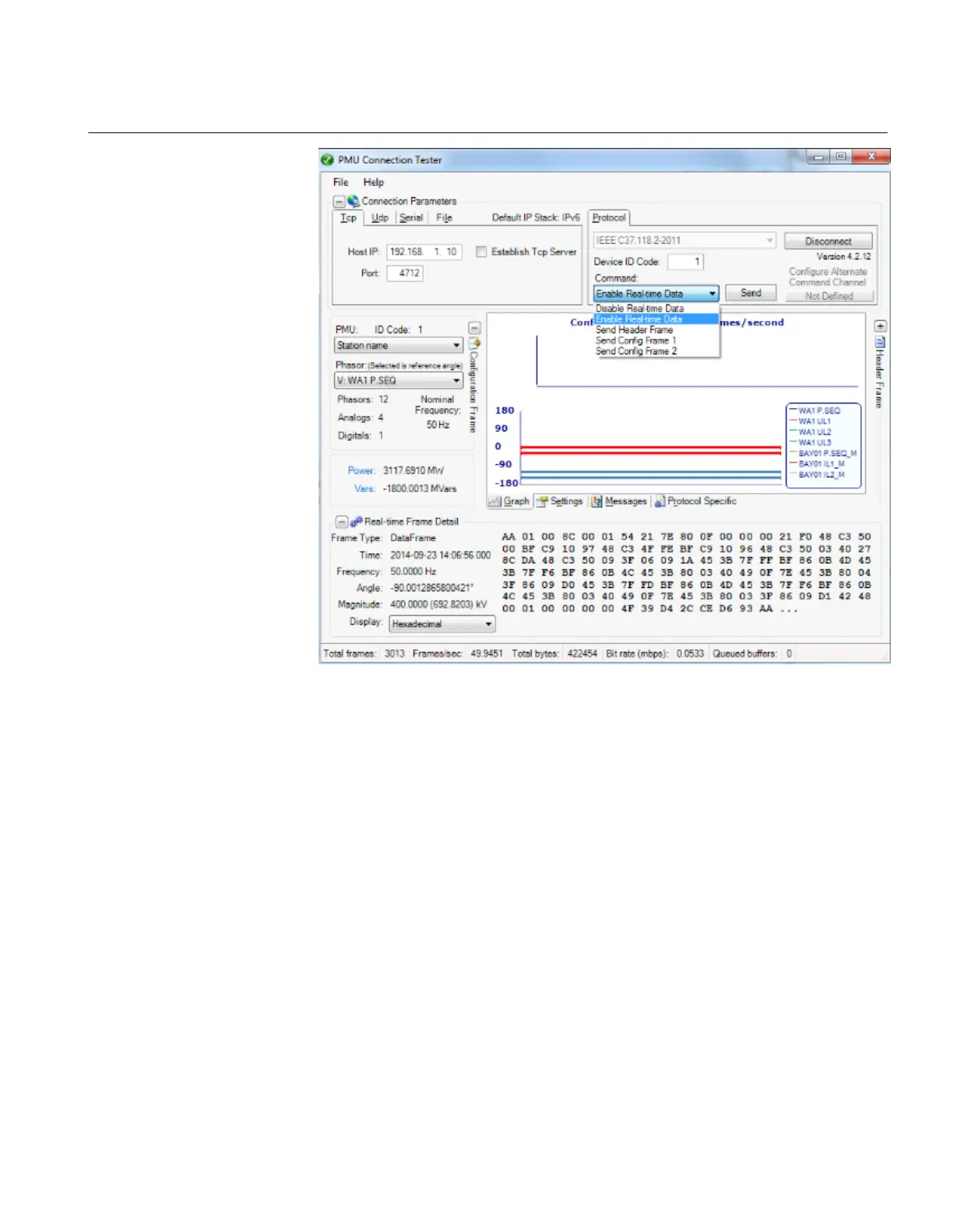

Figure 12: Drop-down menu with commands for testing the PMU
• Switch to the Protocol Specific tab. Here, all the IEEE C37.118 message types can
be seen. If the HeaderFrame is not included, ask the PMU to send the header frame
via the Send Header Frame command (Previous stage). Open each message type and
observe the content of each message.
1MRK 504 165-UUS - Section 9
Establishing connection and verifying the IEEE C37.118/1344 communication
Transformer protection RET670 2.2 ANSI 81
Commissioning manual
