IEC140000141 V1 EN

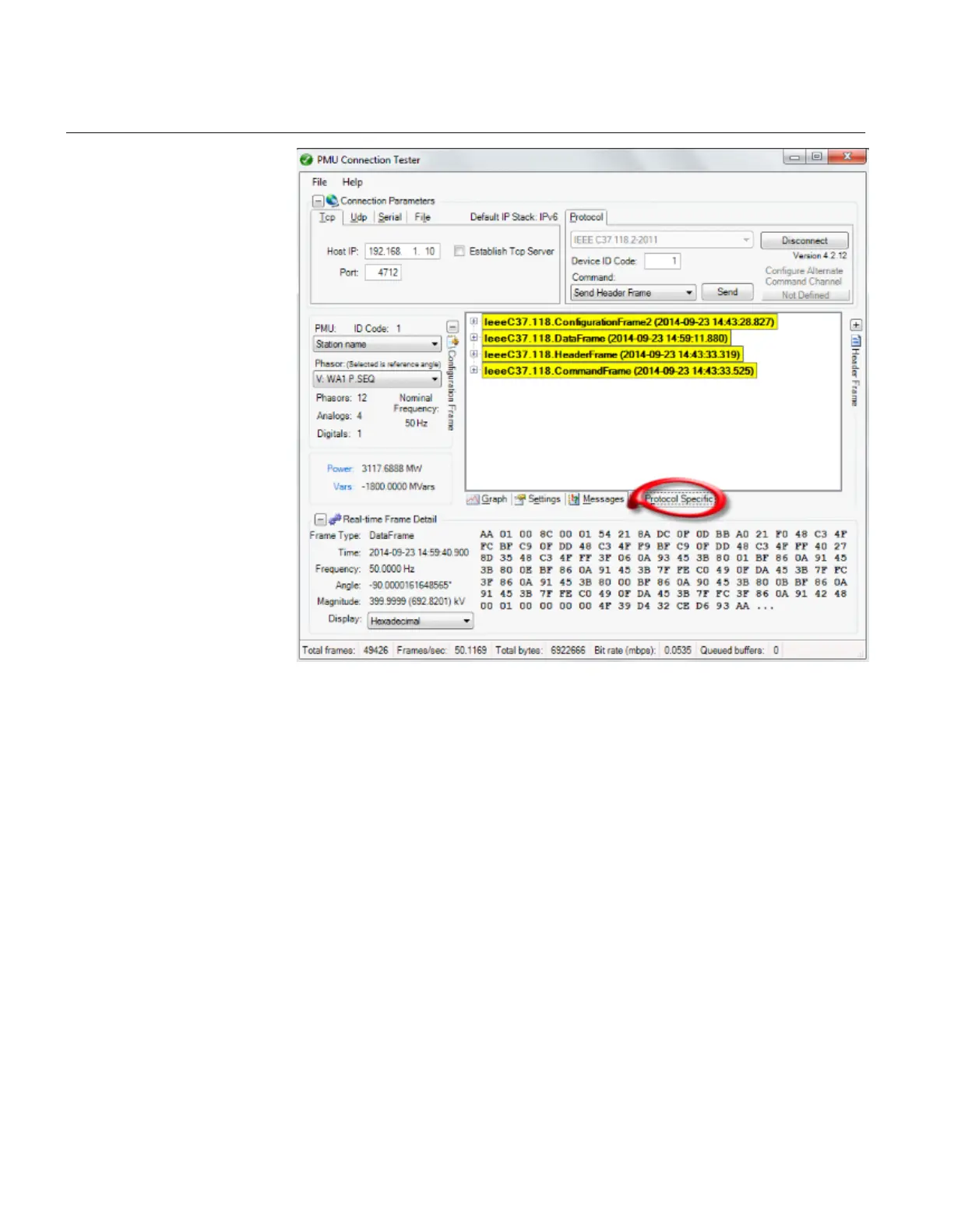

Figure 13: All the IEEE C37.118 message types
• It is also possible to capture the IEEE C37.118 synchrophasor data in an Excel file.
This is done by navigating to File/Capture/Start Stream Debug Capture... The tool
will ask to Set Stream Debug Capture File Name and path to save the capture file.
Section 9 1MRK 504 165-UUS -
Establishing connection and verifying the IEEE C37.118/1344 communication
82 Transformer protection RET670 2.2 ANSI
Commissioning manual
