Rev. Date: 30-Jan-12 Art: 714185-00N Celite ACT - 5

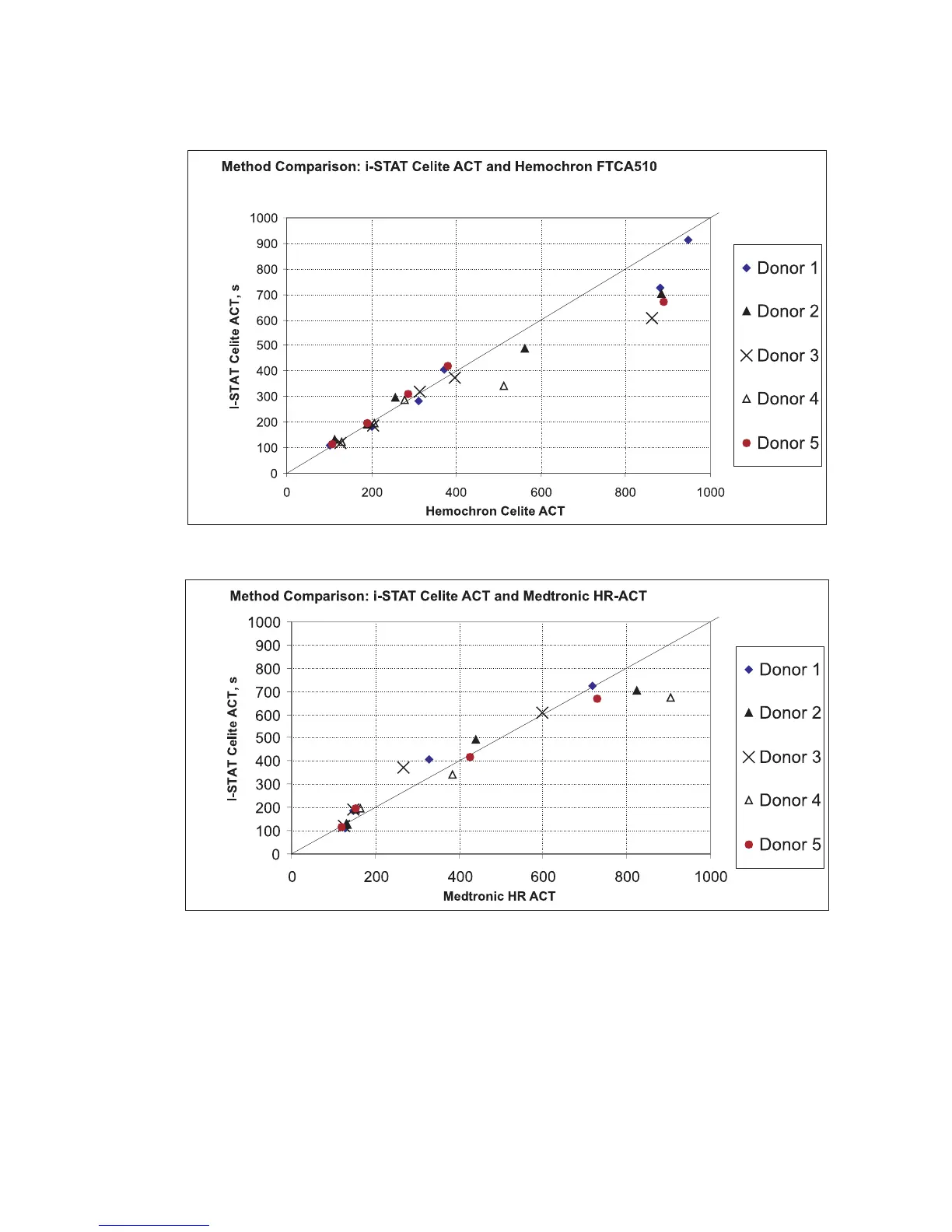

The graphs below indicate the response of the same five donors with respect to the ACT result on the

Medtronic HR-ACT and the Hemochron Celite FTCA 510.
