iFT Series Hardware Installation Manual ADPRO

24 27817_08



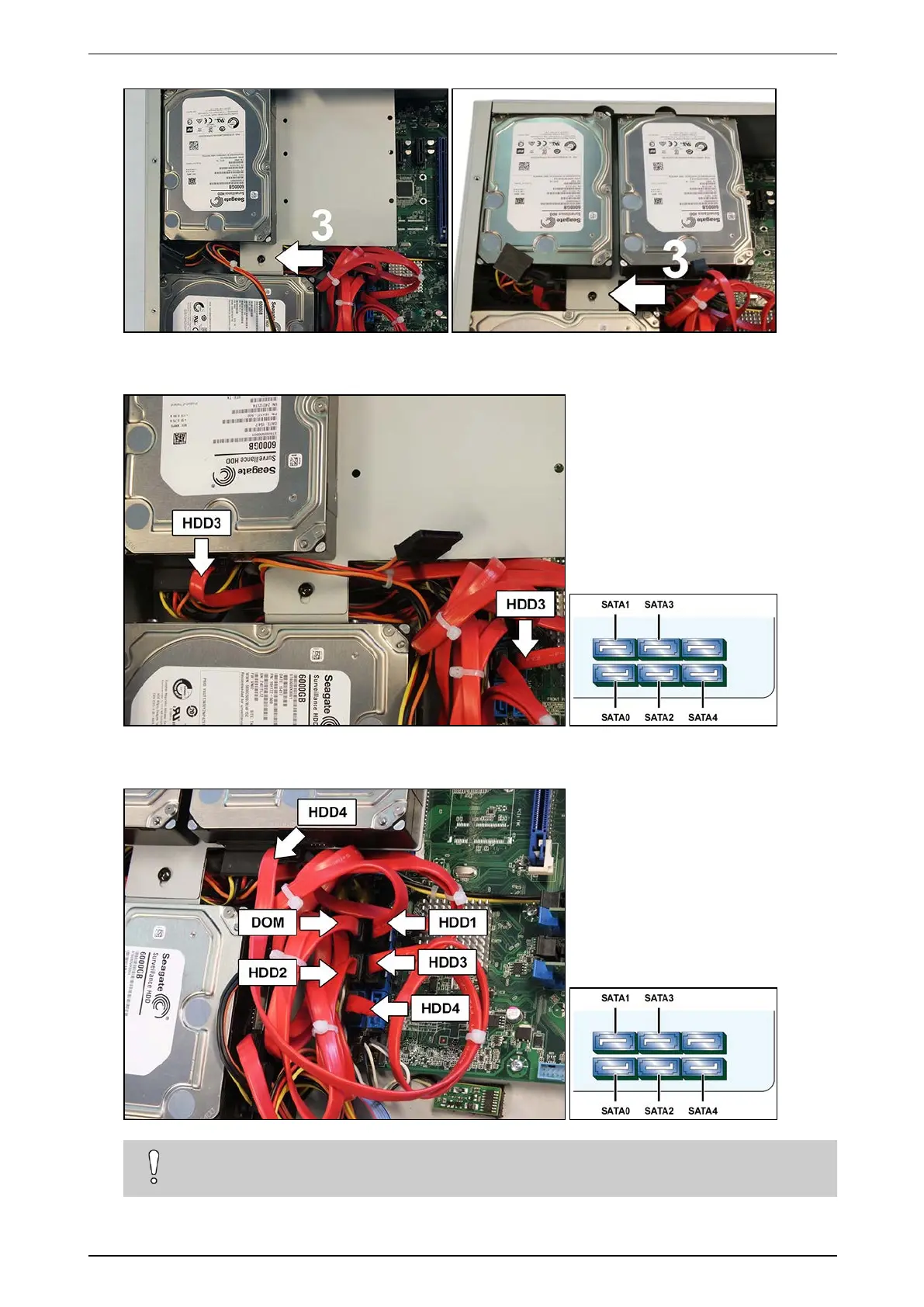

5. Connectharddisk3tothepowersupply,andtotheSATA3connectoronthemotherboardwiththeSATA

cable(#16520877).



6. Connectharddisk4tothepowersupply,andtotheSATA4connectoronthemotherboardwiththeSATA

cable(#16520877).



Caution!

DonotbendtheSATAcablestoosharplytopreventcabledamage.
