Chapter 2. Installation and Operation
61200290L1-1 MX2800 User Manual 2-9
The receive data from the network is connected to the RX (IN)
connectors, while the transmit data from the MX2800 is connected
to the TX (
OUT) connectors.
DSX-1/E1 Interfaces
The DSX-1/E1 interfaces are 64-pin Amp connectors. These
interfaces provide Tx and Rx connections between the unit and
equipment such as wire-wrap patch panels, punch-down panels, or
breakout panels.
Power Connection
The DC and AC power connections are described earlier in this
chapter on page 2-2.
FRONT PANEL

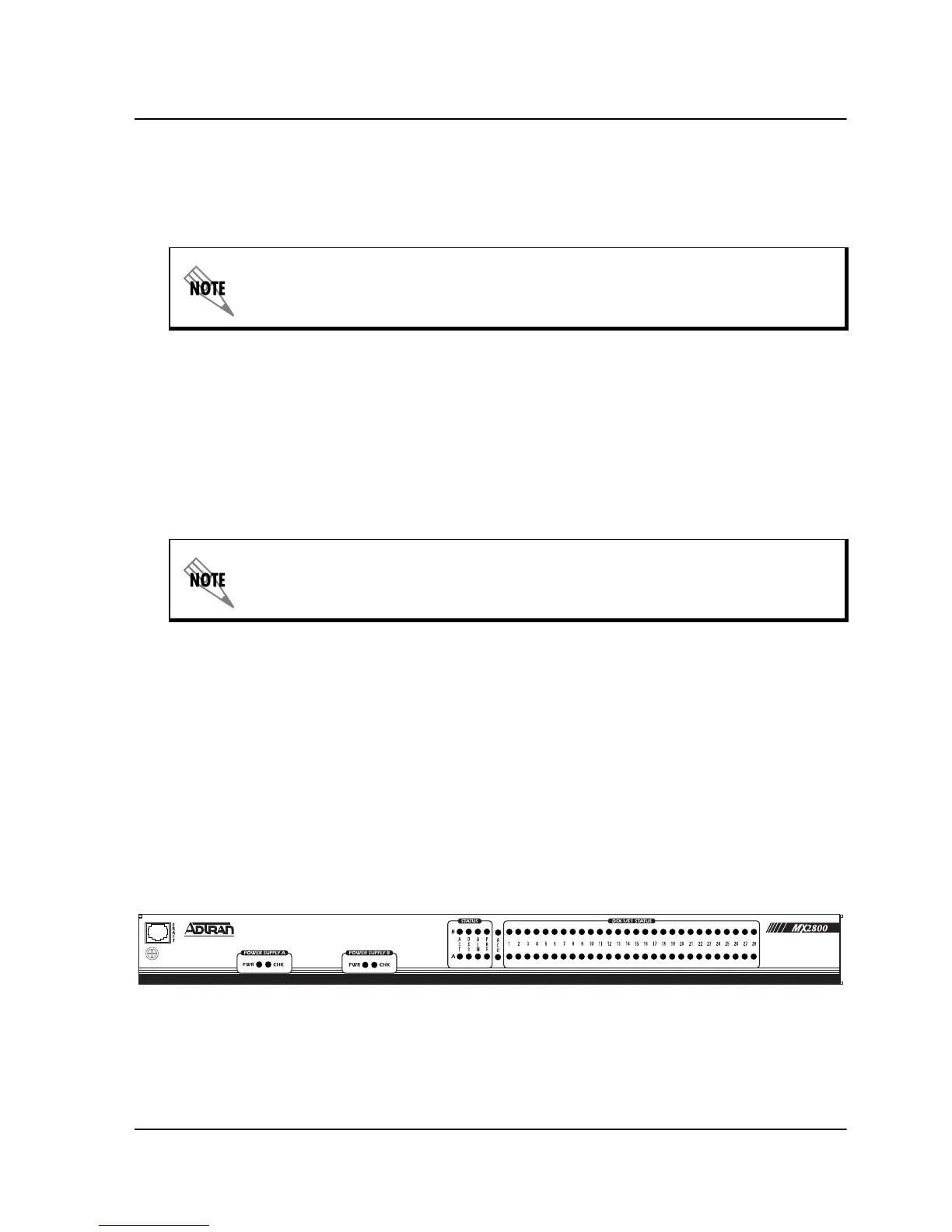

The MX2800 faceplate is shown in Figure 2-4. Descriptions of each
part of the front panel follow.
Figure 2-4. MX2800 Front Panel
DSX-3 interfaces must be connected using coaxial cables that have the
shields grounded at both ends.
Connect the DSX-1/E1 interfaces to intra-building wiring only.
