Chapter 5. Statistics
61200290L1-1 MX2800 User Manual 5-7

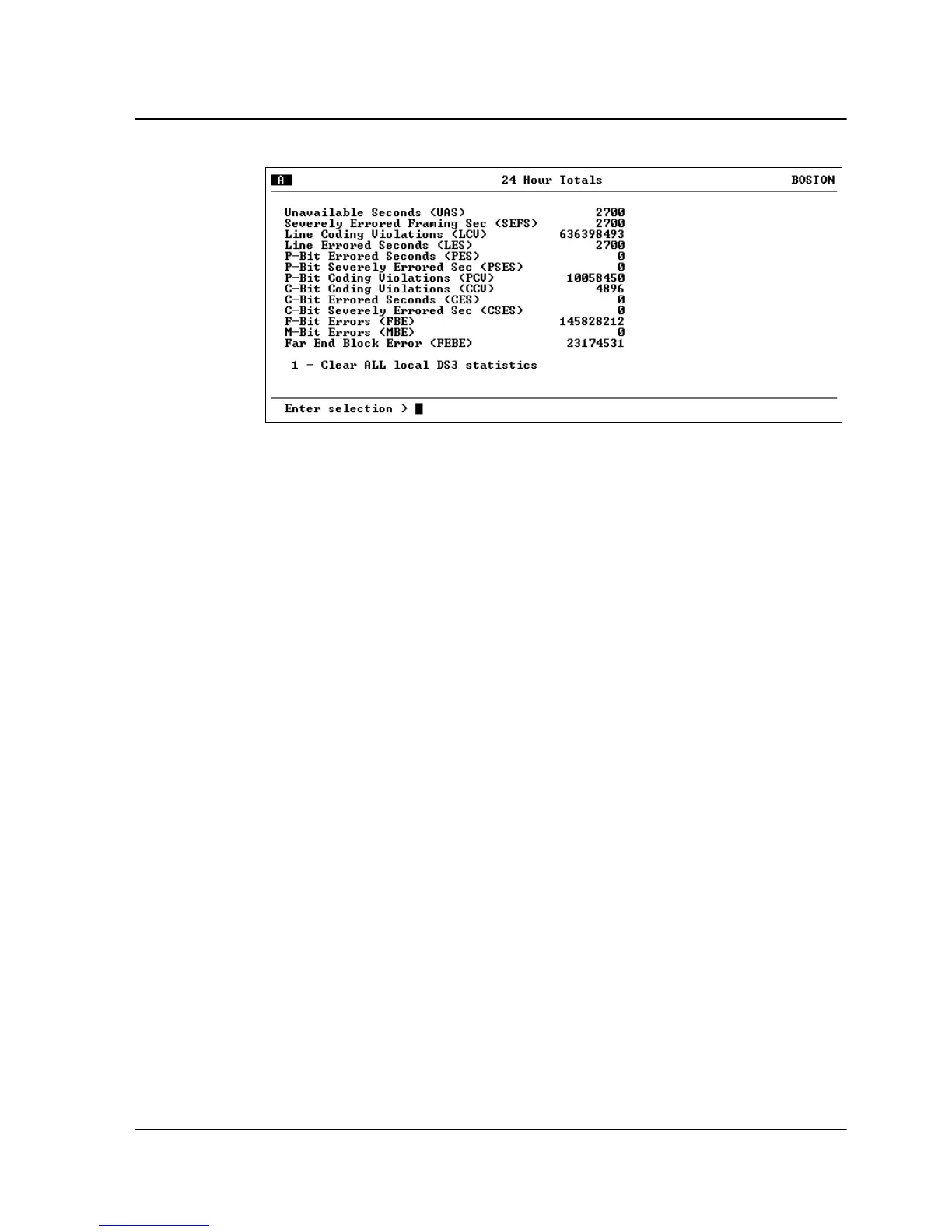

Figure 5-7. DS3 Performance Parameters (Totals)
Clear All Local DS3 Statistics/Refresh All Remote Statistics
Clears or refreshes all current information. These selections affect
all statistical information (not just the displayed screen). When
viewing the 24-hour history screen, press the down arrow key to
access this selection.
DS2 Statistics
24 Hour Alarm History
The MX2800 keeps track of RAI, OOF, and AIS alarms for each of
the seven DS2s. View alarm history information in one of the three
time period selections, or view a cumulative alarm count.
Information in these fields is for the given time period (if any) since
the last reset. The cumulative alarm count continues indefinitely
until
C
LEAR
A
LL
DS2 A
LARM
C
OUNTS
is selected. When viewing the
24-hour history menus, use the up and down arrow keys to view all
three alarm counts (RAI, OOF, and AIS). See Figure 5-8 on page 5-8
and Figure 5-9 on page 5-8.
