61200290L1-1 MX2800 User Manual 6-1
Chapter 6
Diagnostics
The
D
IAGNOSTICS
menu allows you to initiate loopback tests from
the MX2800. Figure 6-1 shows the main
D
IAGNOSTICS
menu. From
this menu select
T1/E1
,
DS3
, or
DS2 L
OOPBACKS
. Once this
selection is made, a second menu appears displaying the types of
tests available.
Descriptions and testing diagrams of the loopback tests are
provided in the following portions of this chapter:
T1/E1 Loopbacks on page 6-2
DS3 Loopbacks on page 6-7
DS2 Loopbacks on page 6-9

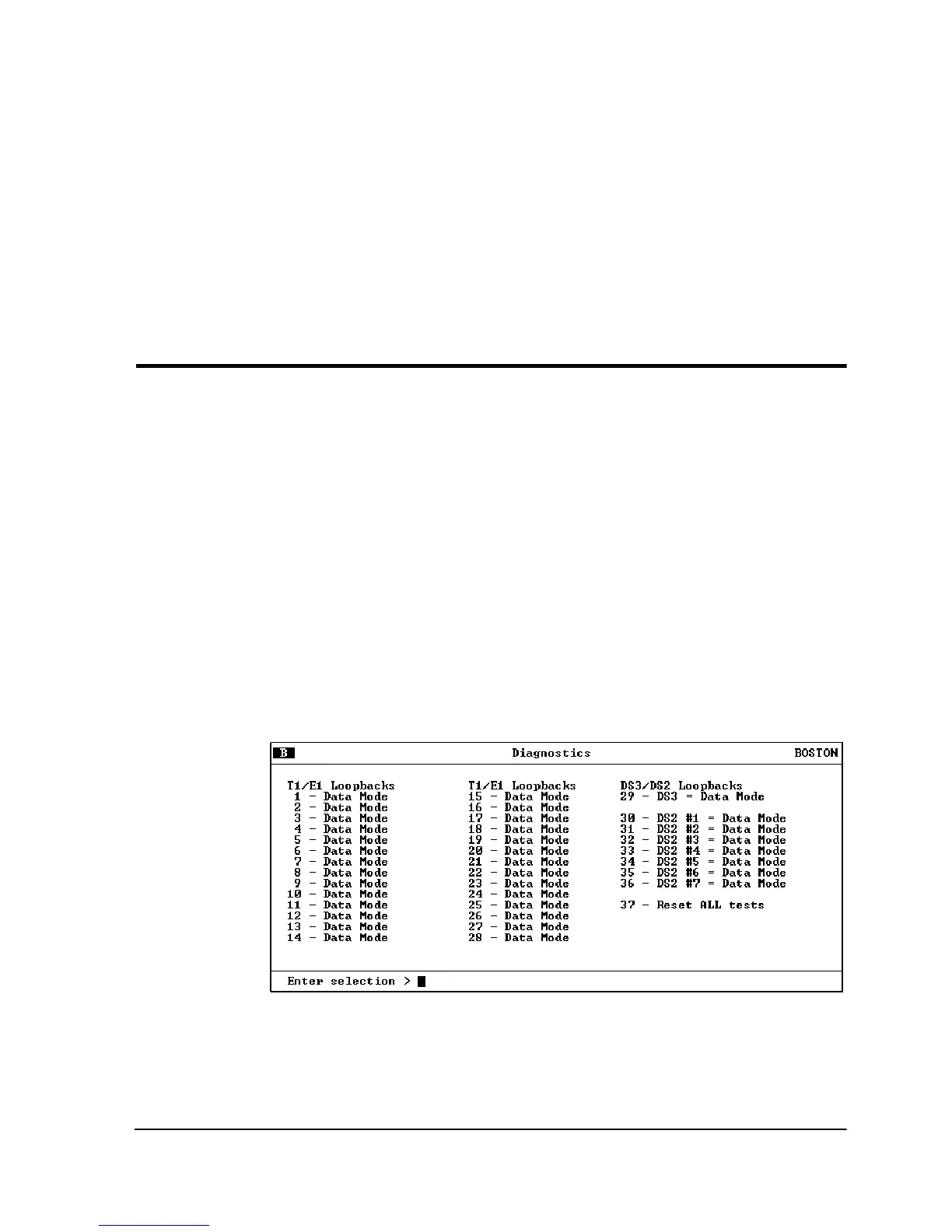

Figure 6-1. Diagnostics Main Menu
