Chapter 3. Configuration
61200290L1-1 MX2800 User Manual 3-13
Management Options
Local IP Address
Enter the MX2800 IP address. This IP address applies to the LAN or
modem port (when configured for PPP or SLIP). This address is
available from the network administrator.
Gateway IP Address
Enter the gateway IP address of the MX2800. This address is
necessary only if the MX2800 and the network manager are
connected through a gateway node. If an IP packet is to be sent to a
different network, the unit sends it to the gateway.
Subnet Mask
Enter the subnet mask of the MX2800. This address is available
from the network administrator.
Management Port
Assign the management port as either
LAN
or
M
ODEM
. The
M
ODEM
setting applies only to units equipped with an internal modem.
Dialup Options
Configure the dialup capabilities of the (see Figure 3-13). These
options apply only to units equipped with an internal modem.

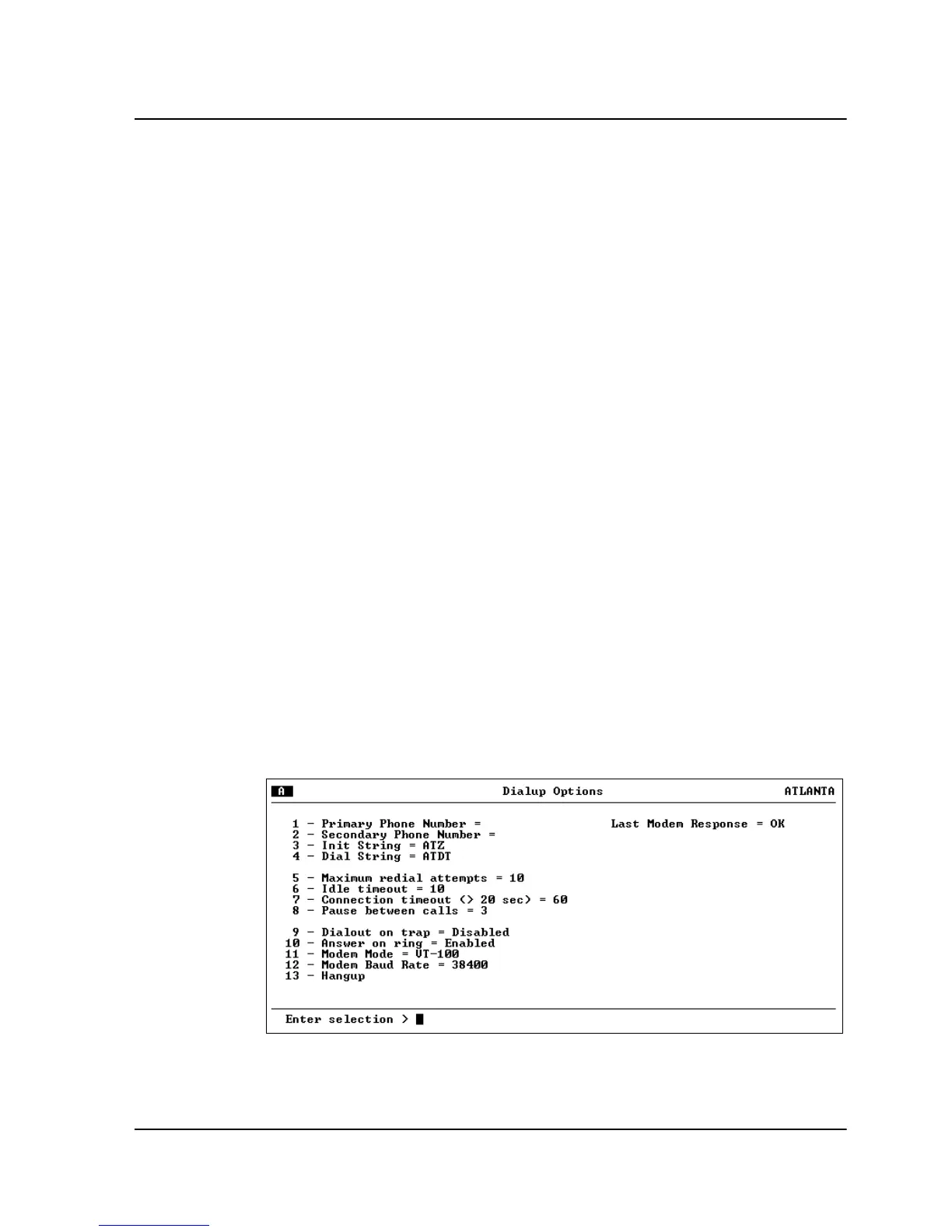

Figure 3-13. Dialup Options Menu
