Chapter 5. Statistics
5-8 MX2800 User Manual 61200290L1-1

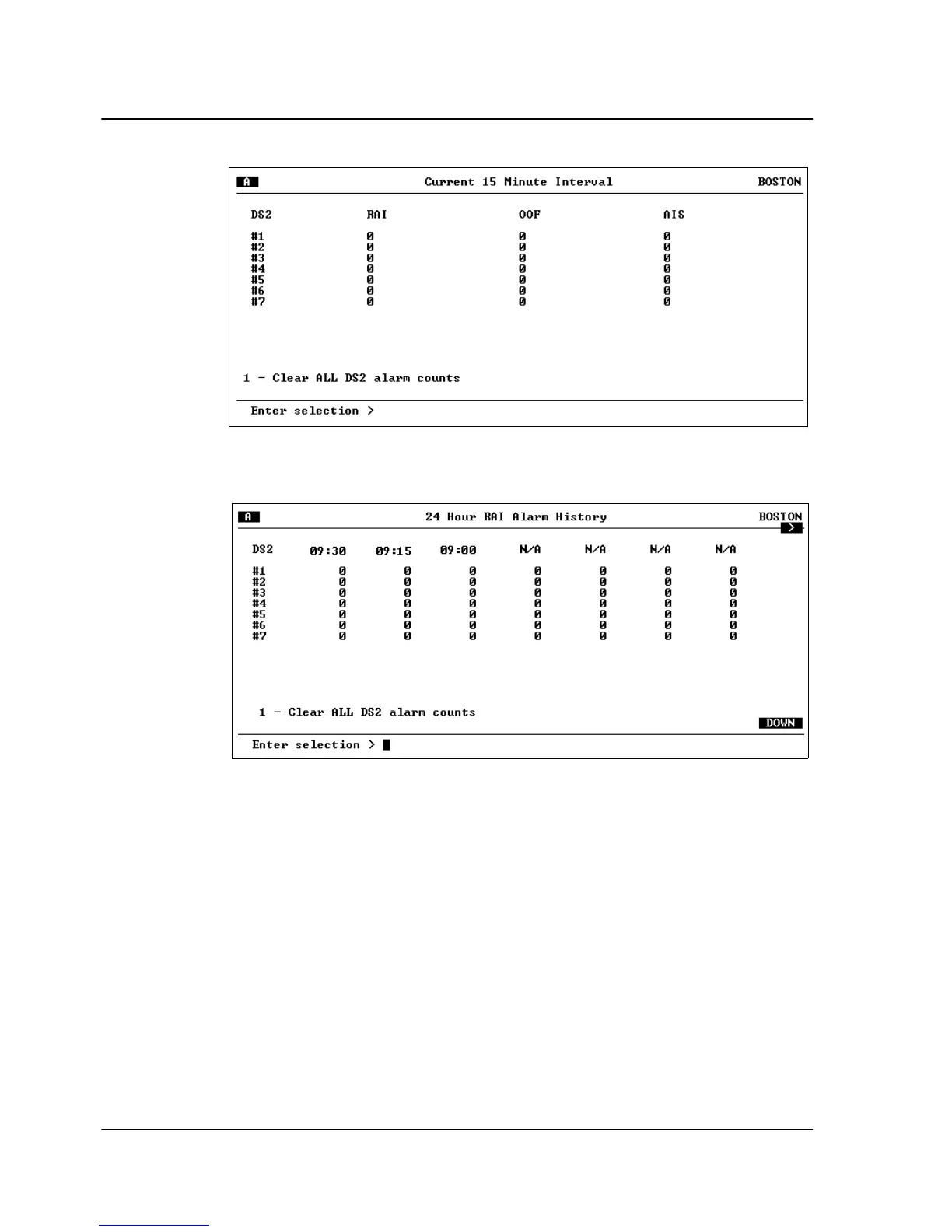

Figure 5-8. DS2 Statistics (Current 15 Minutes)
Figure 5-9. DS2 RAI 24-Hour Alarm History
Performance Parameters
The performance parameters screen displays a count of parity bit
errors and frame bit errors for the seven DS2s. View this
information in any of the three time period selections. Information
in these fields is for the given time period since the last reset. When
viewing the 24-hour history statistics screen, use the left and right
arrow keys to scroll through all 96 15-minute intervals; use the up
and down arrow keys to scroll between the
PBERR
and
FBERR
menus. See Figure 5-10 on page 5-9 and Figure 5-11 on page 5-9.
