61200290L1-1 MX2800 User Manual 4-1
Chapter 4
Status
View MX2800 status information by selecting
1-S
TATUS
from the
M
AIN
menu (see Figure 4-1). The Information for the DS3, DS2s, T1/
E1 lines, power supplies, and controller cards is provided.

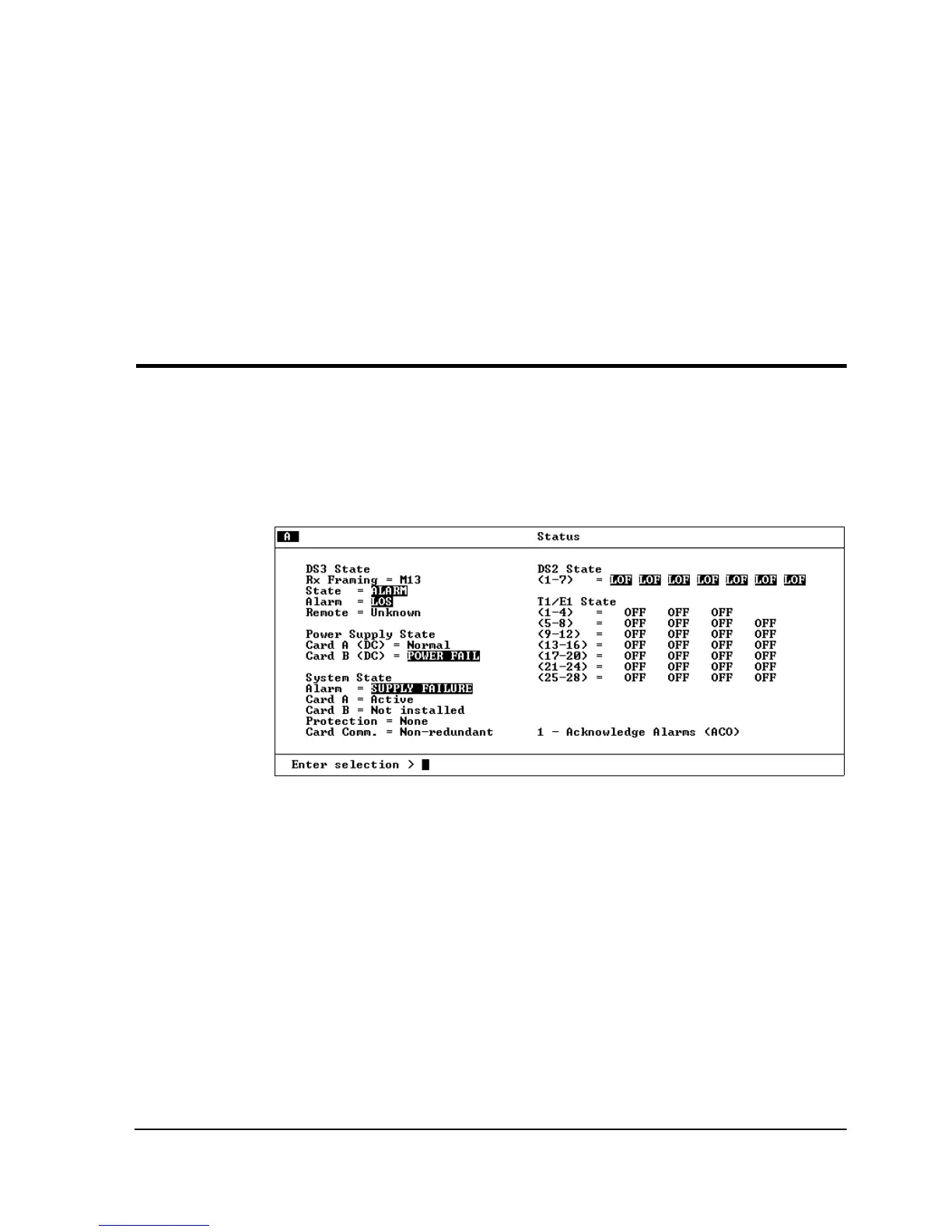

Figure 4-1. Status Menu
DS3 STATE
Displays the current state of the DS3. The following sections
describe the DS3 status fields in detail.
Rx Framing
Shows the network framing type (C-bit or M13).
