6TASYS101-1E
TOTAL ACCESS 3000/3010
SYS-101
Page 30 of 46
Total Access
®
3000/3010 System Manual© 2003, ADTRAN, Inc.
4.3.6 DSX-1 Module
The Total Access 3000/3010 DSX-1 Module provides an inter-office DSX-1 interface
and is used to drop T1 bandwidth to local central office network elements. The DSX-1
Module will only operate in conjunction with a MUX module
See Figure 15.
The DSX-1 Module is capable of operating in any access slot (1-28) of the Total
Access 3000/3010 system. Faceplate EQ and MON jacks allow for complete testing
and monitoring of the DSX-1 signal. Faceplate LED indicators display important
signal and circuit status information.
The DSX-1 module supports Module Auto-Provisioning from the System Controller
Unit (SCU). This feature allows for a replacement DSX-1 module to be provisioned
with the identical settings as the previous DSX-1 module. This ensures that a
replacement module is ready for operation upon installation without delays for manual
provisioning. Provisioning errors are also minimized.
DSX-1
PWR
NTWK
TST
DSX
ALM
TX
E
Q
RX
TX
M
O
N
RX
1181050L1

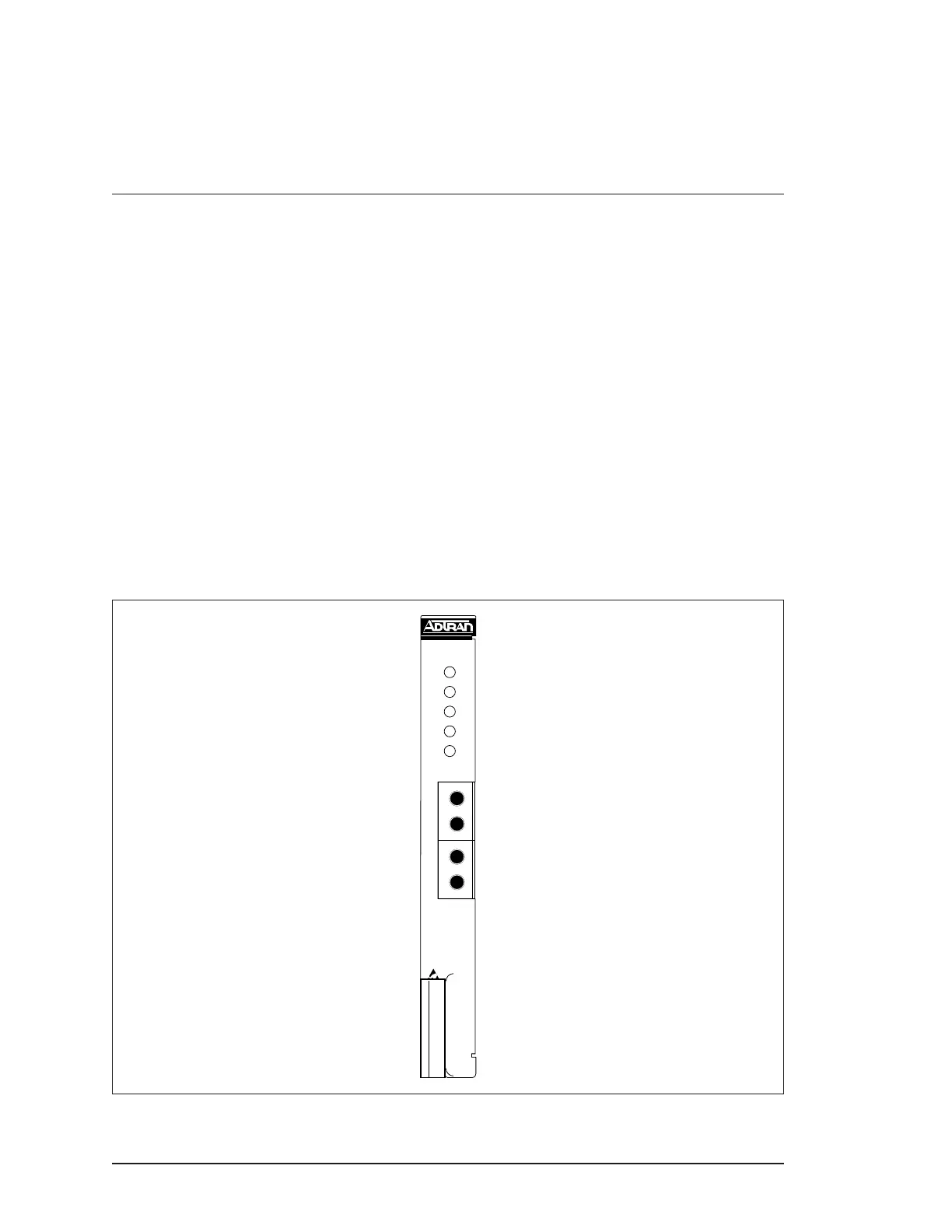

Figure 15. DSX-1 Faceplate
