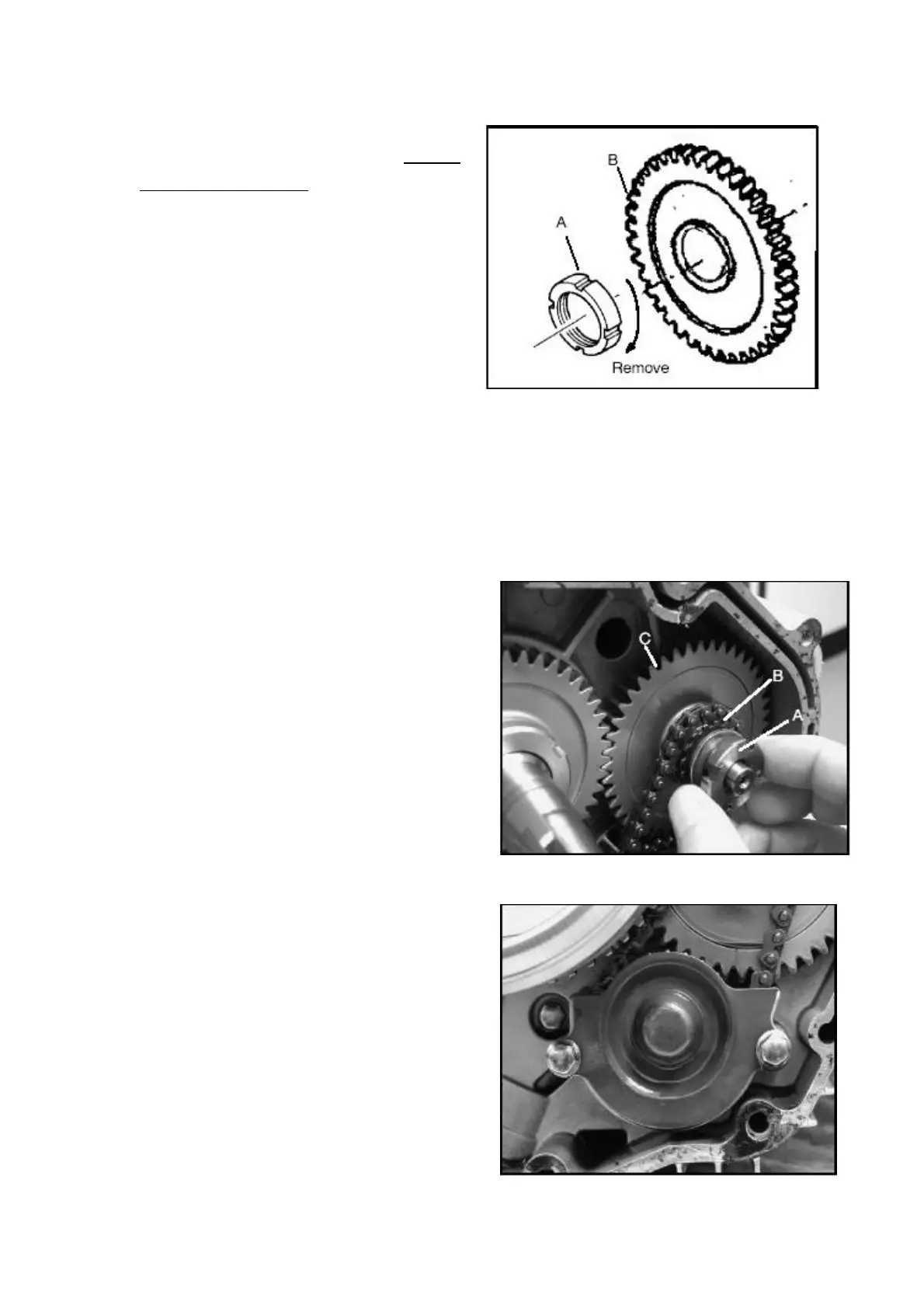

10. Using the Slotted Nut Socket, remove the
crankshaft slotted nut (A). NOTE: Slotted
nut is left hand thread.
11. Remove cam chain drive sprocket (B) and
Woodruff key from crankshaft..
12. Inspect sprocket teeth for wear or damage.
13. Inspect Woodruff key for wear.
14. Replace any worn or damaged parts.
15. Using the Slotted Nut Socket , remove the
balance shaft slotted nut (A). NOTE: Slotted
nut is a right-hand thread.
16. Remove cam chain drive sprocket (B), drive
sprocket (C) and woodruff key from balance
shaft.
17. Remove the oil pump galley cover, oil pump
gear and chain to facilitate removal of the
balance shaft sprocket.
18. Inspect sprocket teeth for wear or damage.
19. Inspect woodruff key for wear.
20. Replace any worn or damaged parts.
21. Remove the screws on the oil pump galley
cover.
