26

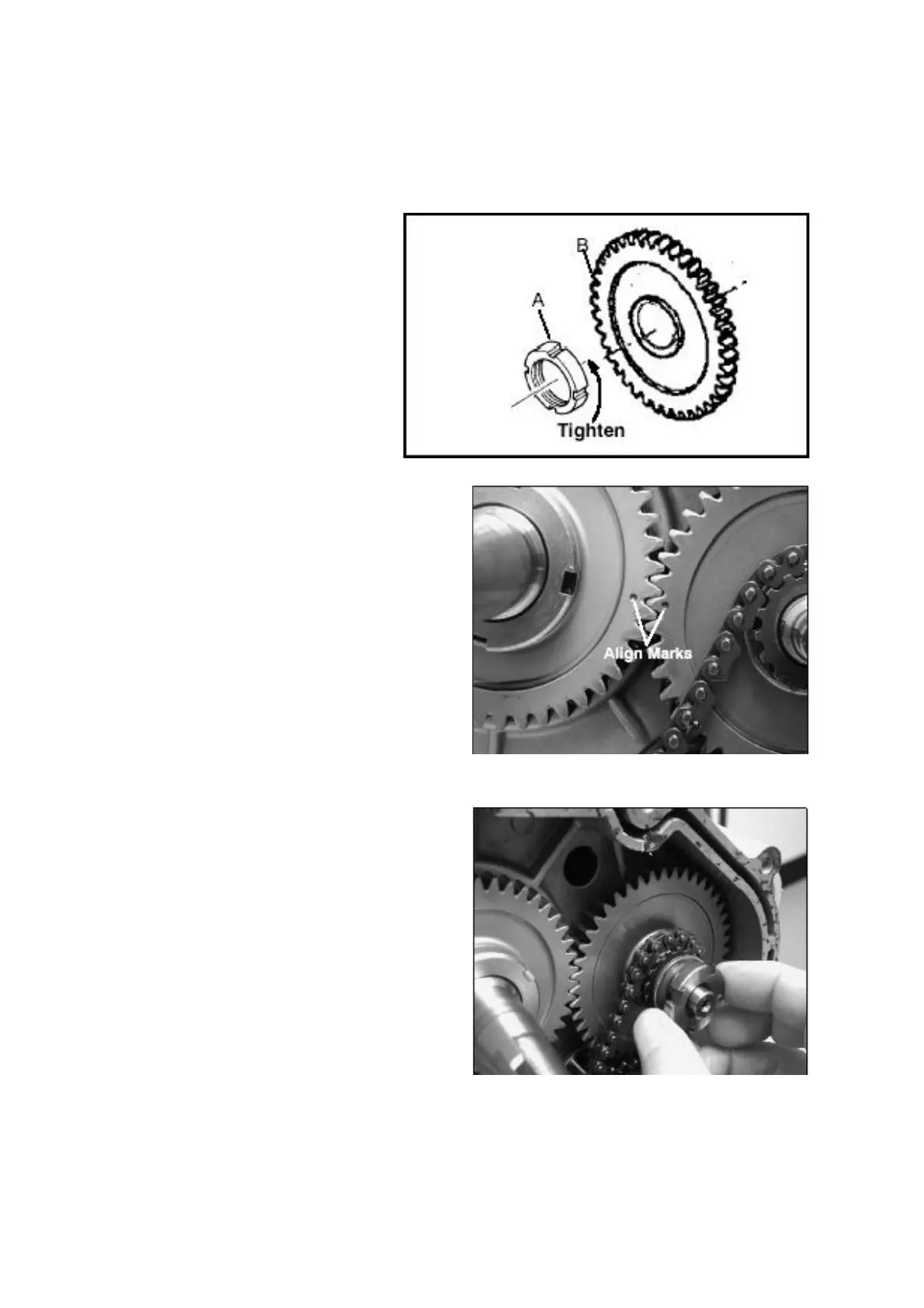

OIL PUMP ASS’Y / INSTALLATION
1. Install the crankshaft gear, woodruff key and
slotted nut.
2. Install the balance shaft gear and align the
mark with the crankshaft gear mark as
shown.
3. Install the woodruff key.
