FRONT CALIPER ASSEMBLY

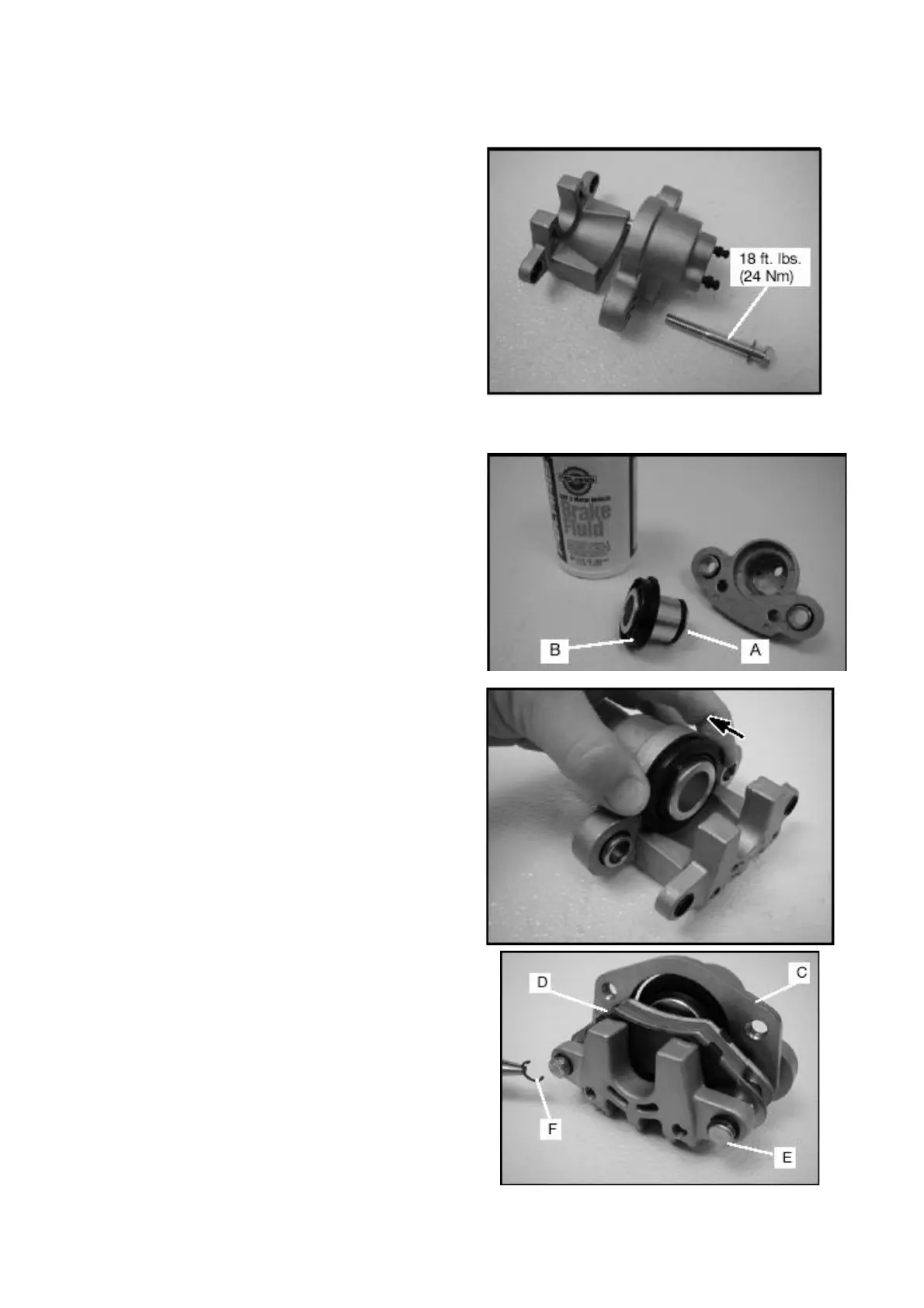

Reassemble the two caliper halves if previously
disassembled. Torque the caliper body bolts to
18 ft. lbs. (24 Nm).
Install new O-ring (A) in the caliper body.
Install the dust boot over the caliper and seat the
dust boot into caliper groove. Be sure groove is
clean and free of residue or brakes may drag.
Install piston with a twisting motion while
pushing inward. Piston should slide in and out
of bore smoothly, with light resistance.
Seat the boot securely onto the caliper body.
Install the caliper mount (C), brake pads (D),
caliper slide bolts (E), and c-clips (F).
Torque the caliper slide bolts (E) to 33 ft. lbs.
(45 Nm).
