59

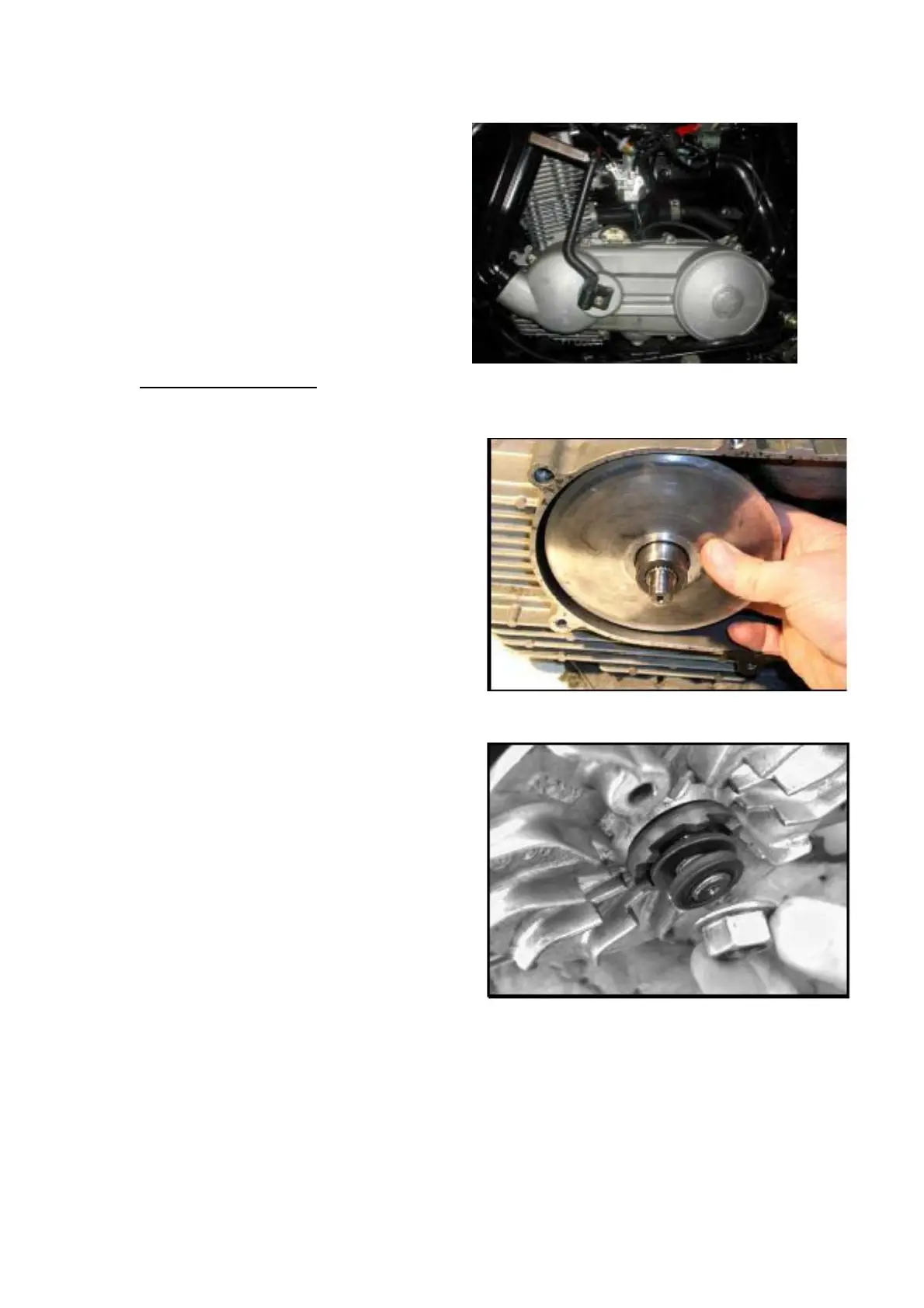

Install the kick-starter.
7.6 C.V.T REASSEMBLY
Install the driven assembly onto the
transmission input shaft. Do not tighten the
nut at this time.
Install the bushing, the primary sliding sheave,
and the cam plate assembly.
NOTE: When installing the primary sliding
sheave and the cam plate assembly, hold the
cam plate and the primary sliding sheave
together. The weight rollers will fall out if the
assembly is not installed properly.
Install the primary fixed sheave, washer,
starter pawl and nut. Do not tighten the nut at
this time
