71
FRONT BRAKE DISC REMOVAL /
REPLACEMENT

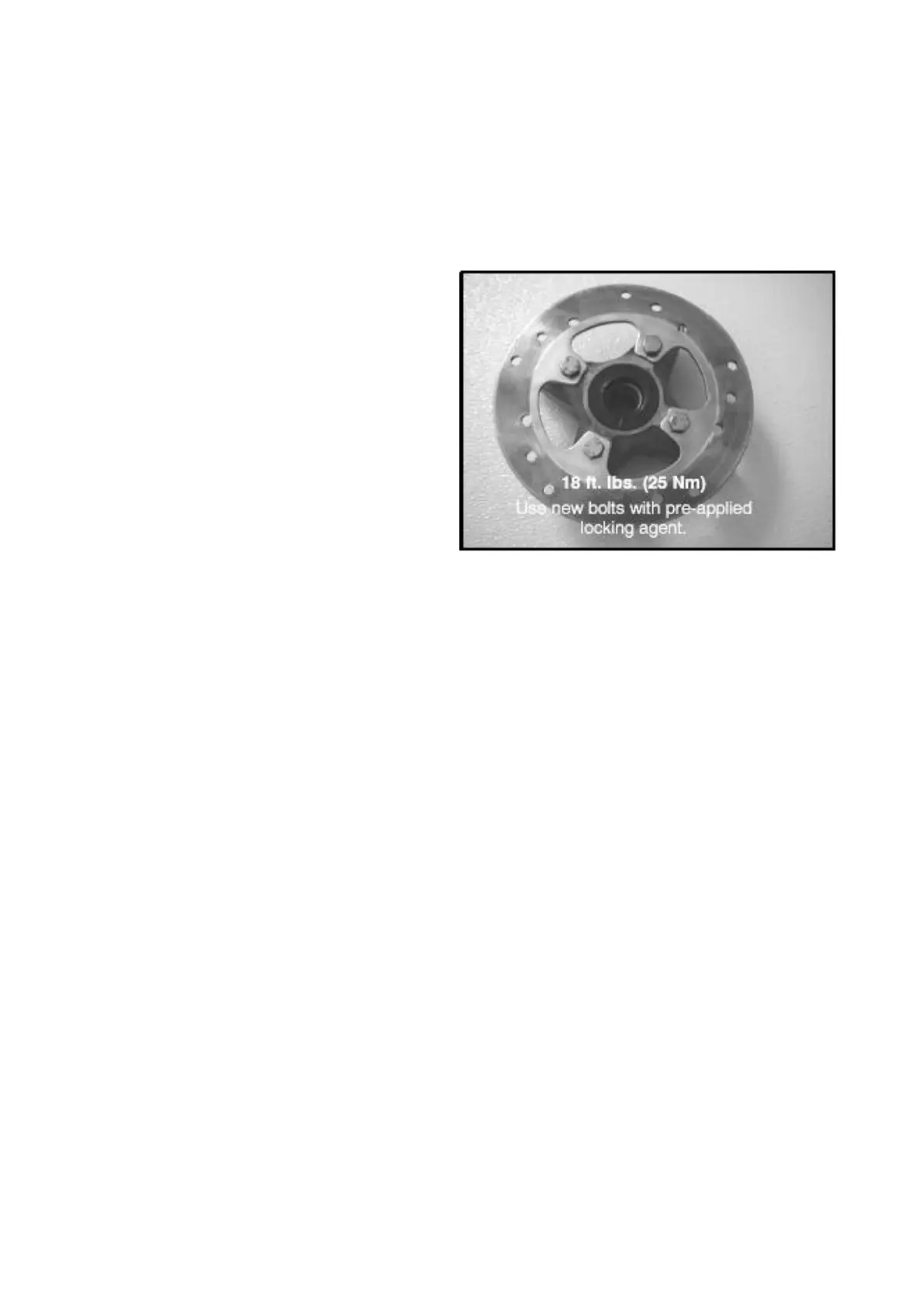

Apply heat to the hub in the area of the brake
disc mounting bolts to soften the bolt locking
agent.
Remove bolts and disc.
Clean mating surface of disc and hub.
Install disc on hub.
CAUTION: Always use new brake disc
mounting bolts. The bolts have a pre-applied
locking agent which is destroyed upon removal.
Install new bolts and tighten to specified torque.
Front Brake Disc Mounting Bolt Torque.
18 ft. lbs. (24 Nm).
FRONT CALIPER REMOVAL
CAUTION: Use care when supporting vehicle
so that it does not tip or fall. Severe injury may
occur if machine tips or falls.
Remove brake pads.
To Next Page
