78

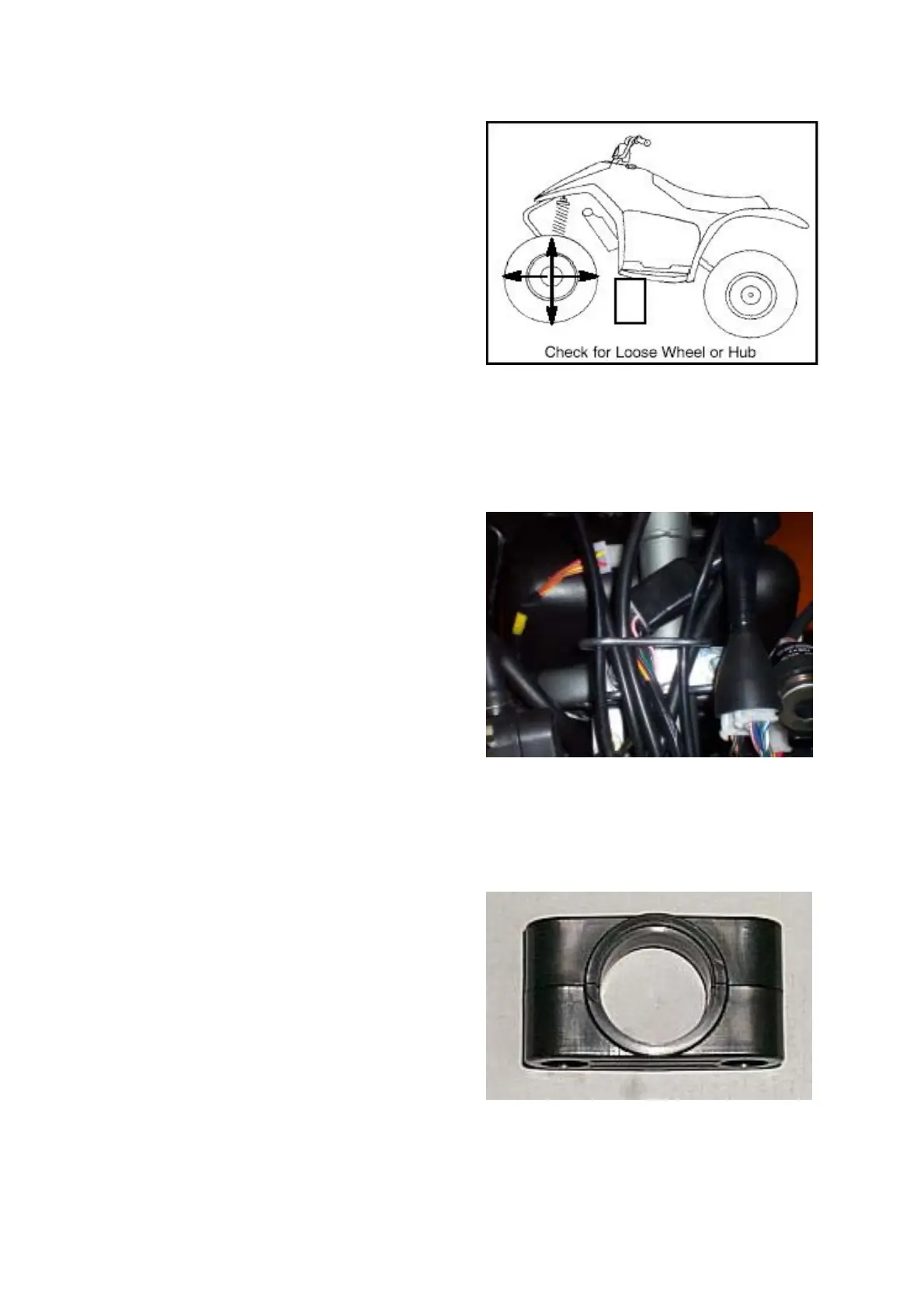

Elevate front end of machine so front
wheels are off the ground. Check for any
looseness in front hub / wheel assembly by
grasping the tire firmly at top and bottom
first, and then at front and rear. Try to
move the wheel and hub by pushing inward
and pulling outward.
If abnormal movement is detected, inspect the
hub and wheel assembly to determine the cause.
Steering shaft removal
Remove the handle bar cover and handle bar.
Remove the front fender.
Remove handlebar lower holder.
Unscrew steering shaft holder bolt, remove
steering shaft holder.
Take off the cotter pin below steering shaft.
Unscrew the steering shaft fix out below shaft.
Pull steering shaft carefully.
Steering shaft holder inspection
Remove the steering shaft.
Remove the bushing from the shaft.
Inspect the bushing for damage or wear, replace
if necessary.
Measure the bushing inner diameter.
Maximum limit: Ø39.5 mm
