5.5 CYLINDER HEAD INSTALLATION

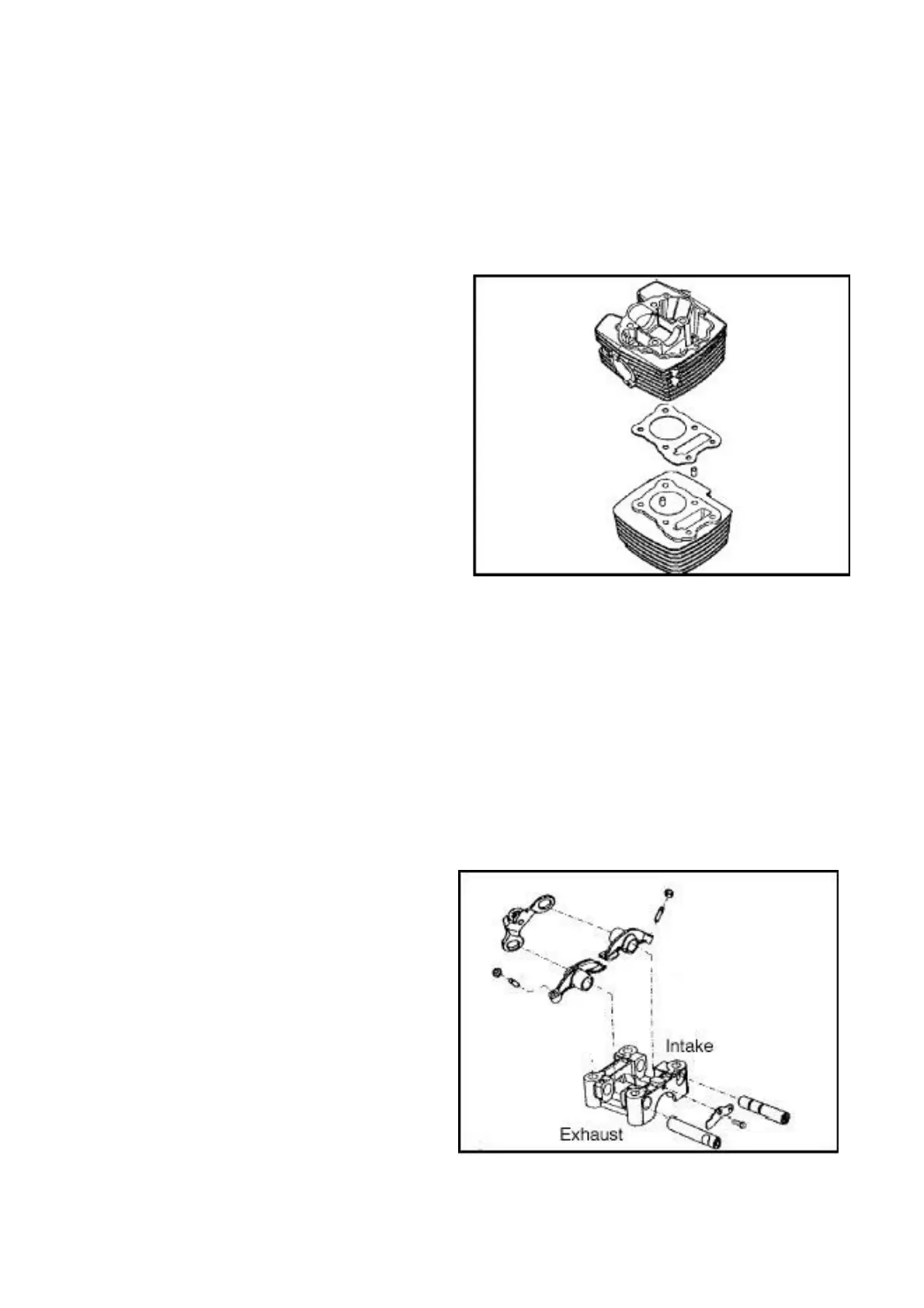

Install the dowel pin(s) and a new cylinder
head gasket.
Pull the cam chain through the cylinder head
chain room and secure with mechanic’s wire.
Place the cylinder head on the cylinder.
Install the two 6 mm bolts, but do not tighten.
Install the cam according to the “Cam shaft
Timing” procedure. Verify the cam chain is in
Place around the crankshaft gear.
NOTE: Verify camshaft timing procedure
before installing the rocker shaft assembly.
CAMSHAFT ASS’Y INSTALLATION
Install the rocker arms and rocker arm shafts
into the camshaft holder.
