Aeon Cobra 220 User Manual

45

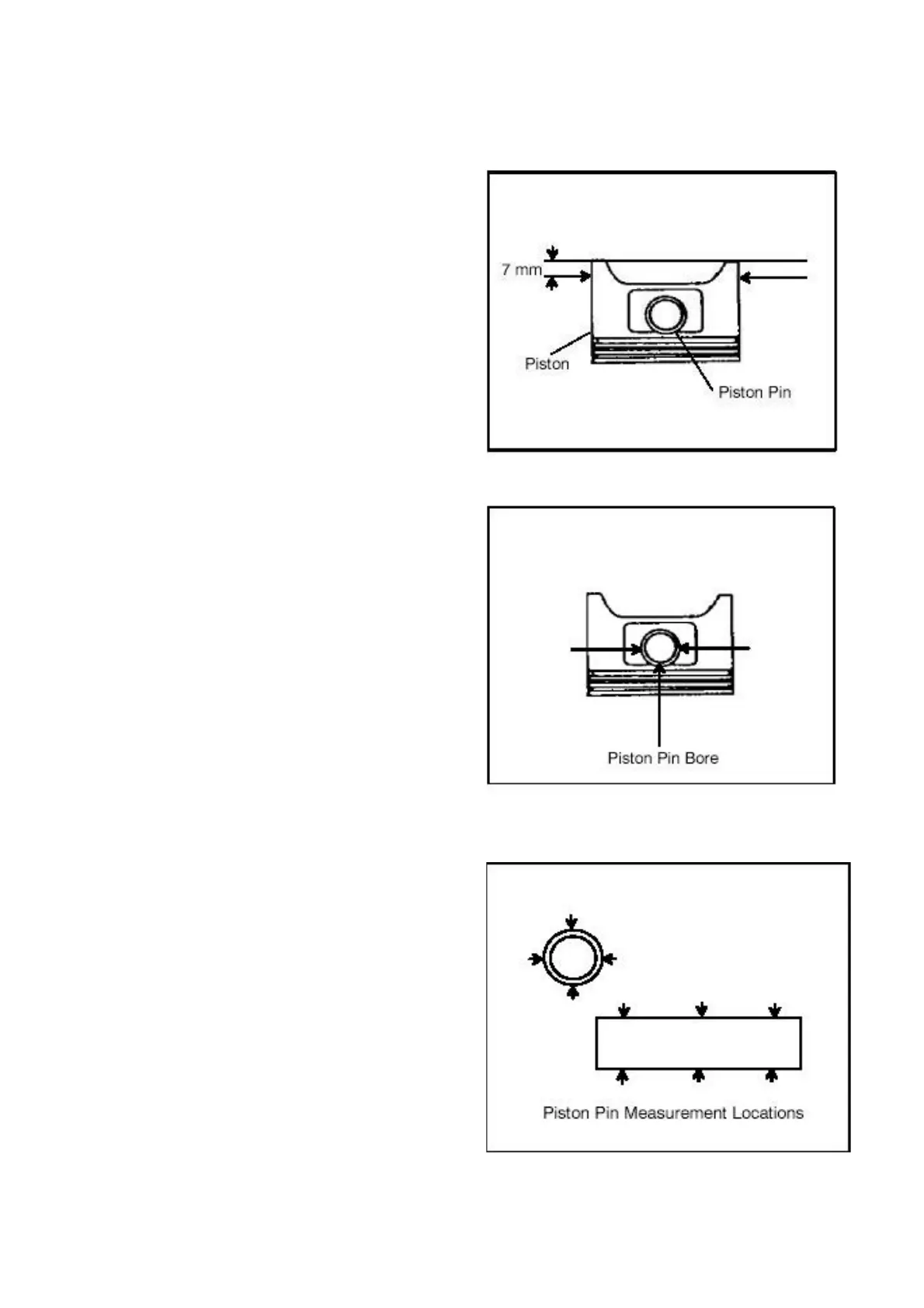

PISTON INSPECTION
Measure piston outside diameter at a point 7
mm up from the bottom of the piston at a right
angle to the direction of the piston pin.
Subtract this measurement from the maximum
cylinder measurement obtained earlier.
Measure piston pin bore. Replace piston if
out-of-round.
Measure piston pin O.D. Replace piston pin if
out-of-round.
