7.3 C.V.T SYSTEM DISASSEMBLY /
DRIVE CLUTCH
Remove the side cover and drive belt.
Remove the lock nut, washer, and the kick-start
pawl from the crankshaft.

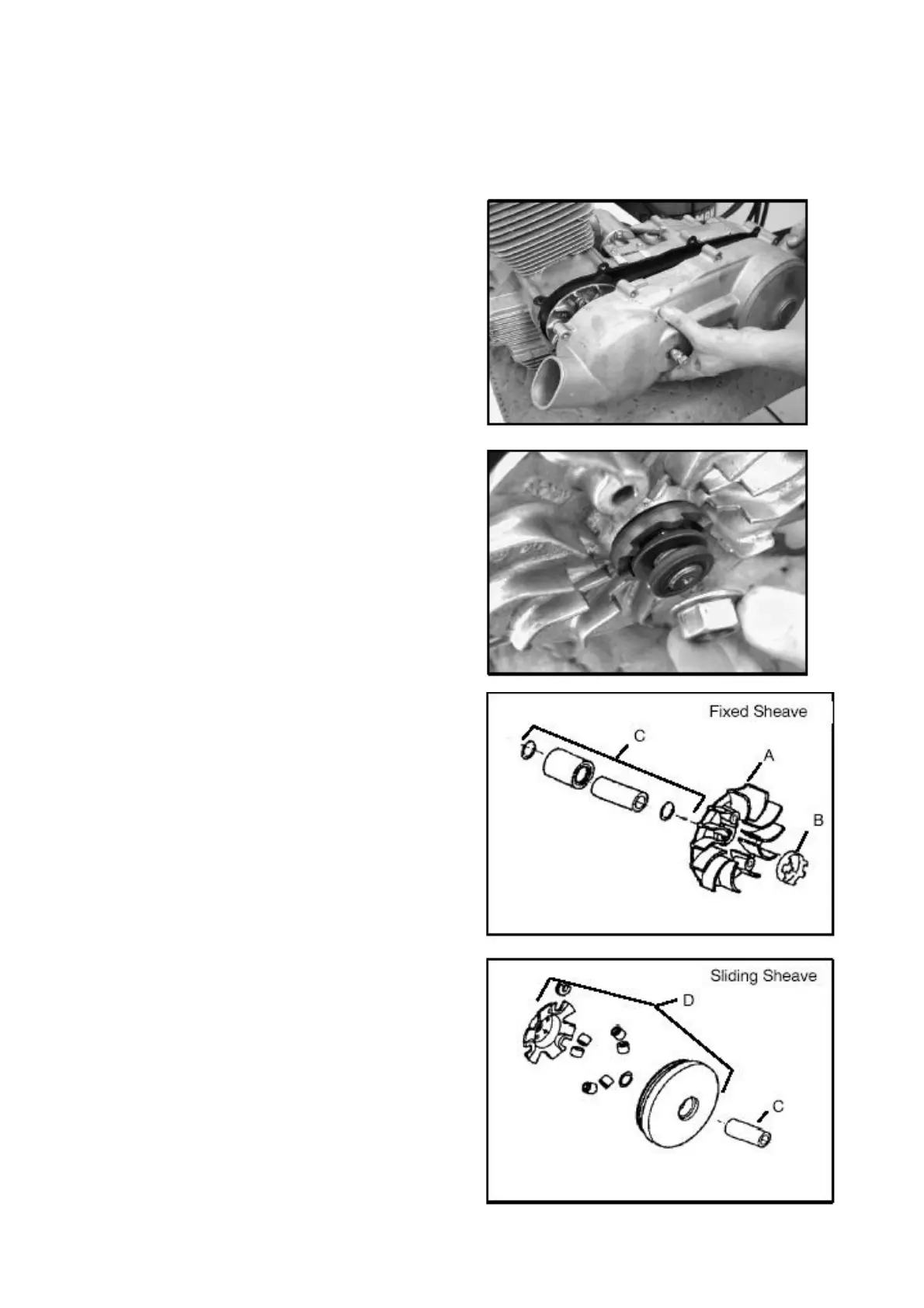

Remove the fixed sheave (A), starter pawl (B)
and slide bushing (C). Inspect the fixed sheave
and slide bushing for scoring, grooving, or
abnormal wear. Replace any worn or damaged
parts.
Remove the primary sliding sheave and cam
plate assembly (D) as one assembly. Inspect the
movable sheave for scoring, grooving, or
abnormal wear.
