11.4 ALTERNATOR EXCITER COIL
Remove the seat/ rear fender and front fender. disconnect the exciter coil wire.
Measure the resistance between the yellow or white or green wire and ground.
STANDARD : 467-700Ω
Electrolyte is poisonous. Drink large quantities of water or milk and call a physician if
swallowed.
11.5 BATTERY CAUTION
The battery gives off explosive gases; keep sparks, flames and cigarettes away. Provide
adequate ventilation when charging or using the battery in an open area. The battery contains
sulfuric acid (electrolyte). Contact with skin or eyes may cause severe burns. Wear protective
clothing and a face shield. Electrolyte is poisonous. Drink large quantities of water or milk
and call a physician, if swallowed.

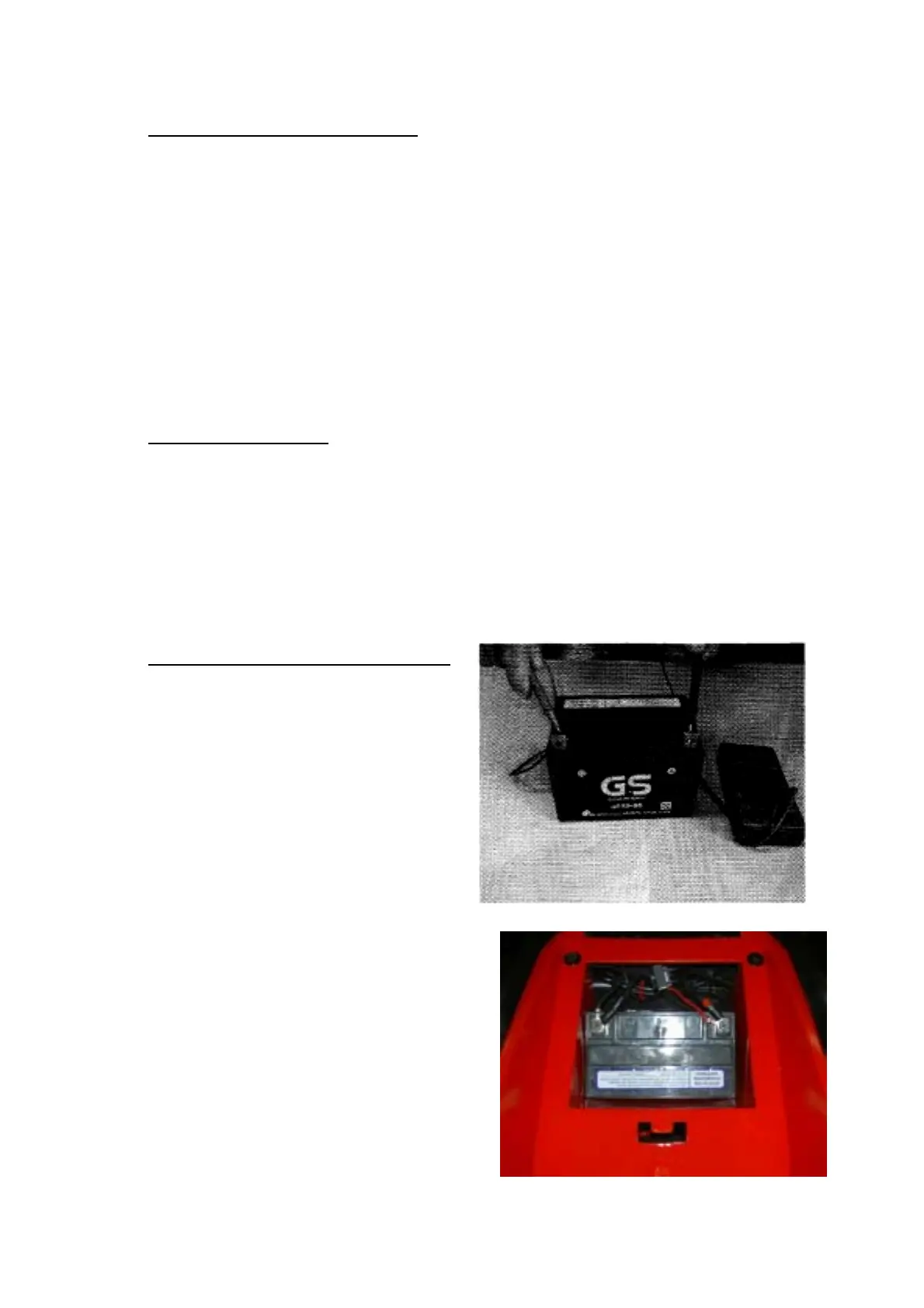

11.6 BATTERY VOLTAGE INSPECTION
Battery is under the seat; you can see this
battery after removing the seat.
Measure the battery voltage using a voltmeter.
VOLTAGE: Fully charged : 13.1 V
Undercharged : Below 12.0 V
BATTERY REMOVAL
Remove the seat, then you can see the battery.
Disconnect the negative cable and then the
position cable and remove the battery.
BATTERY INSTALLATION
Install the battery in the reverse order of
removal. After installing the battery, terminals
with clean grease.
