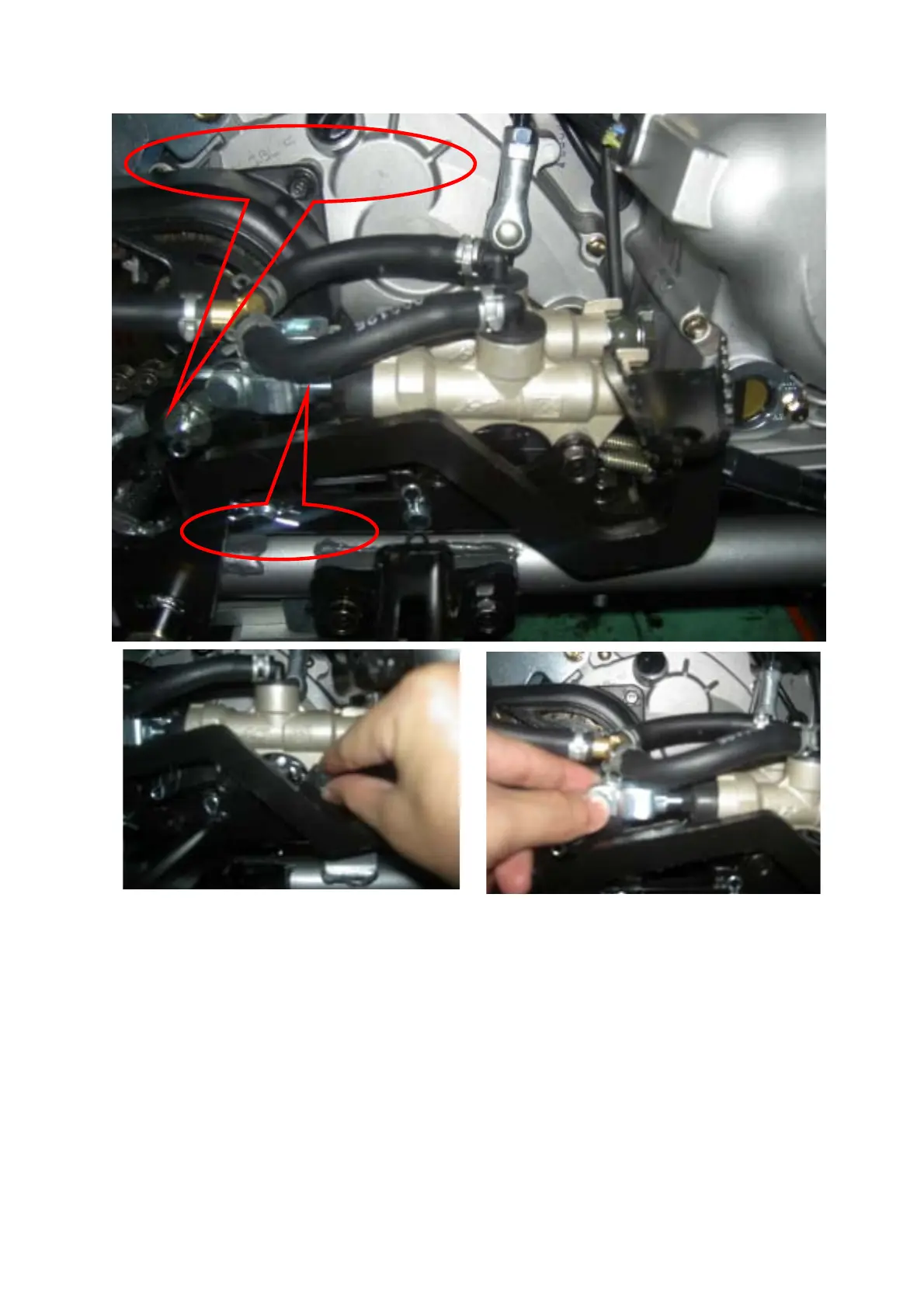

(STEP.2) The setup of the adjusting nut of the brake pump:
1. The brake pedal should be in the highest location under the function of the returning
spring.
2. The adjusting nut changes the distance between the brake pump and the hydraulic
cylinder driving rod. Make the nut touch the surface of the rod and revolve 1 circle
(360°), then confirm the nut location and spin the rod till the nut is locked.
3. Notice: If adjust the nut over 1 circle, it might result in the brake pump malfunction and jam
the brake.
Hydraulic Clyinder Driving
Rod
Adjusting Bolt
