89

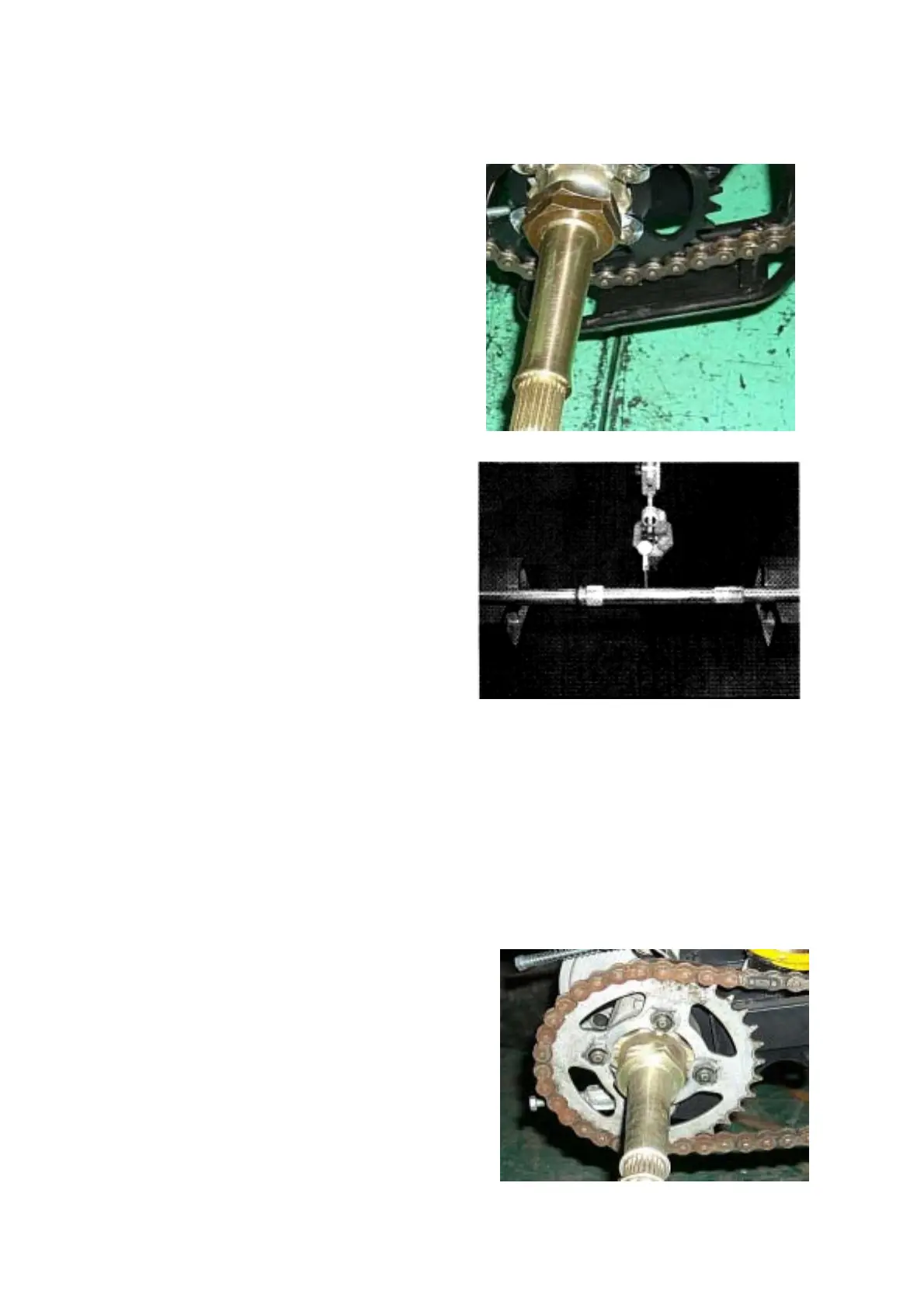

Disassemble the driven sprocket, axle and
sprocket collar.
Check the driven sprocket for damage or wear.
Replace if necessary.
Let the rear axle lie in V-blocks and check the
runout.
The runout limit is 0.5 mm.
Check the turning of inner race of bearing with
fingers. The bearings should turn smoothly and
quietly. Replace if necessary.
Also check that the bearing outer race fits tightly
in the axle holder. Replace if necessary.
NOTE: Replace the bearings in pairs.
Installation
Add grease to the dust seal lips and install dust
seals. Assemble the rear axle and the driven
sprocket.
