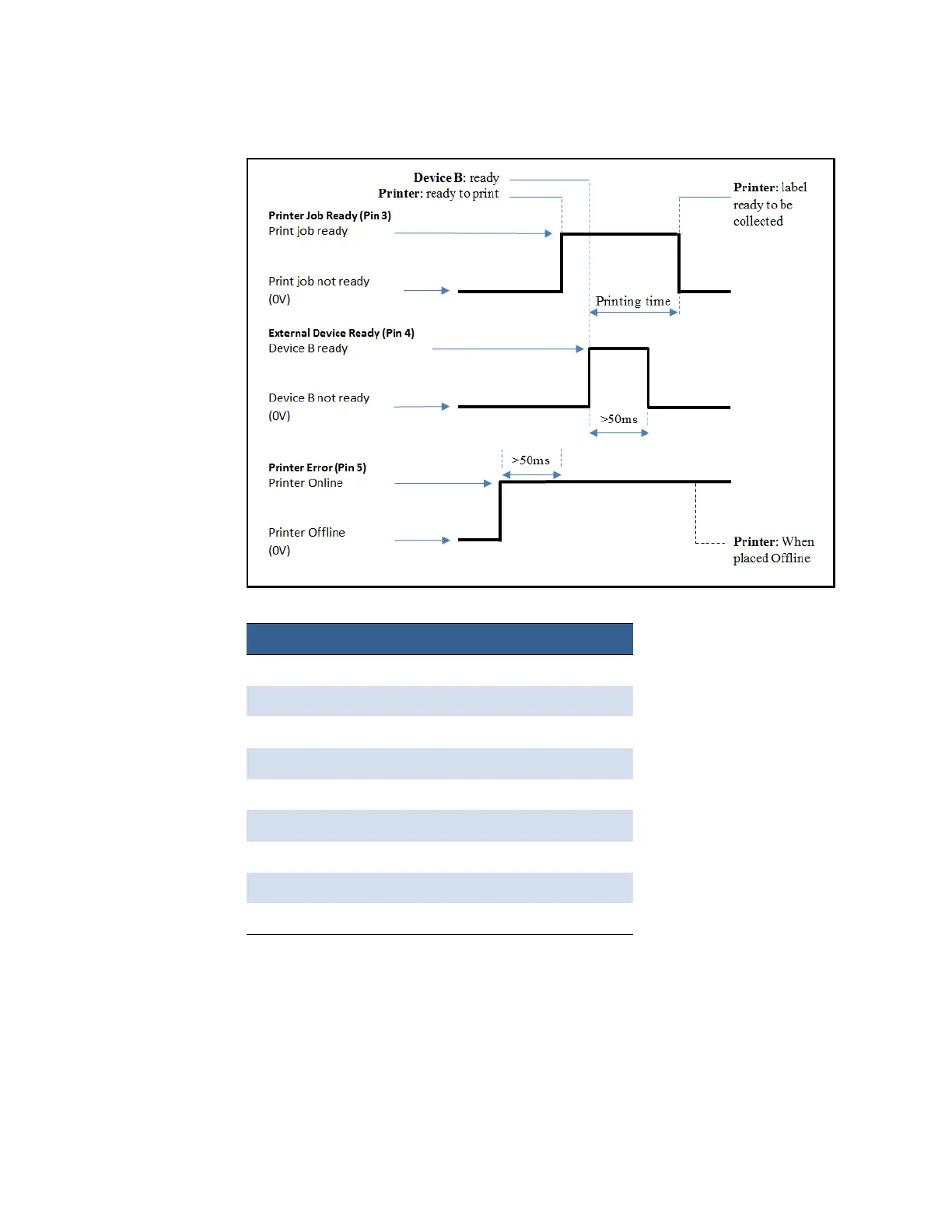

Figure11TimingDiagram
Table5
GPIOPinAssignment(D‐sub9‐pinConnector)
Pin SignalDescription
1 HIGH(3.3V)
2 ADC5
3
Printjobready(output)(GPIOA25)
4 Externaldeviceready(input)(GPIOD04)
5
Printererror(output)(GPIOD08)
6 LOW(0V)
7
NC
8 NC
9 NC
