1100 Series DAD and MWD User Manual 157
Parts and Materials for Maintenance 9

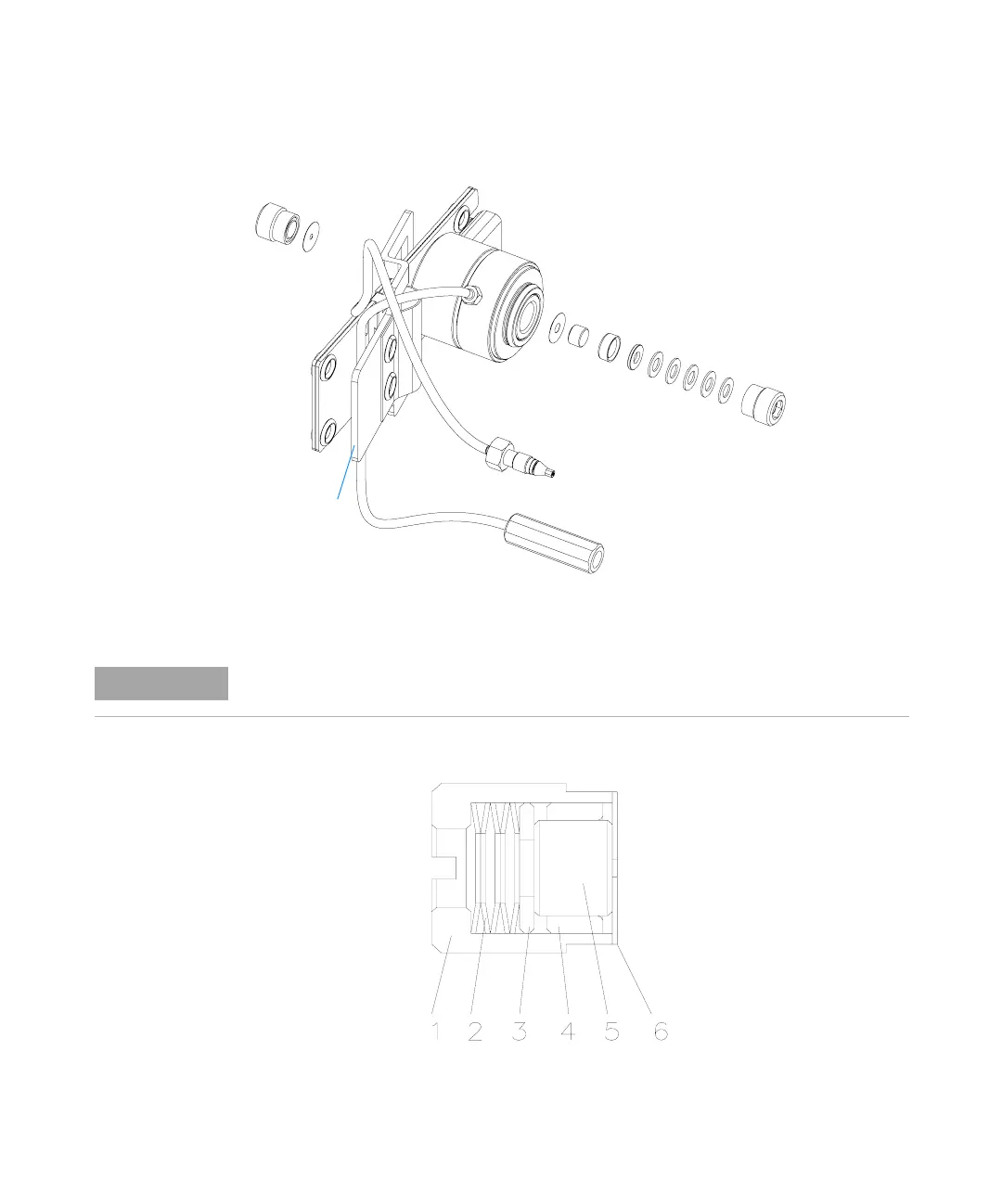

Figure 70 Standard Flow Cell Parts
1
2
3
4
5
6
7
8
11
9
10
NOTE
Gaskets # 6 and #7 have different hole diameters.
Figure 71 Orientation of Spring Washers.
1 - window screw
2 - spring washers
3 - compression washer
4 - window holder
5 - quartz window
6 - Gasket
