1100 Series DAD and MWD User Manual 75

Using the Detector 4

Online Spectra

1 To view the online spectra during the run select Online Spectra.

2 Change the absorbance and wavelength range according your needs.

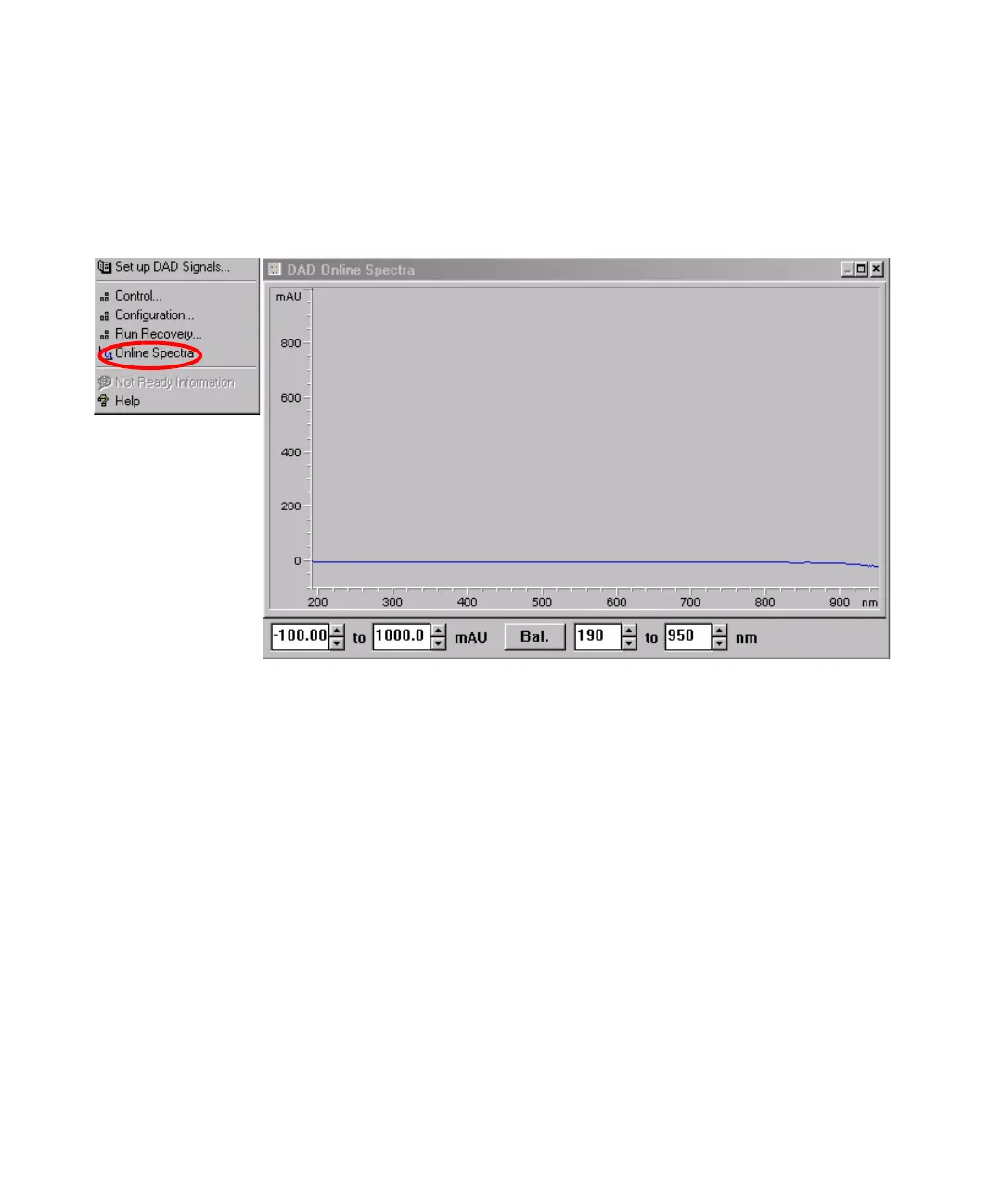

Figure 44 Online Spectra Window
