32 1100 Series DAD and MWD User Manual
3 LAN Configuration
What you have to do first
The G1315C DAD and G1365C MWD have an on-board LAN communication
interface.
1 Note the MAC (Media Access Control) address for further reference. The
MAC or hardware address of the LAN interfaces is a world wide unique
identifier. No other network device will have the same hardware address.
The MAC address can be found on a label at the rear of the detector
underneath the configuration switch (see Figure 6).
Figure 5 MAC-Label
2 Connect the instrument's LAN interface (see Figure 6) to
a the PC network card using a crossover network cable (point-to-point) or
b a hub or switch using a standard LAN cable.
Part number of the detector main board
Revision Code, Vendor, Year and Week of assembly
MAC address
Country of Origin

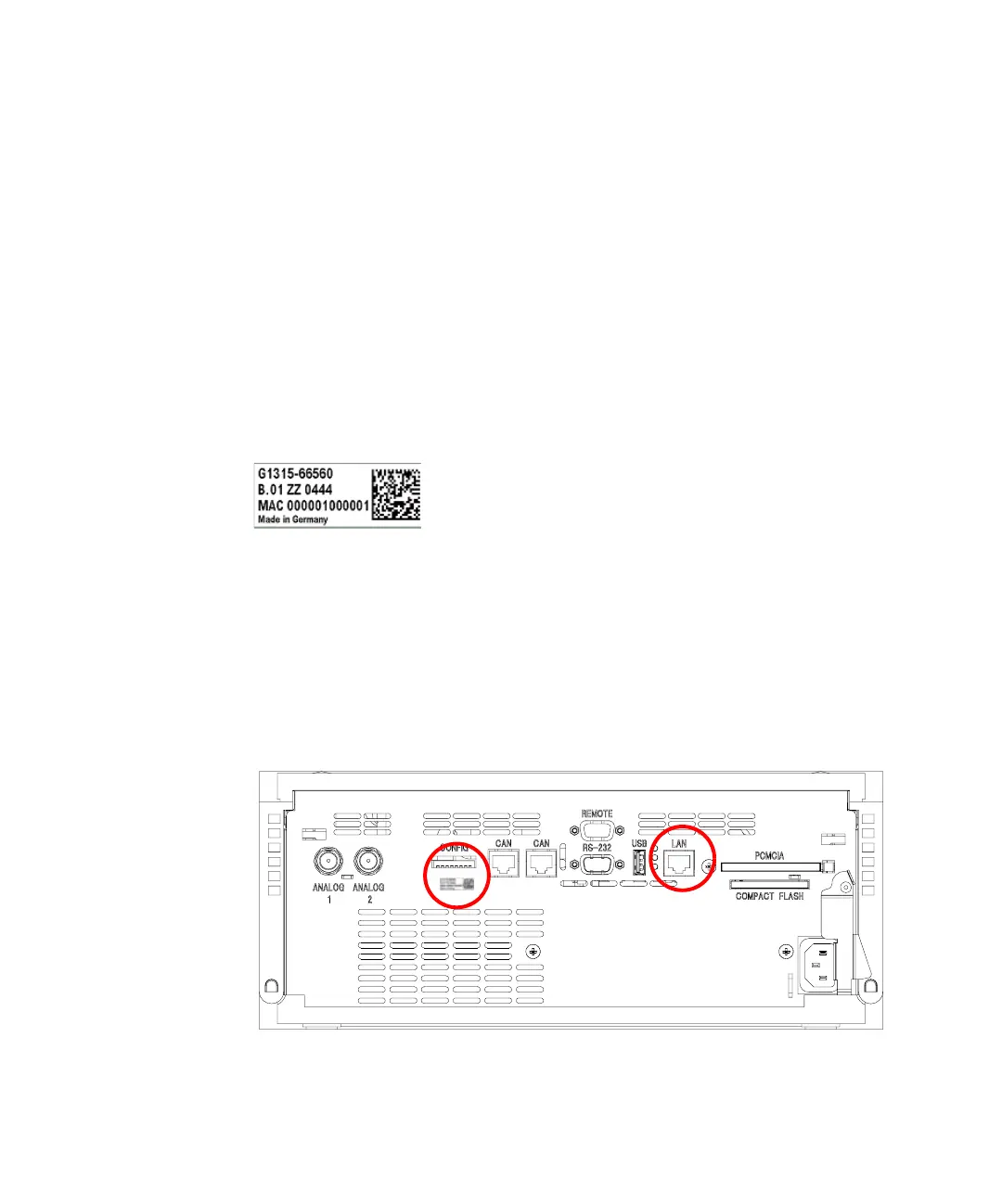

Figure 6 Location of LAN interface and MAC label
