1100 Series DAD and MWD User Manual 73
Using the Detector 4
Special Settings of the Detector
In this chapter special settings of the G1315C DAD and G1365C MWD are
described (based on the Agilent ChemStation B.01.03).
Control Settings

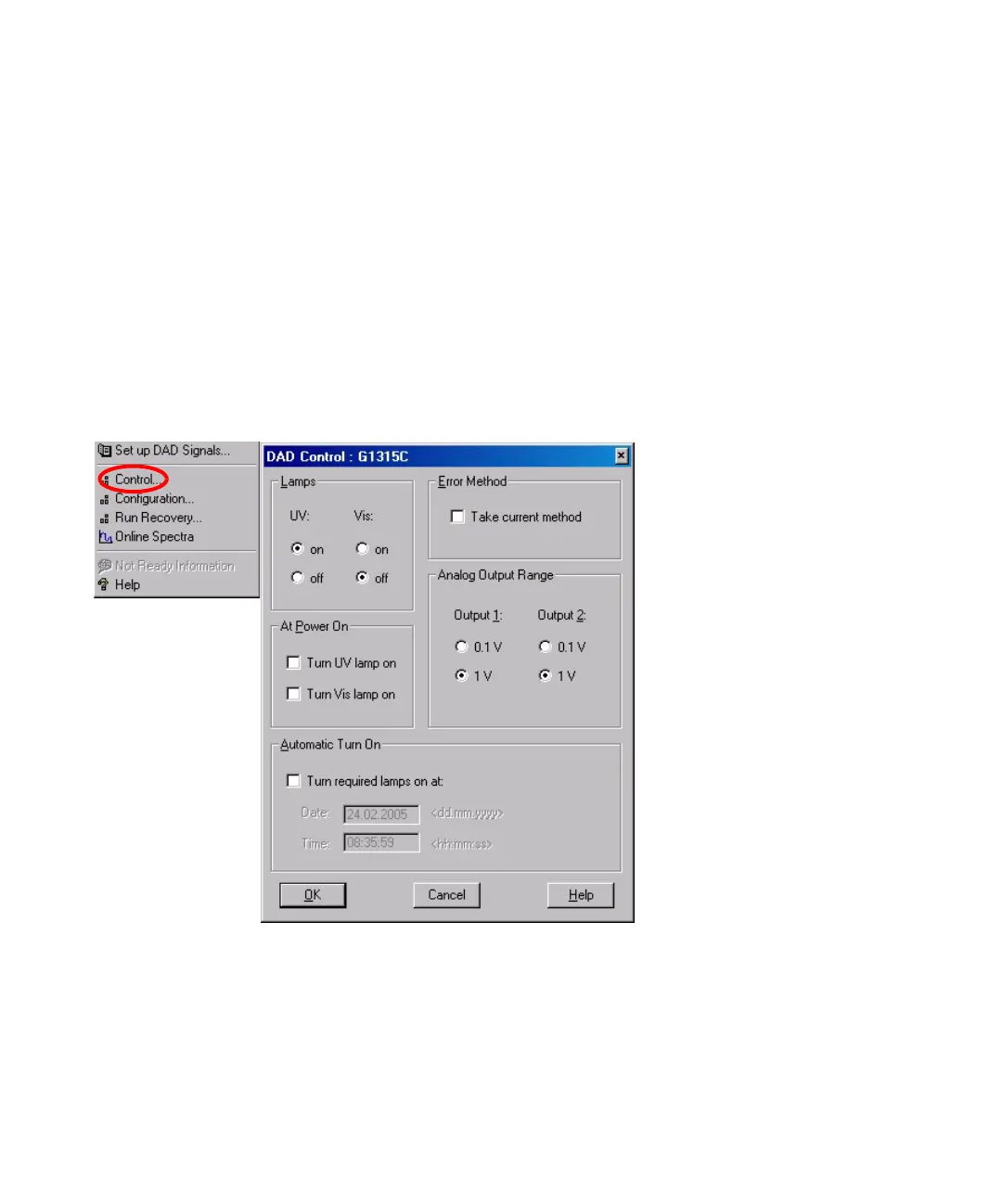

Figure 42 Detector control settings
•Lamps: turn on and off of UV-
and Vis lamp.
•At Power On: automatic lamp-on
at power on.
• Error Method: take error method
or current method (in case of an
error).
• Analog Output Range: can be
set to either 100 mV or 1 V full
scale, see also “Analog Output
Settings” on page 79.
• Automatic Turn On: lamps can
be programmed (detector must
be on for this).
•Help: online help.
