Agilent Technologies 1260 Infinity G1315D User Manual

186 Agilent 1260 Infinity DAD and MWD User Manual
9 Maintenance
Replacing Capillaries on a Standard Flow Cell
11

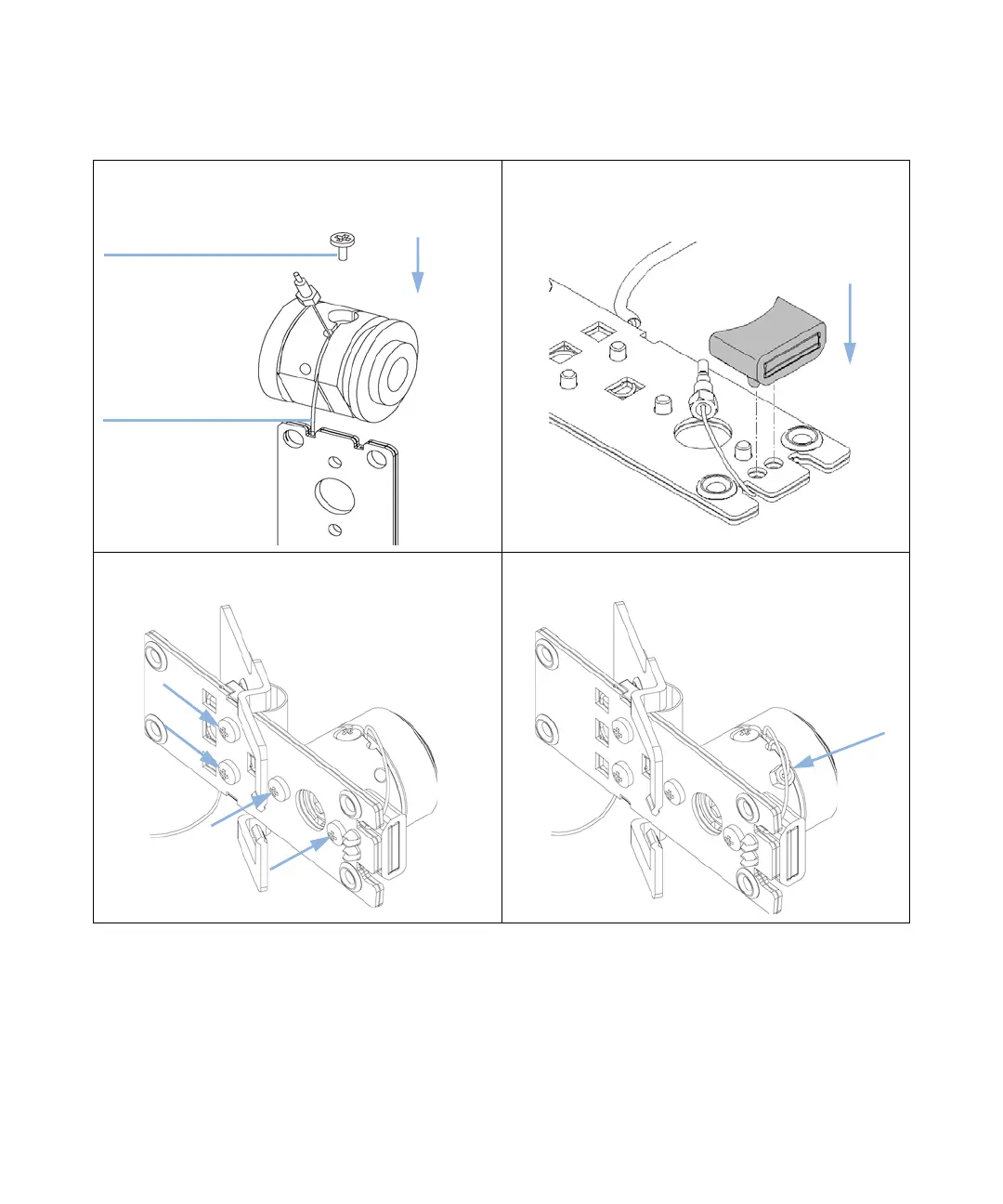

Insert the fixing screw, so that the capillary cannot leave
the grove.
12 Carefully insert the I.D. tag into the new heat exchanger.
Shown is the default orientation. See Note at the
beginning of this section.
13 Fix the heat exchanger to the clamp unit and the flow
cell body to the heat exchanger.
14 Fix the inlet capillary to the flow cell body handtight first.
Then do a 1/4 turn with a 4-mm wrench.
6FUHZ
,QOHWFDSLOODU\
ZLWKKHDW
H[FKDQJHU

Agilent Technologies 1260 Infinity G1315D Specifications

General

Brand	Agilent Technologies
Model	1260 Infinity G1315D
Category	Laboratory Equipment
Language	English
