74 Agilent 1260 Infinity DAD and MWD User Manual
4 Using the Detector
Setting up an Analysis
12 Click the button and select Change... to open the Signal Plot information.
Select the Pump: Pressure and the DAD A: Signal 254,4 as signals. Change the
Y-range for the DAD to 1 mAU and the offset to 20% and the pressure offset
to 50%. The X-axis range should be 15 minutes. Press OK to exit this screen.

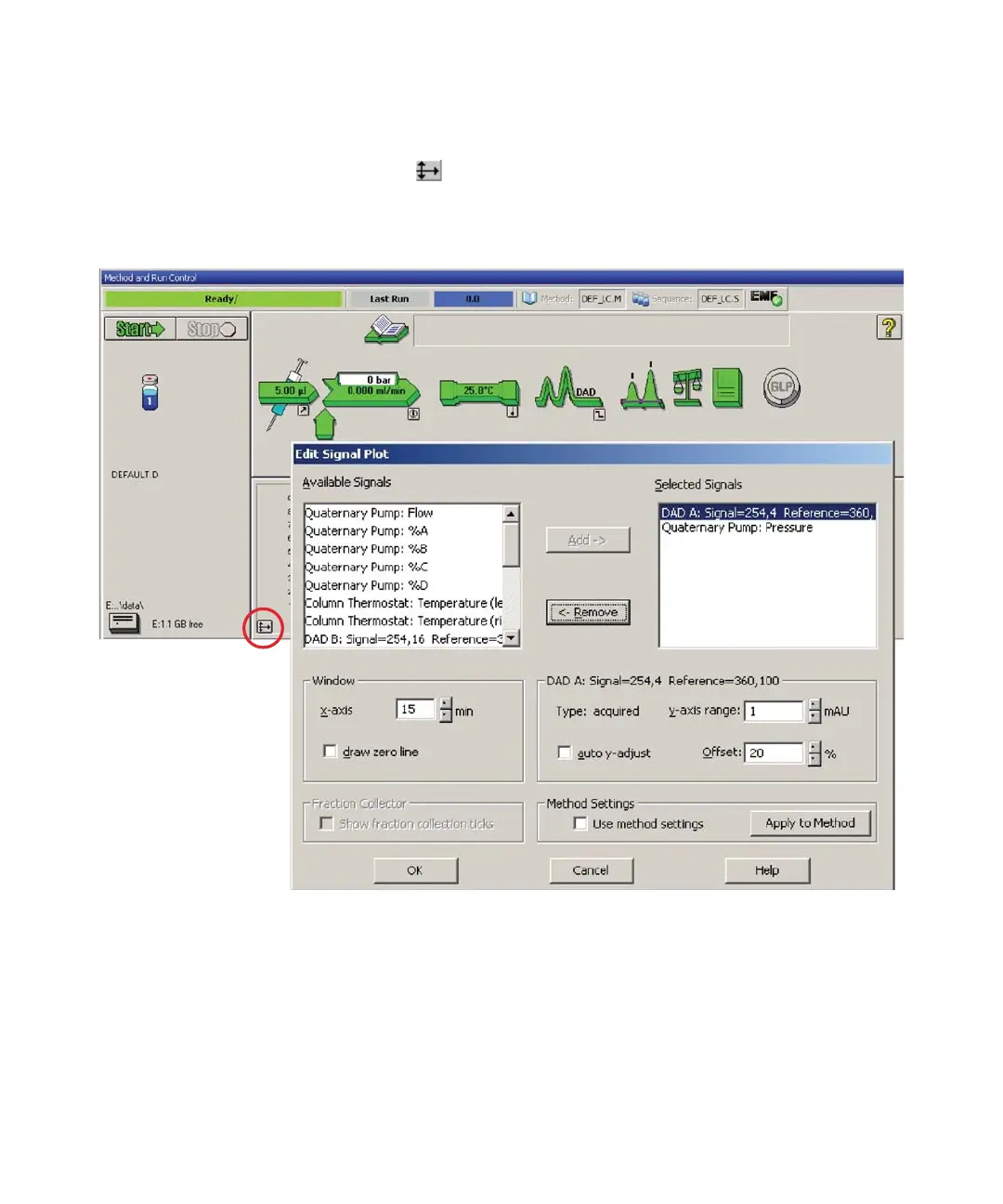

Figure 20 Edit Signal Plot Window
