Agilent Technologies 5977B Series Troubleshooting And Maintenance Guide

Analyzer 7
5977B Series MSD Troubleshooting and Maintenance Manual 193

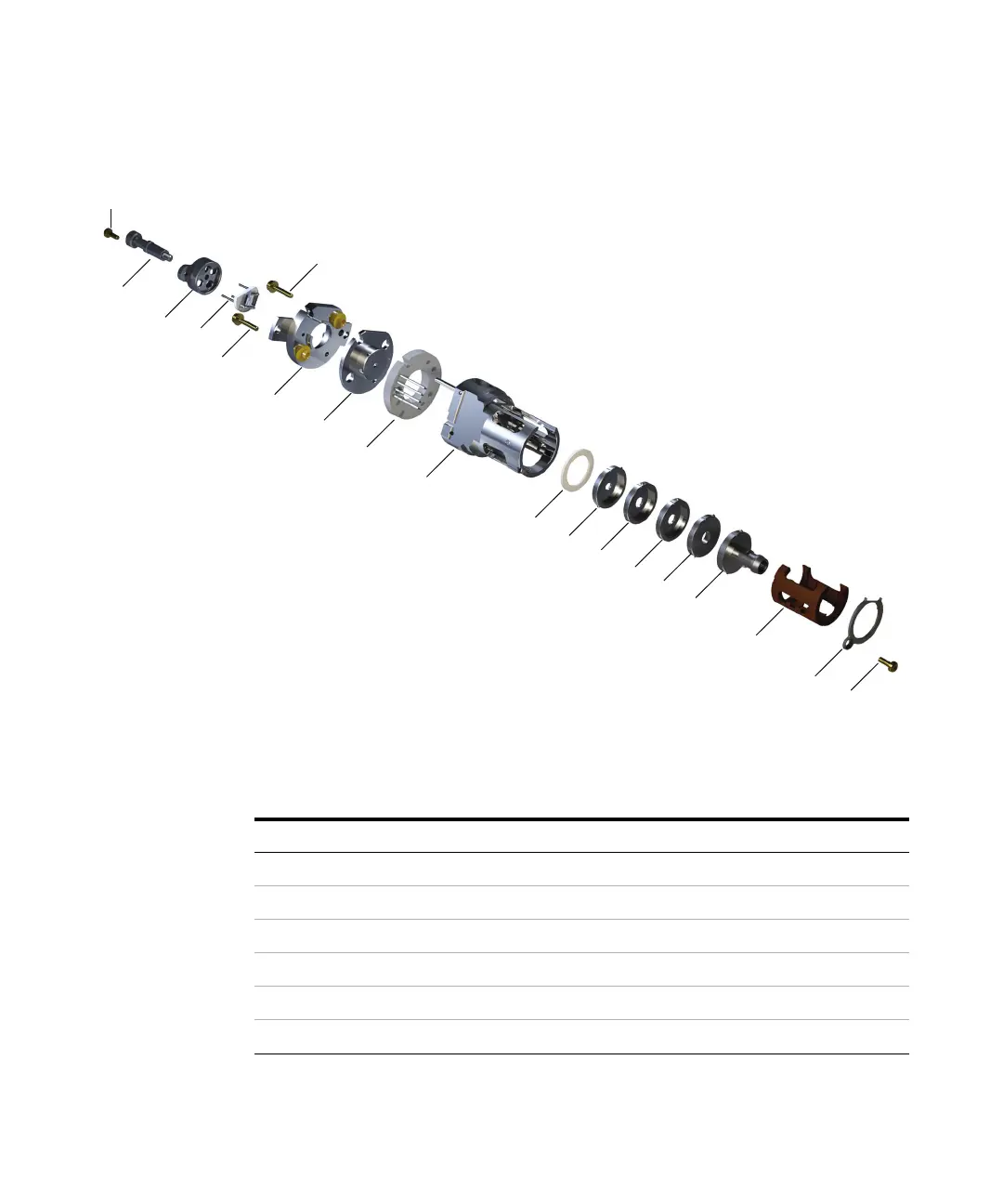

Figure 44 HES ion source
1
2
8
16
17
15
9
4
3
11
10
6
5
7
13
12
14
8
12
Tab le 14 Parts list for HES EI ion source (Figure 44 on page 193)
Item number Item description Part number
1 Source finger grip G7002-20008
2 Filament block G7005-60061
3 Extractor lens (5)
†
, with 3 mm opening G7002-20061
4 Ceramic insulator for extractor G7002-20064
5 Entrance lens (1)
†
G7002-20065
6 Ion focus lens (2)
†
G7002-20068
