Agilent Technologies 5977B Series

Parts 9
5977B Series MSD Troubleshooting and Maintenance Manual 253
Tab le 34 Ferrules
Description Part number
For the GC/MSD interface using a standard column nut
• Blank, graphite-vespel 5181-3308
• 0.3-mm id, 85%/15% for 0.10-mm id columns 5062-3507
• 0.4-mm id, 85%/15%, for 0.20 and 0.25-mm id columns 5062-3508
• 0.5-mm id, 85%/15%, for 0.32-mm id columns 5062-3506
• 0.8-mm id, 85%/15%, for 0.53-mm id columns 5062-3538
For the GC/MSD interface using a self tightening column nut
• Blank, graphite-vespel 5181-3308
• 0.3-mm id, 85%/15% for 0.10-mm id columns 5062-3507
• 0.4-mm id, 85%/15% for 0.0 and 0.25-mm id columns 5062-3508
• 0.5-mm id, 85%/15% for 0.32-mm id columns 5062-3506
• 0.8-mm id, 85%/15% for 0.53-mm id columns 5062-3512

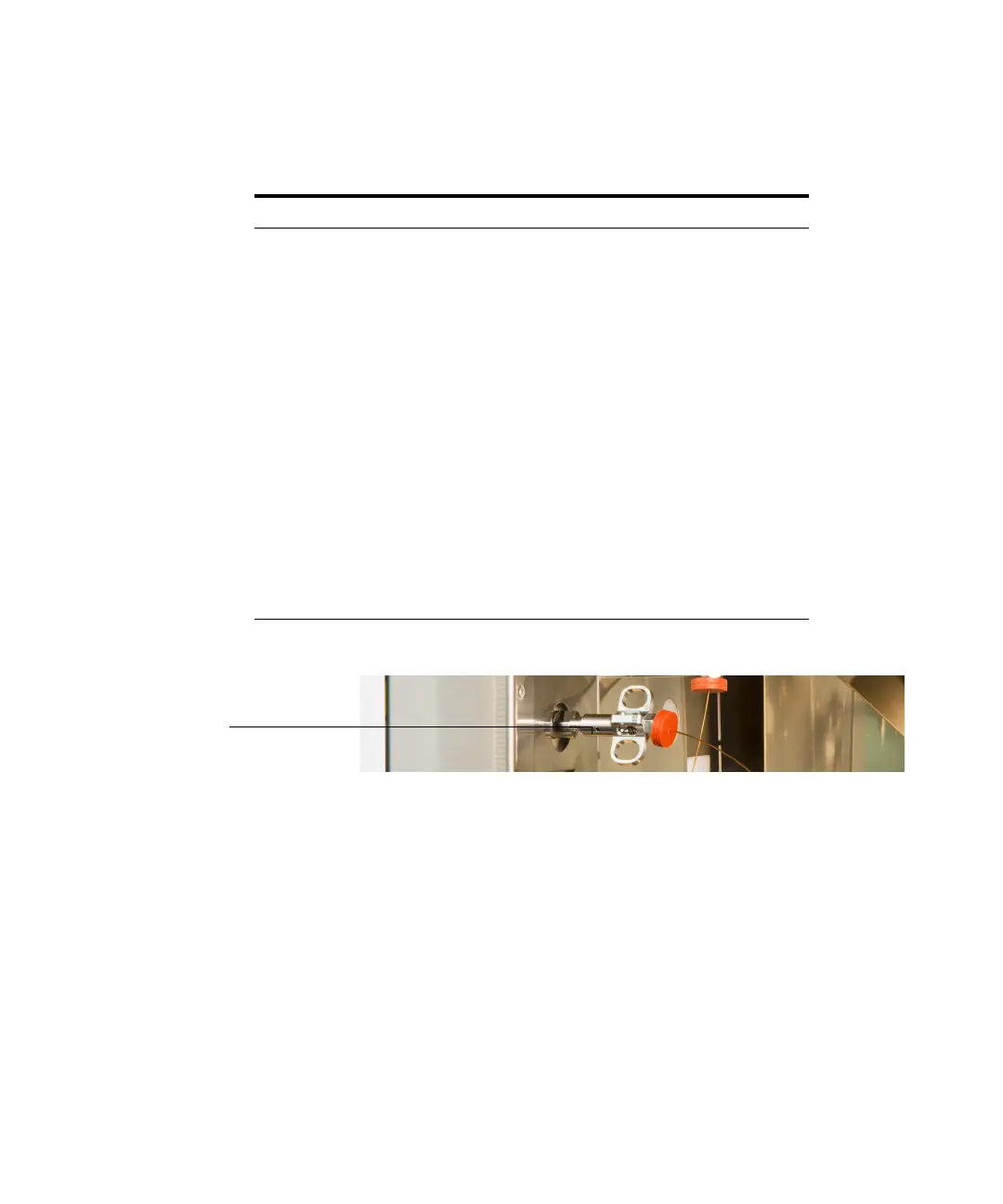

Figure 68 GC/MSD interface with a self tightening column nut
GC/MSD interface with
self-tightening nut
