19 of 24
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
Thermal Conductivity Detector (TCD) 330
Replacement procedures

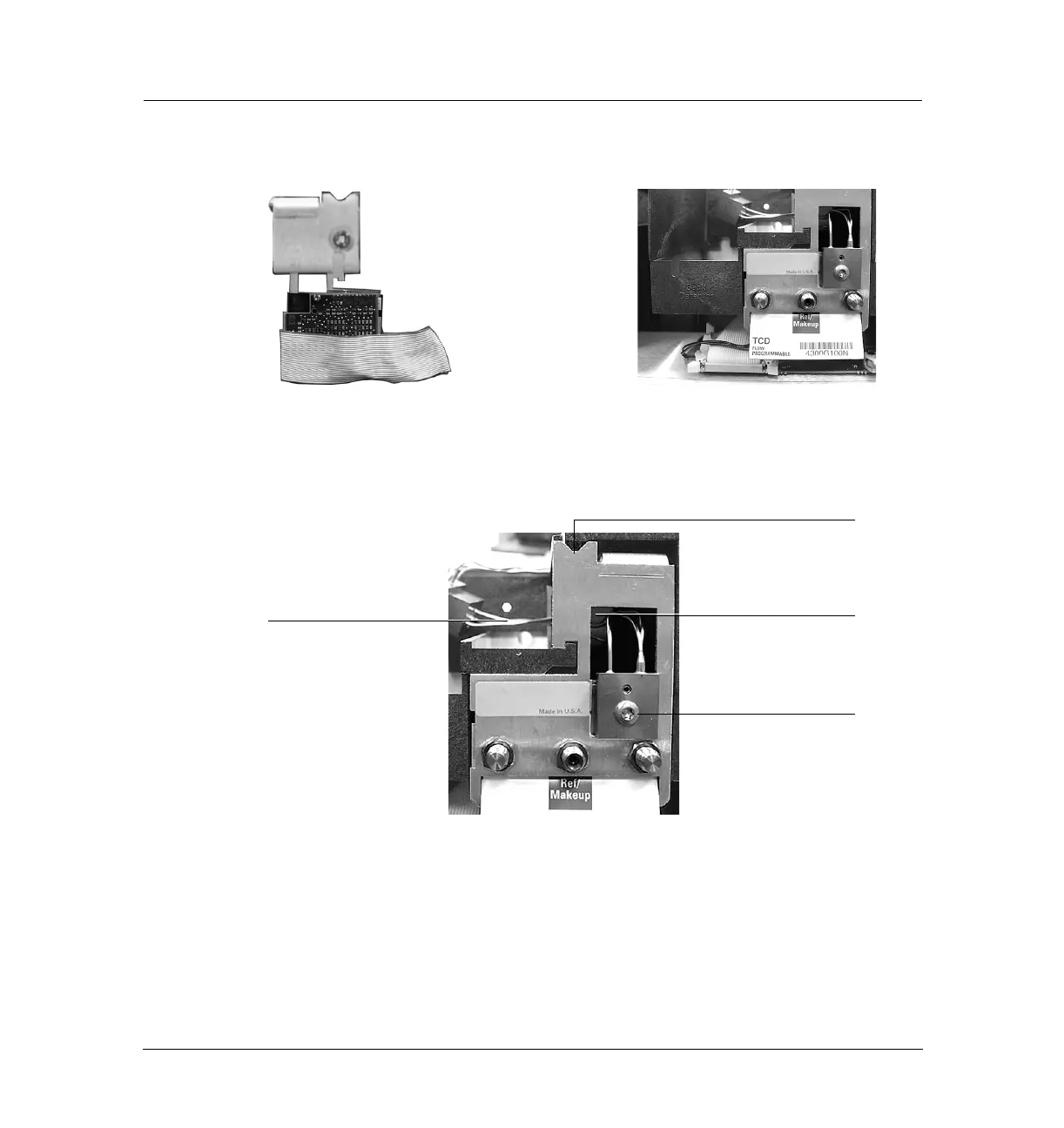

Figure 330-15 Routing the ribbon cable
Figure 330-16 Manifold, after installation
7. Secure the manifold in place using the Torx T-20 screw.
8. Route the gas tubing behind the manifold, over the top of the chassis, and
through the slots as shown in Figure 330-16.
Back view of manifold Manifold installed with cable routed to left
Attach gang fitting
Bracket is flush with
Route tubing along
carrier rails
Check for interference
this path
To Next Page
